Bently Nevada 130539-14: Signal Transmission Architecture in 3500 Series Machinery Protection Loops

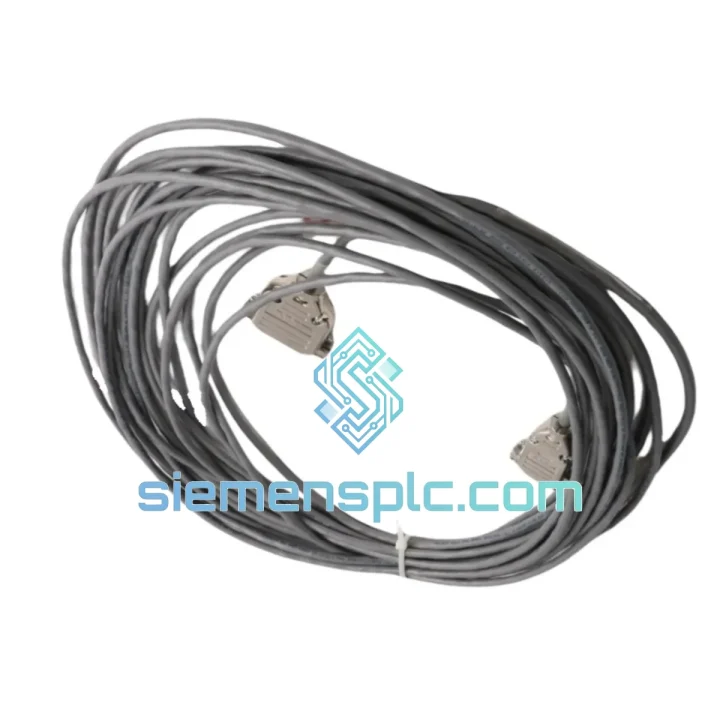

The Bently Nevada 130539-14 is a factory-terminated interconnect extension cable engineered exclusively for the 3500 Series Machinery Protection System. Its function within a protection loop is deceptively simple in description but structurally critical in execution: it carries the raw analog output of a Proximitor sensor — a DC-biased voltage signal proportional to the gap between a proximity probe tip and a rotating shaft — from the field junction point to the rack-mounted I/O module. Any impedance discontinuity, ground loop, or shield break along this path introduces noise that the 3500 monitor cannot distinguish from genuine shaft displacement. The 130539-14 eliminates that risk through OEM-specified conductor geometry, connector metallurgy, and shielding topology.

In a standard eddy-current proximity measurement chain, the Proximitor sensor outputs a signal nominally biased at –24 VDC with a sensitivity of 200 mV/mil (7.87 V/mm). The 130539-14 routes this signal to modules such as the 3500/40M or 3500/42M Proximitor I/O, where it is conditioned, compared against alarm and danger setpoints, and relayed to the system monitor. The cable’s shielded construction maintains the signal-to-noise ratio required for the monitor to resolve shaft displacement changes as small as 0.5 mil (12.7 µm) — the resolution threshold at which early-stage bearing wear and rotor imbalance become detectable before they escalate to a trip event.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 130539-14 operates within a three-component eddy-current measurement chain: proximity probe → extension cable → Proximitor sensor, with the interconnect cable bridging the Proximitor output to the rack I/O. The electrical architecture of this cable addresses three hardware-level failure modes that generic cabling cannot mitigate.

Shield Grounding Topology: The cable employs a single-point shield ground, terminated at the rack end only. This topology prevents the formation of a ground loop between the field-side Proximitor housing ground and the rack chassis ground — a loop that, in environments with high ground potential difference (common in large rotating machinery installations), would inject 50/60 Hz common-mode noise directly into the signal conductor. The 3500 monitor’s differential input stage can reject common-mode noise to a degree, but shield-induced loop currents bypass this rejection mechanism entirely. Single-point grounding eliminates the loop at the source.

Connector Contact Resistance Stability: The OEM multi-pin connectors use gold-plated contacts with a specified mating cycle rating. Contact resistance stability is non-trivial in this application: a 1 Ω increase in series resistance in the signal path shifts the apparent gap reading by approximately 5 mils at standard Proximitor sensitivity — enough to trigger a false alarm or, more dangerously, to mask a genuine shaft displacement event. The 130539-14’s factory-terminated connectors maintain contact resistance within OEM tolerance across the rated service life.

EMC Performance in High-dV/dt Environments: Large rotating machinery installations co-locate the 3500 rack with variable-frequency drives, high-current bus bars, and SCR-based excitation systems — all of which generate broadband electromagnetic interference. The cable’s shielded construction, combined with the controlled impedance of the conductor pair, attenuates capacitively coupled interference that would otherwise appear as high-frequency noise on the proximity signal. The 3500 monitor’s internal filtering handles residual noise, but the cable’s shielding reduces the noise floor to a level where the monitor’s 4 kHz bandwidth can be fully utilized without false trip events.

Mechanical Fatigue Resistance: In turbomachinery installations, cables routed through conduit near bearing housings are subject to continuous low-amplitude vibration transmitted through the structure. The 130539-14’s stranded tinned-copper conductors are specified for fatigue resistance under these conditions, preventing the work-hardening and eventual conductor fracture that solid-conductor cables experience in the same environment.

System Integration Benefits

• Deterministic alarm response: By maintaining signal integrity from Proximitor to I/O module, the cable ensures that the 3500 monitor’s alarm and danger comparators operate on an accurate representation of shaft position, preserving the sub-millisecond trip response time that API 670 mandates for overspeed and high-vibration events.
• Plug-and-play commissioning: Factory-terminated connectors eliminate field crimping, reducing commissioning time per cable run by 30–45 minutes and removing the risk of wiring errors that would require loop calibration to detect.
• Diagnostic transparency: A correctly installed 130539-14 allows the 3500 system’s built-in cable fault detection (open circuit, short circuit, and Proximitor power fault alarms) to function as designed, providing maintenance personnel with unambiguous fault localization rather than ambiguous signal degradation.
• API 670 compliance path: The cable’s OEM specification directly supports the wiring requirements of API 670 5th Edition, Section 6.3, which mandates that all signal cables in a machinery protection system be shielded and routed to minimize interference — a requirement that must be documented in the system’s Factory Acceptance Test (FAT) package.
• Reduced spare-parts complexity: Standardizing on the 130539-14 across a plant’s 3500 rack population eliminates the need to maintain multiple cable variants in the spare-parts inventory, reducing carrying cost and the risk of incorrect cable substitution during emergency maintenance.
• Compatibility with 3500/22M transient data capture: When the 3500/22M Transient Data Interface is installed for startup and coast-down data acquisition, the cable’s bandwidth characteristics ensure that the high-frequency content of the proximity signal (up to 4 kHz) is preserved, enabling accurate Bode plot and polar plot generation for rotor dynamic analysis.
• Long-term availability assurance: As an OEM-specified component with a defined part number, the 130539-14 can be specified in plant maintenance procedures and procurement contracts with a traceable part number, avoiding the substitution ambiguity that arises with generic cabling.
• Hazardous-area system compatibility: The cable’s passive construction makes it compatible with intrinsically safe (IS) and non-incendive (NI) circuit designs when used with appropriate IS barriers or Zener barriers, supporting installations in IEC 60079 Zone 1 and Zone 2 classified areas.

Quality Assurance & Global Logistics

Every 130539-14 unit supplied by siemensplc.com is sourced through verified OEM and authorized-distributor channels. Bently Nevada (Baker Hughes) maintains strict supply chain controls on 3500 Series components; units offered through unauthorized channels frequently exhibit counterfeit connector housings with non-OEM contact materials that fail within 12–18 months of service. Our procurement process includes documentation review (manufacturer date codes, lot traceability) and physical inspection against OEM dimensional drawings prior to stock acceptance.

Pre-shipment checks performed on each unit include connector pin-out continuity verification, shield continuity end-to-end, and visual inspection of connector locking mechanisms. Units are packed in anti-static bags with foam cushioning inside double-wall cartons, with lot documentation enclosed.

Shipments originate from our warehouse in Xiamen, China. Standard export documentation — commercial invoice, packing list, and certificate of origin — is prepared for all international orders. Expedited dispatch via DHL Express, FedEx International Priority, and UPS Worldwide Express is available, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. In-stock units ship within 24 hours of order confirmation. The 12-month warranty covers manufacturing defects in materials and workmanship; field damage resulting from incorrect installation is assessed case-by-case with full technical support provided.
