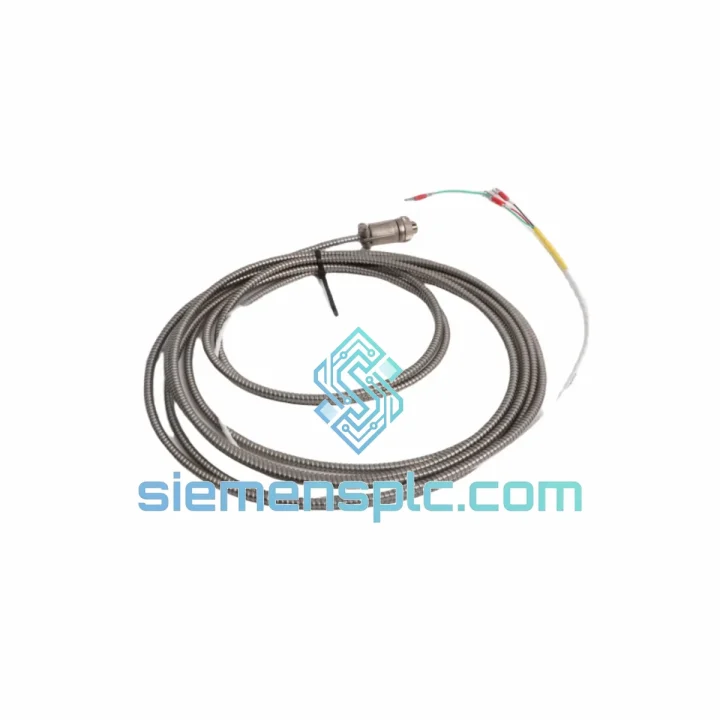

BENTLY NEVADA 16710-06 Proximity Sensor

BENTLY NEVADA 16710-06 — Stop the Clock on Your Downtime. Ship Today from Xiamen.

Every hour a critical rotating machine sits idle costs real money — lost production, penalty clauses, emergency labor. The BENTLY NEVADA 16710-06 is a 3300 XL Series 8 mm eddy-current proximity sensor, and when yours fails, you need an exact OEM replacement in hand before the next shift. We stock it. We ship it. DHL Express from Xiamen, China — door to your plant in 2–5 business days, anywhere on the planet.

This is not a generic substitute. This is the original BENTLY NEVADA 16710-06 — same part number, same calibration curve, same 200 mV/mil sensitivity, same hermetically sealed stainless housing. Drop it into your 3300 XL loop, torque the lock nut, verify gap voltage, and your machine protection system is back online. No recalibration. No surprises.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Symptom: Monitor shows “Not OK” or gap voltage out of range (typical alarm: <−17 VDC or >−1 VDC)

Before condemning the sensor, isolate the fault systematically. Disconnect the extension cable at the Proximitor driver and measure the sensor’s static gap voltage directly. If the reading is within the −10 to −18 VDC window at the nominal 50 mil (1.27 mm) gap, the sensor is functional — suspect the extension cable or driver instead. If the voltage is flat (0 VDC) or rail-high, the sensor coil is open or shorted. Replace the 16710-06.

Step-by-step replacement procedure:

1. Isolate the machine — confirm zero energy state per your site LOTO procedure. Do not attempt sensor removal on a spinning shaft.
2. Record the original gap — note the existing probe tip-to-shaft gap (typically 50 mil / 1.27 mm for 8 mm sensors). Use a feeler gauge or the Proximitor output voltage as reference before removal.
3. Remove the lock nut and probe holder — back the sensor out carefully. Inspect the probe tip for impact damage or shaft rub marks, which indicate a secondary mechanical problem that must be resolved before reinstallation.
4. Install the 16710-06 replacement — thread in by hand first. Do not cross-thread. The stainless housing is precision-machined; use the correct thread size (typically 3/8-24 UNF or M10×1 depending on probe holder).
5. Set the gap — adjust to the nominal gap specified on your system drawing (usually 50 mil ±5 mil). Verify with the Proximitor output: target −10.0 VDC ±0.5 VDC at nominal gap with a 3300 XL driver and AISI 4140 target.
6. Torque the lock nut — per BENTLY NEVADA installation manual. Over-torquing shifts the gap; under-torquing allows vibration-induced drift.
7. Verify system response — bump the shaft by hand (if accessible) or observe the monitor during slow-roll. Confirm the 1× vibration vector is plausible and the gap channel is in the OK state.
8. Clear the trip latch — on the 3500 rack, navigate to the monitor module and reset the latched trip before returning the machine to service.

Common fault codes on the 3500/42M when paired with a failed 16710-06:

• NOT OK (NOK) LED solid — gap out of linear range; check sensor installation gap first.
• ALERT / DANGER trip on gap channel — shaft position has shifted or sensor has failed; compare both X and Y probes to determine if it is a shaft event or a sensor event.
• Intermittent NOK — suspect the integral cable or connector; flex the cable near the connector while monitoring the gap voltage. A dropout confirms cable failure, not sensor failure.

Configuration note — 16710-06 vs 16710-04: The suffix denotes integral cable length only (06 = 6 ft, 04 = 4 ft). Electrical performance is identical. If your system drawing specifies a 16710-04 but you install a 16710-06, the extra cable length must be coiled and secured away from rotating parts and EMI sources. The Proximitor calibration does not change.

Reliability in Harsh Conditions

The 16710-06 was designed for environments that destroy lesser sensors. The hermetically sealed stainless steel housing prevents ingress of steam, lube oil mist, and condensation — the three most common killers of proximity sensors in turbine bearing pedestals. The integral armored cable resists mechanical abrasion from vibrating conduit and repeated maintenance access.

At the sensor tip, the epoxy-encapsulated coil assembly maintains calibration stability from −35 °C cold-start conditions in outdoor compressor stations to +177 °C continuous service in steam turbine bearing housings. That is not a marketing claim — it is the published operating envelope, and it is why API 670 machinery protection systems have specified this sensor family for decades.

Vibration immunity is inherent in the non-contact measurement principle: there are no moving parts, no wear surfaces, and no mechanical fatigue mechanisms. The sensor that monitors your shaft vibration is itself immune to the vibration it measures. Mean time between failures in continuous service is measured in years, not months — which is why a sudden failure almost always points to a mechanical event (shaft rub, probe impact) or a cable/connector fault rather than the sensor coil itself. When the sensor does fail, the 16710-06 is a direct drop-in replacement with no system reconfiguration required.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the country’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is deliberate: it puts us within reach of the world’s fastest express courier networks.

Standard export process for the BENTLY NEVADA 16710-06:

• Order confirmation: We confirm stock availability and issue a proforma invoice within 2 hours of your inquiry during business hours (CST 09:00–18:00).
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS Code: 9031.80 (precision measuring instruments). No ITAR restrictions apply to this sensor.
• Packaging: Original BENTLY NEVADA packaging where available. Otherwise, anti-static foam insert inside a double-wall carton, clearly labeled with part number and serial number.
• Courier dispatch: DHL Express or FedEx International Priority — your choice. Both services offer door-to-door tracking and customs clearance in most destinations.
• Transit times (estimated): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | South America / Africa 4–6 days.
• Customs support: We provide accurate declared values and commodity descriptions to minimize customs hold risk. For destinations with import licensing requirements (e.g., India DGFT, Brazil SISCOMEX), we advise in advance.

For plant shutdowns with a hard restart deadline, contact us via WhatsApp for real-time coordination. We have arranged same-day dispatch for emergency orders received before 14:00 CST.
