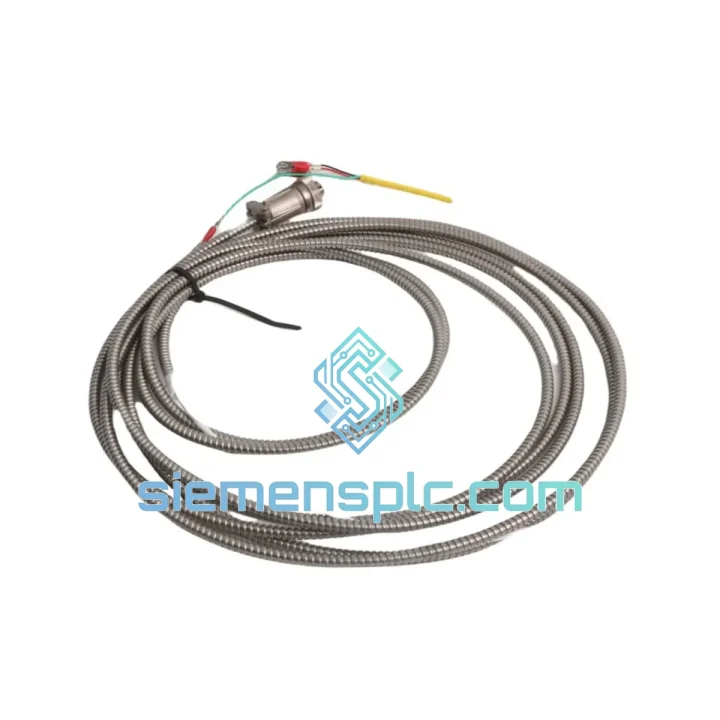

Bently Nevada 16710-23 Interconnect Cable – 3500 Series

Bently Nevada 16710-23 Interconnect Cable – Signal Backbone of the 3500 Series Machinery Protection Loop

Within a continuous machinery protection architecture, the interconnect cable is not a passive conductor — it is the deterministic signal path that carries low-level transducer outputs across the rack backplane boundary into the monitor module’s analog front-end. The Bently Nevada 16710-23 Interconnect Cable is the OEM-specified assembly for the 3500 Series platform, engineered to maintain signal fidelity across the full operating envelope of rotating machinery environments: high-frequency vibration floors, thermally cycled enclosures, and electrically noisy plant infrastructure.

The 3500 Series Machinery Protection System, developed by Bently Nevada (a Baker Hughes company), is the global reference implementation for API 670-compliant continuous vibration monitoring. It is deployed across gas turbines, steam turbines, centrifugal compressors, and critical pump trains in oil & gas, power generation, and petrochemical facilities. Within this architecture, the 16710-23 cable provides the physical interconnect layer between field-mounted transducers or proximitor housings and the corresponding monitor modules seated in the 3500 rack. Signal degradation at this interface — whether from impedance mismatch, shield discontinuity, or connector oxidation — directly compromises the monitor’s ability to resolve proximity probe gap voltage, velocity RMS, or acceleration peak values with the accuracy required for alarm and trip setpoint discrimination.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 16710-23 operates at the analog signal boundary of the 3500 Series monitor architecture. Understanding its hardware design logic requires examining three distinct engineering domains:

1. Shield Topology and Ground Reference Integrity
The cable employs a composite shield — an inner foil layer bonded to an outer braided shield — with a dedicated drain wire. This dual-layer construction achieves shield coverage exceeding 95%, which is the threshold required to suppress common-mode interference in the 10 Hz–10 kHz frequency band relevant to machinery vibration signatures. The drain wire is terminated at a single point at the rack-end connector, establishing a defined ground reference that prevents shield current loops. In installations where the field end is grounded independently (e.g., at a proximitor housing), the shield is floated at the field connector to avoid ground potential difference injection into the signal path — a design discipline that the 16710-23 connector keying enforces mechanically.

2. Connector Keying and Pin Assignment Integrity
The OEM connector body is mechanically keyed to accept insertion only in the correct orientation, eliminating the possibility of pin-to-pin reversal during maintenance replacement. Pin assignments carry DC bias voltage (typically -24 VDC for proximity probe excitation), signal return, and shield drain on separate conductors with defined spacing to maintain inter-conductor capacitance within the monitor module’s input filter design parameters. Deviation from OEM pin geometry — as occurs with non-specified aftermarket cables — introduces parasitic capacitance that rolls off the high-frequency response of the proximity measurement channel, degrading the monitor’s ability to resolve sub-synchronous instability events below 0.5× running speed.

3. Mechanical Strain Relief and Vibration Fatigue Design
The cable assembly incorporates an overmolded strain relief boot at both connector ends. In rotating machinery environments, the cable routing path is subject to continuous low-amplitude vibration transmitted through the rack enclosure structure. Without adequate strain relief, conductor fatigue fractures develop at the solder joint or crimp termination within the connector body — a failure mode that presents as intermittent signal dropout rather than a hard open circuit, making it difficult to detect through standard continuity checks. The 16710-23’s overmold geometry distributes bending stress across a defined radius, extending fatigue life to match the 3500 Series rack’s design service interval.

System Integration Benefits

• Zero-compromise signal fidelity: OEM-matched impedance and capacitance characteristics preserve the full dynamic range of the 3500 Series monitor’s analog input stage, ensuring alarm and trip setpoints are evaluated against accurate transducer data rather than cable-induced artifacts.
• Deterministic replacement cycle: Standardized OEM part number enables maintenance planners to specify the 16710-23 in preventive maintenance schedules with defined replacement intervals, eliminating ad-hoc sourcing delays during planned outages.
• EMC compliance preservation: Replacing a degraded cable with the OEM-specified 16710-23 maintains the 3500 rack system’s CE-marked EMC performance envelope. Non-OEM cables with inadequate shielding can introduce conducted emissions that affect adjacent monitor channels within the same rack.
• Plug-and-play installation: Keyed connectors and labeled pin assignments reduce installation time during maintenance windows. No field wiring, no termination blocks — the assembly installs in under five minutes per connection point.
• Diagnostic transparency: A correctly functioning 16710-23 allows the 3500 monitor to report accurate transducer OK (TOK) status. A degraded cable that introduces DC offset or signal noise can generate false TOK failures, triggering unnecessary shutdowns or masking genuine transducer faults.
• Multi-channel rack compatibility: The 16710-23 is compatible across multiple 3500 Series monitor module types — proximity/seismic, velocity, acceleration — providing a single cable part number that simplifies spare parts inventory management for multi-channel rack installations.
• Long-term availability: As an OEM-catalogued part number, the 16710-23 is supported through Bently Nevada’s global distribution network and authorized reseller channels, ensuring availability for the full operational life of installed 3500 Series racks.
• Reduced diagnostic ambiguity: When troubleshooting a 3500 Series channel alarm, substituting a known-good 16710-23 is the fastest method to isolate cable-path faults from transducer or monitor module faults — a diagnostic step explicitly recommended in Bently Nevada field service procedures.
• Thermal cycling resilience: The cable jacket and connector materials are rated for the thermal cycling profile of outdoor and semi-outdoor machinery enclosures, maintaining electrical performance across seasonal temperature swings without jacket cracking or connector body distortion.

Quality Assurance & Global Logistics

Every Bently Nevada 16710-23 unit supplied by siemensplc.com is sourced through traceable supply channels and undergoes a structured pre-shipment inspection protocol:

• Part number verification: OEM label, connector body markings, and cable assembly geometry are cross-referenced against the 16710-23 product specification before acceptance into inventory.
• Electrical continuity check: Each conductor and shield drain wire is verified for continuity and insulation resistance ≥100 MΩ at 500 VDC prior to shipment.
• Connector integrity inspection: Pin seating, locking mechanism engagement, and overmold adhesion are inspected under magnification. Units with connector body cracks, pin corrosion, or shield braid fraying are rejected.
• Anti-static packaging: Cable assemblies are coiled to OEM-specified minimum bend radius, sealed in anti-static polyethylene bags, and packed in rigid-wall cartons with foam cushioning to prevent connector damage in transit.
• 12-month warranty: All genuine OEM units carry a 12-month warranty from the date of shipment, covering manufacturing defects and electrical performance failures under normal operating conditions.

Shipments originate from Xiamen, China, with access to DHL Express, FedEx International Priority, and UPS Worldwide services. Standard export documentation — commercial invoice, packing list, HS code declaration — is included with every shipment. Expedited customs clearance support is available for urgent plant maintenance requirements. Most in-stock units are dispatched within 2–3 business days of order confirmation.
