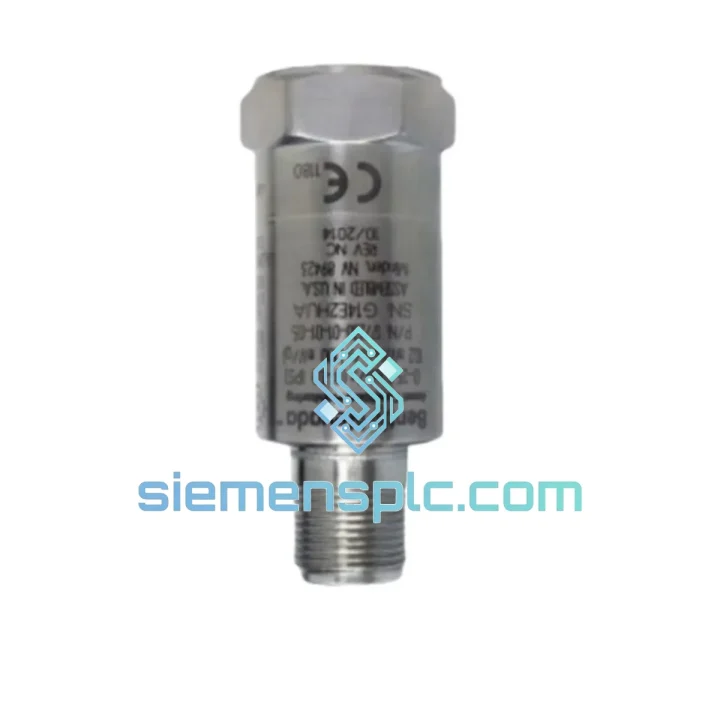

Bently Nevada 190501-15-00-04 Seismic Velocity Transducer – Velomitor CT

Bently Nevada 190501-15-00-04 Velomitor CT — Absolute Velocity Measurement for Critical Rotating Machinery Protection

The Bently Nevada 190501-15-00-04 is a solid-state seismic velocity transducer within the Velomitor CT platform, engineered specifically for casing and bearing housing vibration measurement in API 670-governed machinery protection systems. Unlike traditional geophone-based velocity probes that rely on a suspended coil-and-magnet assembly, the Velomitor CT employs an integrated piezoelectric accelerometer with onboard signal integration circuitry — converting raw acceleration data into a calibrated velocity output signal in real time. This architecture eliminates the mechanical resonance artifacts and orientation sensitivity that limit conventional moving-coil sensors, delivering a flat, broadband frequency response from 2 Hz to 1,000 Hz with a nominal sensitivity of 100 mV/in/s (3.937 mV/mm/s).

The 15-foot (4.57 m) integral cable variant — designated by the “-15” suffix in the part number — is the standard field-deployment configuration for installations where the transducer mounting point is remote from the nearest junction box or I/O terminal strip. The “-00-04” suffix confirms the standard output configuration with a 2-pin MIL-C-5015 style connector, compatible with Bently Nevada 3500 Series I/O module wiring harnesses without adapter hardware.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The Velomitor CT’s internal signal chain begins at a shear-mode piezoelectric sensing element bonded to a seismic mass. Shear-mode construction is deliberately chosen over compression-mode designs: it provides inherent rejection of thermally induced base strain — a critical advantage when the transducer is mounted on a machine casing subject to thermal cycling between cold startup and full-load operating temperature. The charge output from the piezoelectric element feeds into a low-noise charge amplifier stage, followed by an analog integrator network that converts acceleration (m/s²) to velocity (m/s) in the frequency domain. The integrator’s high-pass corner frequency is set at 2 Hz, establishing the lower bound of the usable measurement range and preventing DC drift from saturating the output stage.

The output driver is a differential voltage amplifier configured for ±5 V full-scale output. Differential signaling is not incidental — it is a deliberate EMC design decision. In industrial plant environments, cable runs of 15 feet or more pass through cable trays shared with motor drive power cables, solenoid wiring, and high-current bus bars. Common-mode noise induced on both conductors of a differential pair is rejected at the 3500 monitor’s differential input receiver, with common-mode rejection ratios (CMRR) typically exceeding 60 dB at 50/60 Hz. This means a 1 V common-mode interference signal appears as less than 1 mV at the monitor’s measurement input — well below the noise floor of the velocity measurement channel.

The hermetically sealed 316L stainless steel housing serves a dual function: mechanical protection and EMC shielding. The housing acts as a Faraday cage around the internal electronics, attenuating radiated RF interference from nearby variable-frequency drives (VFDs) and wireless transmitters. The integral armored cable provides a continuous shield from the transducer body to the connector, with the shield terminated at the monitor end only — a single-point grounding topology that prevents shield current loops from introducing 50/60 Hz hum into the signal path.

Thermal compensation is embedded in the analog signal chain. The sensitivity coefficient of the piezoelectric element has a known temperature dependence; the Velomitor CT’s internal compensation network applies a correction factor across the –40°C to +121°C operating range, maintaining sensitivity within ±5% of nominal across the full thermal envelope. This is particularly relevant for turbine casing installations where the transducer body temperature can vary by 80°C or more between cold standby and full-load operation.

System Integration Benefits

• Direct 3500 Series Compatibility: The 190501-15-00-04 connects directly to Bently Nevada 3500/42M Velocity Monitor and 3500/45 Position Monitor I/O modules. No signal conditioning adapters, no impedance matching networks — the differential output is natively compatible with the 3500 monitor’s input receiver specification, preserving measurement accuracy from transducer to relay output.
• Deterministic Frequency Response: The flat ±3 dB passband from 2 Hz to 1,000 Hz covers the fundamental vibration frequencies of all common rotating machinery — from 120 RPM (2 Hz) slow-speed reciprocating compressors to 60,000 RPM (1,000 Hz) high-speed expanders — within a single sensor, eliminating the need for frequency-range-specific sensor selection.
• Solid-State Reliability: The absence of moving mechanical components — no coil, no magnet, no suspension spring — removes the primary failure mode of conventional geophone sensors. MTBF data for solid-state piezoelectric transducers in continuous industrial service consistently exceeds 10 years, reducing planned maintenance intervals and unplanned replacement events.
• Orientation Independence: The Velomitor CT’s solid-state design operates correctly in any mounting orientation — horizontal, vertical, or inverted — without sensitivity variation. Traditional moving-coil sensors exhibit orientation-dependent sensitivity shifts due to gravitational loading on the suspension mechanism.
• Diagnostic Transparency: The 3500/42M monitor processes the velocity signal and provides channel-level OK status, alert, and danger relay outputs with configurable setpoints. The differential signal architecture ensures that cable faults (open circuit, short circuit) produce a predictable out-of-range output that the monitor can detect and flag as a transducer fault — supporting fail-safe system behavior per API 670 requirements.
• Reduced Wiring Infrastructure Cost: The 15-foot integral cable eliminates the need for a separate field-mounted junction box in most standard machinery installations. The armored cable provides mechanical protection without requiring conduit in many plant environments, reducing installation labor and material cost.
• Thermal Stability in Continuous Service: The onboard thermal compensation network maintains calibrated sensitivity across the full operating temperature range, eliminating the need for periodic field recalibration due to temperature-induced sensitivity drift — a documented maintenance burden with uncompensated piezoelectric sensors.
• API 670 Compliance Assurance: The 190501-15-00-04 is designed and tested to meet API 670 Fifth Edition requirements for machinery protection system sensors. This compliance status simplifies the engineering documentation process for new installations and replacement projects in oil & gas, petrochemical, and power generation facilities where API 670 is a contractual or regulatory requirement.
