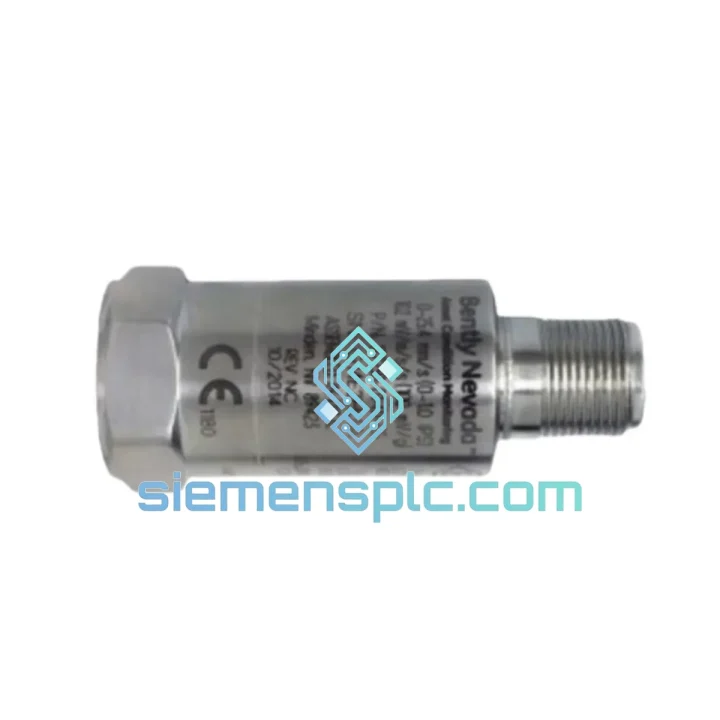

Bently Nevada 190501-23-00-CN Velocity Transducer

190501-23-00-CN Down? Every Minute of Downtime Costs You — Get It Back Online Fast

Your turbine is tripped. The 3500 rack is throwing a Not OK on the seismic channel. Maintenance is standing by. You’ve already pulled the Velomitor CT and confirmed it’s dead — now you need a replacement on-site before the next shift or the production loss compounds into a number nobody wants to explain to management.

That’s exactly the scenario we stock for. The Bently Nevada 190501-23-00-CN is on our shelf in Xiamen right now. We ship DHL Express same day on orders confirmed before 15:00 CST. Most destinations in Southeast Asia, the Middle East, and Europe receive within 3–5 business days. No waiting on factory lead times. No broker runaround.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here are the failure modes I see most often with the 190501-23-00-CN and what to watch for during swap-out:

1. Confirming the transducer is actually the fault — not the cable or monitor card. Before pulling the Velomitor CT, disconnect the field cable at the JB and measure loop current with a clamp meter. A healthy unit at rest should read 4 mA ±0.2 mA. If you’re reading open-circuit or a fixed 20 mA regardless of vibration, the transducer’s internal electronics have failed. If current is erratic, check the cable shield continuity first — a broken shield on a long cable run will mimic a dead transducer on the 3500 rack display.

2. Mounting thread and torque. The 190501-23-00-CN uses a 1/4-28 UNF stud mount. Torque to 2.8 N·m (25 in-lb) — no more. Over-torquing cracks the internal piezo stack and you’ll get a brand-new unit reading flat. Use thread-locking compound only if the OEM drawing specifies it; otherwise leave it dry and safety-wire if vibration is severe.

3. Loop wiring polarity. The 4–20 mA output is polarity-sensitive. Pin A is positive (+), Pin B is negative (−) on the MIL-C-5015 connector. Reversed polarity won’t damage the unit but the 3500/42M will report a channel fault immediately. Double-check your field wiring against the original loop drawing before powering up.

4. 3500 rack channel configuration. After physical installation, go into System 1 or the rack keypad and verify the channel is configured for Seismic Velocity, 4–20 mA, 100 mV/in/s. If a previous tech swapped in a different transducer type and changed the channel config, your new 190501-23-00-CN will alarm immediately even though it’s working perfectly. Reset the full-scale and alert setpoints to match the original machine train documentation.

5. Common fault codes on the 3500/42M after replacement:

• Not OK (NOK) — Channel Fault: Usually wiring polarity or open loop. Check continuity end-to-end.
• Danger alarm on startup: Transducer picking up startup transient. Temporarily bypass the danger relay during coast-up if your SIS allows it, then re-enable at operating speed.
• Flat 4 mA reading at speed: Confirm mounting — a loose stud mount decouples the transducer from the casing and kills sensitivity.
• Intermittent spikes: Cable shield grounded at both ends. Lift the shield at the rack end and ground only at the field JB.

Reliability in Harsh Conditions

The Velomitor CT was engineered for environments that destroy lesser sensors. The 316L stainless steel housing is rated IP67 — it survives direct wash-down, condensation cycles, and the kind of oil mist you find around compressor trains. The internal piezoelectric stack is hermetically sealed; there are no moving parts to wear out and no MEMS die to crack under shock loads.

Operating temperature range of −40 °C to +121 °C covers everything from outdoor installations in northern climates to steam turbine bearing pedestals where ambient temperatures routinely exceed 80 °C. The 4–20 mA current loop output is inherently immune to the voltage noise that plagues voltage-output sensors on long cable runs through cable trays shared with motor drives.

Vibration resistance of the unit itself exceeds 50 g broadband — it won’t self-destruct from the very phenomenon it’s measuring. We’ve seen these units run continuously for 8–12 years in petrochemical service without calibration drift outside tolerance. When one does fail, it fails hard and obvious, not gradually — which is exactly what you want in a safety-instrumented monitoring loop.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian — one of China’s primary export ports with direct DHL Express, FedEx International Priority, and UPS Worldwide Express connections. Here’s how a typical urgent order moves:

• Order confirmed before 15:00 CST: Packed, documented, and handed to carrier same day.
• Day 1–2: Clears Xiamen customs export. DHL tracking number issued within 4 hours of pickup.
• Day 2–3: Arrives at destination country hub (Singapore, Dubai, Frankfurt, Los Angeles).
• Day 3–5: Final delivery to your plant gate, depending on local customs clearance speed.

We prepare a full commercial invoice with correct HS code (8543.70 for electronic transducers), country of origin documentation, and packing list formatted for your customs broker. For customers in countries with import duty exemptions on industrial instrumentation, we can provide a certificate of origin on request. We’ve shipped to refineries in Saudi Arabia, power plants in Vietnam, paper mills in Indonesia, and automotive plants in Mexico — the paperwork is never the bottleneck on our end.

For orders requiring air freight consolidation or special handling (e.g., ATEX-certified units requiring dangerous goods documentation), contact us 24 hours in advance and we’ll coordinate accordingly.
