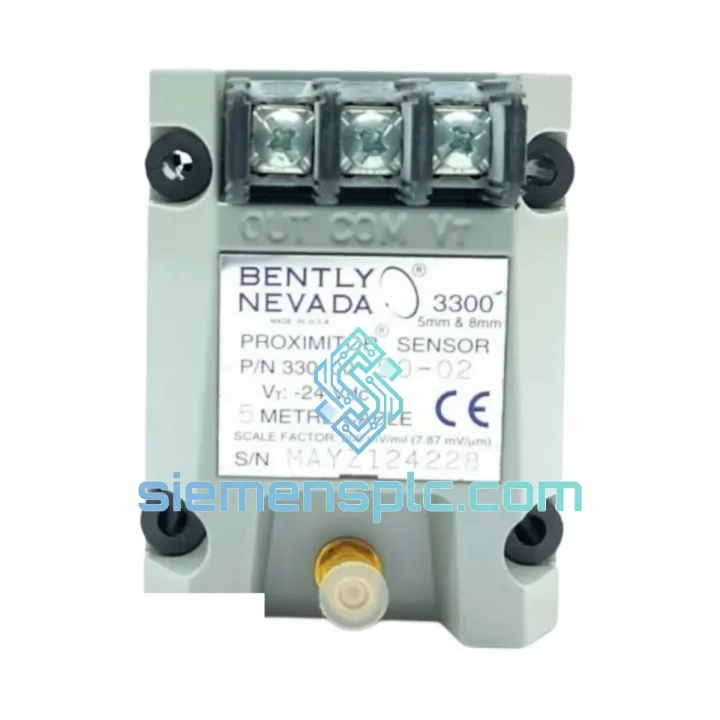

Bently Nevada 330100-50-02 Proximity Sensor – 3300 XL Series

Bently Nevada 330100-50-02: 8mm Eddy-Current Proximitor Sensor for Critical Rotating Machinery Protection

The Bently Nevada 330100-50-02 is an 8 mm eddy-current Proximitor® Sensor engineered for non-contact, continuous measurement of shaft radial vibration, axial position, and eccentricity in high-speed rotating machinery. As a primary field element within the 3300 XL Series measurement chain, this sensor converts mechanical displacement into a proportional DC voltage signal at a calibrated scale factor of 7.87 V/mm (200 mV/mil), feeding directly into compatible 3300 XL drivers and 3500 Series rack monitors. Its deployment spans gas turbines, steam turbines, centrifugal compressors, boiler feed pumps, and expanders in oil & gas, power generation, and petrochemical facilities where API 670 compliance is mandatory.

The integral 5.0 m armored coaxial cable eliminates a field-connection point between probe body and driver, reducing signal degradation risk in high-vibration, high-temperature environments. The probe tip diameter of 8 mm defines the eddy-current field geometry, establishing a linear measurement range of 0.25 mm to 2.25 mm against AISI 4140 steel targets — the standard shaft material in turbomachinery. Frequency response extends from DC to 10,000 Hz, capturing both slow-roll runout at startup and high-frequency sub-synchronous instabilities during full-speed operation.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330100-50-02 operates on the Lenz’s law induction principle: a high-frequency oscillator within the driver module (typically 1.0 MHz carrier) drives an alternating magnetic field through the probe coil wound at the 8 mm tip. When a conductive target enters the field, eddy currents are induced on the target surface, loading the oscillator circuit and reducing coil impedance. The driver demodulates this impedance change into a DC voltage proportional to the gap distance between probe face and shaft surface.

The 8 mm tip geometry produces a field penetration depth of approximately 0.5 mm into the target material, making the sensor insensitive to sub-surface metallurgical variations while remaining highly responsive to surface displacement. The armored coaxial cable construction — with a braided shield bonded at both the probe body and driver input — provides a continuous Faraday enclosure across the full 5.0 m signal path. This architecture suppresses capacitively coupled interference from adjacent power cables and motor drives operating at switching frequencies up to 20 kHz, a critical requirement in switchgear-dense turbine control rooms.

The probe body is machined from 316 stainless steel with a PEEK (polyether ether ketone) tip insert, combining corrosion resistance with a non-conductive front face that prevents eddy-current shorting through the probe housing itself. The integral cable strain relief is rated for continuous flexure at ±15° over 10⁷ cycles, addressing the mechanical fatigue risk at the probe-cable junction in high-vibration bearing housings. The overall EMC design conforms to IEC 61000-4-3 (radiated immunity) and IEC 61000-4-6 (conducted immunity), qualifying the sensor for installation in environments with radiated field strengths up to 10 V/m.

System Integration Benefits

• Deterministic DC-coupled output: The –1 VDC to –17 VDC output range interfaces directly with 3500 Series monitor input cards without signal conditioning, eliminating A/D conversion latency and preserving sub-microsecond timing accuracy for phase-referenced vibration analysis.
• Calibrated measurement chain traceability: Factory calibration at 7.87 V/mm is traceable to NIST standards, allowing direct substitution into existing 3500/40M or 3500/42M monitor configurations without field recalibration or scale-factor adjustment.
• API 670 fourth-edition compliance: The sensor meets all electrical and mechanical requirements of API 670 for radial vibration and axial position measurement, satisfying insurance and regulatory audit requirements in refinery and LNG facility installations.
• Broadband frequency coverage: DC-to-10,000 Hz response captures 1× and 2× running speed components in machines operating up to 600,000 RPM equivalent, as well as sub-synchronous oil whirl (typically 0.43–0.48×) and blade-pass frequencies in multi-stage compressors.
• Intrinsic safety variant availability: ATEX and FM certified versions of the 330100 series allow deployment in Zone 1 / Division 1 hazardous areas without external Zener barriers, simplifying loop design in gas compression and offshore platform installations.
• Diagnostic transparency via gap voltage monitoring: The DC component of the output voltage provides a continuous, real-time indication of average shaft centerline position. Trending this value over time reveals bearing wear, thermal growth, and alignment shift without additional instrumentation.
• Plug-compatible with 3300 XL driver ecosystem: The 330100-50-02 mates directly with 330180-X1-05 and 330180-X1-00 drivers. No adapter or impedance-matching network is required, preserving the factory-validated measurement chain performance specification.
• Reduced installation error risk: The integral 5.0 m cable eliminates the field-installed coaxial connector between probe and extension cable — a common source of impedance mismatch and moisture ingress that degrades scale factor accuracy by up to 3% in humid environments.
• Long-term spare parts availability: As a current-production Baker Hughes catalog item, the 330100-50-02 carries a defined product lifecycle commitment, reducing the obsolescence risk associated with third-party eddy-current sensors that may be discontinued without notice.
• Multi-monitor compatibility: A single probe output can be split to feed both a protection monitor (3500 Series) and a condition monitoring system (System 1 or equivalent) simultaneously, provided the total cable capacitance remains within driver specification.

Quality Assurance & Global Logistics

Every 330100-50-02 unit supplied by siemensplc.com is sourced as genuine Bently Nevada (Baker Hughes) original equipment. Units are stored in climate-controlled warehousing in Xiamen, China, maintaining ambient temperature between 15°C and 25°C and relative humidity below 60% RH to preserve coaxial cable dielectric integrity and probe coil insulation resistance above 100 MΩ.

Pre-shipment inspection covers: visual examination of probe tip and cable jacket for mechanical damage; coaxial cable continuity and shield integrity verification; connector pin condition check; and label/part number authentication against Baker Hughes serialization records where available. Units are packed in anti-static foam-lined enclosures with desiccant packs, then placed in double-wall corrugated cartons rated for 80 kg/cm² crush resistance — adequate for air freight pallet stacking loads.

Shipment from Xiamen Gaoqi International Airport (XMN) reaches major industrial hubs on the following typical transit schedules: Hong Kong and Singapore within 1–2 business days; Dubai, Rotterdam, and Houston within 3–5 business days; São Paulo and Sydney within 5–7 business days. DHL Express, FedEx International Priority, and UPS Worldwide Express are the primary carriers, with tracking numbers issued within 4 hours of dispatch. All shipments include a commercial invoice, packing list, and certificate of conformance. ATEX/FM documentation is included for certified variants upon request. A 12-month warranty covers manufacturing defects under normal operating conditions from the date of shipment.
