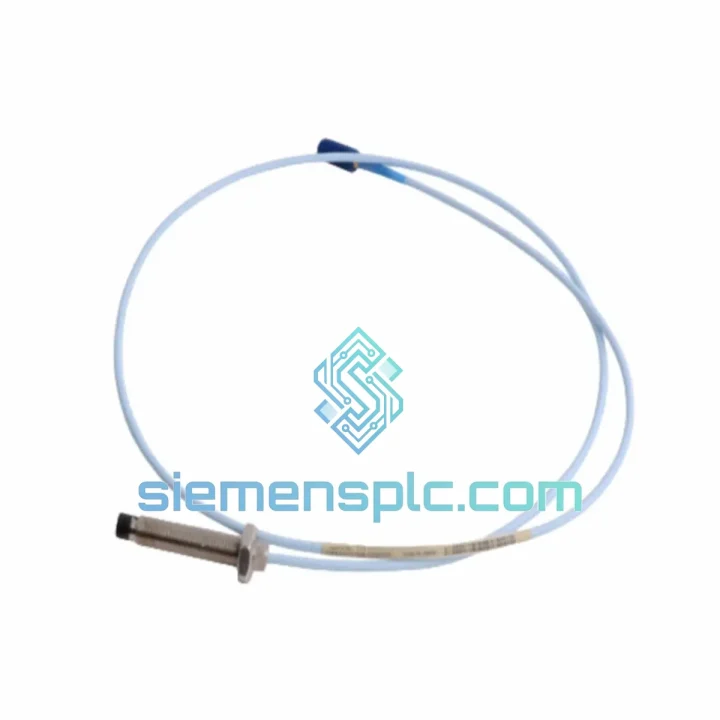

Bently Nevada 330103-00-02-05-01-00 Proximity Transducer – 3300 XL Series

Bently Nevada 330103-00-02-05-01-00 — 8mm Eddy-Current Proximity Transducer for Rotating Machinery Protection

The Bently Nevada 330103-00-02-05-01-00 is a non-contact, eddy-current proximity transducer forming the sensing front-end of the 3300 XL 8mm Proximity Transducer System. It measures shaft radial vibration, axial position, and eccentricity in real time, feeding analog voltage signals directly into Bently Nevada 3500-series machinery protection monitors. The transducer operates on the principle of electromagnetic induction: a high-frequency oscillator (typically 1.0 MHz) drives a coil wound within the 8mm probe tip, generating an alternating magnetic field. When a conductive target — typically AISI 4140 steel shaft — enters the field, eddy currents are induced on the target surface, loading the oscillator circuit. The resulting change in oscillator amplitude is demodulated into a DC voltage proportional to the gap between probe tip and target surface, with a nominal sensitivity of 7.87 V/mm (200 mV/mil).

This model carries the suffix configuration -00-02-05-01-00, which decodes as: standard (non-armored) integral cable, 2 m probe cable, 5 m extension cable pairing, metric M10×1 thread, and standard temperature rating. It is designed to pair with the 330180-X1-05 driver/oscillator and 330130-080-00-00 extension cable to form a complete, factory-matched transducer system. The matched-system approach is mandatory for maintaining the ±0.05 mm linearity specification and preserving ATEX/FM intrinsic safety certifications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330103-00-02-05-01-00 probe is the passive sensing element in a three-component eddy-current chain: probe → extension cable → driver/oscillator. The probe coil is wound on a ferrite core and encapsulated in a stainless-steel housing with a PEEK (polyether ether ketone) tip face. PEEK provides electrical isolation between the coil assembly and the target environment while maintaining dimensional stability up to 177°C — a critical requirement in steam turbine bearing pedestals where ambient temperatures routinely exceed 120°C.

The coil impedance is precisely matched to the 330180 driver at the factory. Any substitution of a non-matched driver alters the Q-factor of the LC tank circuit, shifting the demodulated output curve and introducing a systematic sensitivity error that cannot be corrected by field calibration alone. This is why Bently Nevada mandates matched-system procurement: the probe, extension cable, and driver are serialized and shipped as a calibrated set.

EMC Design: The coaxial cable construction provides inherent common-mode rejection. The outer shield is grounded at the driver end only (single-point grounding), preventing ground-loop currents that would appear as low-frequency noise on the output signal. In environments with high variable-frequency drive (VFD) interference — common in compressor trains — this single-point shield topology reduces conducted EMI by 20–30 dB compared to double-grounded configurations.

Intrinsic Safety Architecture: The ATEX/FM certification is achieved through energy-limiting barriers in the driver circuit, not in the probe itself. The probe is rated as a simple apparatus (capacitance < 1 nF, inductance < 1 mH at the probe tip), allowing it to operate in Zone 0 hazardous areas when paired with a certified IS barrier. This architecture means the probe can be installed in the hazardous zone while the driver remains in the safe area, eliminating the need for explosion-proof enclosures at the measurement point.

Target Material Correction: The nominal 7.87 V/mm sensitivity is calibrated against AISI 4140 steel. For austenitic stainless steel (316L) shafts, the effective sensitivity drops to approximately 6.5 V/mm due to lower electrical conductivity. For aluminum targets, it drops further to ~5.2 V/mm. Field engineers must apply the appropriate material correction factor (MCF) documented in Bently Nevada Technical Note TN-13 to avoid systematic gap measurement errors that could mask actual shaft displacement.

System Integration Benefits

• API 670 Compliance: The 330103 system meets the full requirements of API Standard 670 (5th Edition) for non-contacting vibration and position measurement, enabling direct use in machinery protection systems for critical rotating equipment without additional engineering justification.
• Deterministic Signal Latency: The analog DC output eliminates digitization latency at the sensor level. From shaft displacement to voltage change at the monitor input, signal propagation delay is governed only by cable capacitance — typically <1 µs for a 7 m total cable run — ensuring the 3500 monitor’s trip response time is not degraded by sensor-side processing.
• Dual-Use Output: The –1 to –17 VDC output simultaneously drives the 3500 monitor’s vibration channel and can be tapped for a 4–20 mA transmitter (via 3500 I/O module) for DCS integration, eliminating the need for a separate transmitter and reducing wiring complexity.
• Diagnostic Transparency via Gap Voltage: The DC bias voltage (static gap component) is continuously readable at the monitor, providing a real-time indicator of probe installation gap drift caused by bearing wear, thermal expansion, or mechanical looseness — a diagnostic channel that requires no additional instrumentation.
• High-Frequency Structural Response Capture: The 10 kHz flat frequency response captures sub-synchronous instabilities (oil whirl at 0.43–0.48×), synchronous 1× unbalance, and super-synchronous blade-pass frequencies in a single measurement channel, reducing the number of sensors required per bearing plane.
• Hazardous Area Deployment Without Enclosures: ATEX Zone 0 / FM Class I Div 1 rating allows direct installation in hydrogen-cooled generators, LNG compressor casings, and other flammable-atmosphere environments without explosion-proof junction boxes at the probe location.
• Long-Term Calibration Stability: The encapsulated coil construction and PEEK tip face resist oil, steam condensate, and cleaning solvents, maintaining sensitivity within ±2% of the factory-calibrated value over a 5-year service interval under normal operating conditions.
• Backward Compatibility with 3300 Infrastructure: The 330103 is electrically and mechanically interchangeable with earlier 3300 series probes, allowing direct replacement in existing installations without re-threading probe bosses or replacing extension cables, minimizing planned maintenance downtime.

Quality Assurance & Global Logistics

Every Bently Nevada 330103-00-02-05-01-00 unit supplied through siemensplc.com is sourced from authorized distribution channels or verified surplus inventory with full lot traceability. Prior to dispatch from our Xiamen, China facility, each unit undergoes a pre-shipment inspection protocol covering: visual examination of the probe tip face and coaxial connector for mechanical damage; cable continuity and insulation resistance check (>100 MΩ at 500 VDC); verification of laser-etched part number, date code, and ATEX/CE markings against the order specification; and confirmation of original Bently Nevada packaging and calibration documentation where available.

Xiamen’s geographic position — a major southeastern China port city with direct access to Xiamen Gaoqi International Airport and Xiamen Port — enables competitive transit times to industrial hubs globally: 3–5 business days to Southeast Asia, 5–7 days to the Middle East and Europe via air freight, and 7–10 days to North America. DDP (Delivered Duty Paid) shipping is available for most destinations, eliminating customs clearance complexity for the buyer. Export documentation including commercial invoice, packing list, certificate of origin, and MSDS is prepared in compliance with destination country import requirements. All shipments are insured against transit damage.

A 12-month warranty covers manufacturing defects and calibration drift beyond the ±2% tolerance band from the date of shipment. Warranty claims are processed with a target replacement dispatch of 5 business days upon receipt of the defective unit and supporting documentation.
