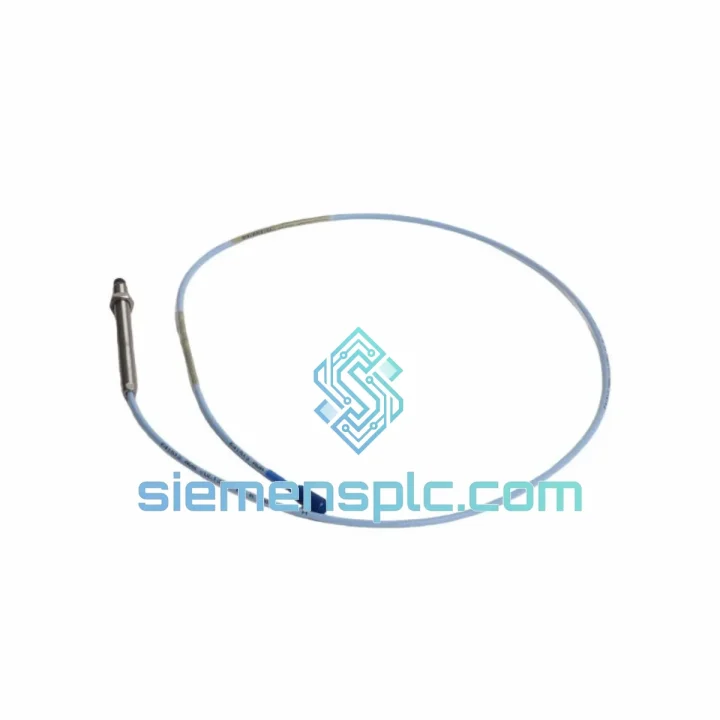

Bently Nevada 330103-04-10-10-02-00 Proximity Transducer

330103-04-10-10-02-00 — Stop the Clock on Your Downtime. Ship Today.

Every hour your turbine or compressor sits idle, you’re bleeding money. A failed proximity transducer shouldn’t be the reason your plant stays down for days. We stock the Bently Nevada 330103-04-10-10-02-00 — the 3300 XL 8 mm eddy-current proximity transducer — and we ship same-day from Xiamen via DHL/FedEx Express. No waiting on factory lead times. No chasing distributors. One call, one shipment, back online.

This is the exact unit your machinery protection system is waiting for. Drop-in replacement for any 3300 XL installation. Zero recalibration required when swapping into an existing 3300/16, 3300/20, or 3500-series rack.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Swapping a 330103-04-10-10-02-00 in the field is straightforward if you follow the sequence. Rushing it creates new faults. Here’s what ten years of field calls have taught:

Step 1 — Confirm the fault before you pull the probe. Check your 3500/42M or 3300/16 monitor for active alerts. A Not OK (NOK) LED combined with a gap voltage outside –10 V ± 1 V almost always points to the probe or extension cable, not the driver. Measure gap voltage at the driver output terminal with a calibrated DMM before condemning the transducer.

Step 2 — Verify the extension cable, not just the probe. The 330103 probe is robust. In most field failures, the weak point is the extension cable connector at the probe junction — especially in high-vibration or high-temperature zones. Flex the cable near the connector while watching gap voltage. A fluctuating reading confirms cable failure, not probe failure. Don’t replace the probe if the cable is the culprit.

Step 3 — Match the system length before ordering. The part number suffix encodes the system configuration. 04-10-10 in 330103-04-10-10-02-00 indicates probe cable 1.0 m + extension 8.0 m = 10 m total. Installing a mismatched system length changes the driver’s calibrated gap range and will throw false alerts or fail the rack’s self-test. Confirm your total cable length before swapping.

Step 4 — Target material correction. Standard calibration is for AISI 4140 steel. If your shaft is 17-4 PH stainless, Inconel, or titanium, the scale factor shifts — sometimes by 15–25%. If you’re seeing unexplained amplitude offsets after replacement on a non-standard shaft, apply the target material correction factor from the 3300 XL calibration manual (document 141078-01) before adjusting alarm setpoints.

Step 5 — Gap setting after installation. Target gap voltage should read –10.0 V ± 0.5 V at the nominal air gap of 1.0 mm for AISI 4140 targets. Use a non-magnetic feeler gauge. Do not rely on the monitor’s OK status alone — verify gap voltage at the driver terminal directly.

Common fault codes on 3500/42M after transducer swap:

• Alert 1 / Danger 1 active immediately after installation: Gap voltage out of range. Re-check probe-to-shaft clearance and cable continuity.
• Intermittent NOK during operation: Loose connector at probe/extension junction. Re-torque to spec (finger-tight + 1/4 turn) and apply thread-lock compound.
• Scale factor deviation greater than 5%: Target material mismatch or incorrect system length. Verify part number suffix against installed cable lengths.
• Monitor self-test failure after swap: Driver part number mismatch. Confirm driver is 330180-X1-05 (8 mm, –24 VDC) — not a 5 mm or 11 mm variant.

Reliability in Harsh Conditions

The 3300 XL platform was designed for environments that destroy lesser instrumentation. The 330103-04-10-10-02-00 probe is rated to +177 °C continuous — hot enough to survive direct installation near steam turbine casings and hot-gas-path flanges where ambient temperatures routinely exceed what standard industrial sensors can tolerate.

The armored cable jacket on the 330103 series resists mechanical abrasion, chemical splash, and the constant micro-vibration that fatigues standard cable insulation over time. In petrochemical plants where H2S and hydrocarbon condensate are present, the cable jacket’s chemical resistance prevents insulation breakdown that would otherwise cause drift in gap voltage readings.

Vibration immunity is built into the probe body design. The eddy-current sensing element is potted in a thermally stable compound that maintains dimensional integrity under the shock and vibration loads specified in API 670 — including 1g continuous vibration across the 10–2,000 Hz range. This matters in compressor trains where the probe itself is exposed to the same vibration energy it’s measuring.

ATEX and FM hazardous-area certifications mean this unit can be installed in Zone 1 / Division 1 classified areas without additional barriers or enclosures in most configurations. For offshore platforms and chemical plants where area classification drives installation cost, this is a significant operational advantage.

Long-term stability is where the 3300 XL earns its reputation. Thermally compensated internal design keeps scale factor drift below 1% over a five-year service interval under normal operating conditions — critical for plants that run continuous monitoring without scheduled recalibration outages.

Global Express Logistics

Our warehouse is located in Xiamen, China — one of the most logistics-efficient export hubs in Asia, with direct DHL and FedEx Express connections to major industrial centers worldwide.

Standard export process for urgent orders:

• Order confirmed before 14:00 CST: Same-day dispatch. DHL/FedEx Express pickup scheduled for that afternoon.
• Transit times: Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | North America 3–5 days | South America / Africa 4–6 days.
• Documentation: Commercial invoice, packing list, and certificate of origin issued with every shipment. ATEX/FM certificates available on request for customs clearance in regulated markets.
• Tracking: AWB number provided within 2 hours of dispatch. Real-time tracking link sent directly to your procurement contact.
• Customs support: HS Code 9031.80 applies to proximity transducers. We pre-declare correctly to avoid customs holds. For duty-sensitive markets (EU, India, Brazil), we can provide supporting technical documentation to facilitate clearance.
• Emergency freight: For critical shutdowns, we can arrange next-flight-out courier on request. Contact us directly for a freight quote.

We have shipped to refineries in Saudi Arabia, power plants in Germany, paper mills in Finland, and compressor stations in Texas — all on emergency timelines. The logistics process is tested and repeatable.
