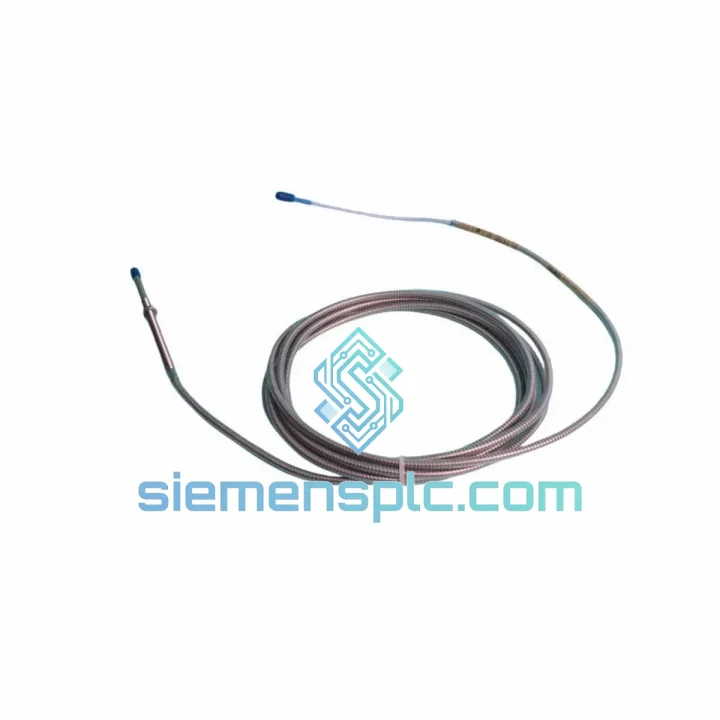

Bently Nevada 330104-10-21-10-02-00 Proximity Transducer System

330104-10-21-10-02-00 — Stop the Clock on Your Downtime

Every hour a turbine or compressor sits idle costs real money — production losses, penalty clauses, idle labor. When your Bently Nevada proximity transducer system fails, you don’t have time for a three-week lead time from the OEM. The 330104-10-21-10-02-00 is in stock at our Xiamen warehouse right now. We ship DHL Express or FedEx International Priority within 24 hours of payment confirmation. That’s the difference between a two-day outage and a two-week nightmare.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here’s what actually goes wrong with the 330104-10-21-10-02-00 and what to check before you condemn the probe:

Fault Code: High Static Gap Voltage (above –2 VDC) — Probe tip is too far from the shaft. Recheck your mounting bracket. Target gap should be set to 1.0 mm (–10.2 VDC ± 0.5 VDC at the driver output). Don’t assume the bracket hasn’t shifted during a previous maintenance window.

Fault Code: Low Static Gap Voltage (below –18 VDC) — Probe is touching or nearly touching the shaft. Immediate risk of probe tip damage. Shut down and re-gap before restart. Also verify the shaft hasn’t shifted axially due to a thrust bearing failure.

Noisy Signal / High AC Component at Rest — 90% of the time this is a cable shield grounding issue. The coaxial extension cable shield must be grounded at one end only — at the driver/oscillator, not at the probe end. Grounding both ends creates a ground loop that injects noise directly into the measurement. Check your cable routing too; running parallel to VFD power cables for more than 300 mm will couple switching noise regardless of shielding.

Replacement Procedure — Key Steps:

• De-energize the –24 VDC supply to the driver before disconnecting any connectors. Hot-swapping the coaxial connector under power can damage the driver input stage.
• Record the existing gap voltage before removal. This gives you a baseline to verify the new probe is installed at the same gap depth — critical if the mounting bracket has any wear.
• When installing the new 330104-10-21-10-02-00, apply a thin film of anti-seize compound to the probe threads. Stainless probe bodies in carbon steel brackets will gall if installed dry, making future removal destructive.
• After installation, perform a full static calibration check per API 670 Annex D before returning the machine to service. Do not rely on the monitor’s self-test alone — it only verifies the driver, not the probe-to-shaft gap.
• If replacing a probe in a 3500 Series rack, verify the monitor channel is configured for 8 mm probe sensitivity (200 mV/mil). Mixing 5 mm and 8 mm probes in the same rack without reconfiguring the monitor will give false vibration readings.
• Driver firmware: the 3300 XL 8 mm driver (330180-X1-05) does not require firmware updates — it is a passive oscillator/demodulator. No EEPROM configuration needed. Plug-and-play replacement once gap is set correctly.

Reliability in Harsh Conditions

The 3300 XL series was not designed for a climate-controlled control room. It was designed for the bearing pedestal of a 200 MW steam turbine running at 3,000 RPM in a tropical power plant with 95% humidity and 60 °C ambient. The 330104-10-21-10-02-00 reflects that design philosophy at every level.

The probe body is machined from 316 stainless steel with a PEEK (polyether ether ketone) tip insert — a material that maintains dimensional stability from cryogenic temperatures to well above the rated +177 °C operating limit. The coaxial cable uses a fluoropolymer (FEP) jacket that resists hydrocarbon contamination, steam condensate, and the aggressive cleaning solvents used during turbine overhauls.

Vibration immunity is not an afterthought. The probe and cable assembly is tested to IEC 60068-2-6 (sinusoidal vibration, 10–500 Hz, 20 g) and IEC 60068-2-64 (random vibration). In practice, this means the assembly survives the structural vibration transmitted through the bearing housing itself — the very environment it is measuring. Eddy-current technology has no moving parts, no wear surfaces, and no contact with the rotating shaft. Mean time between failure in continuous service routinely exceeds 15 years in documented field installations.

For offshore and marine applications, the IP67 rating on both the probe connector and the driver housing provides protection against water ingress during washdown and wave splash. ATEX and IECEx certifications cover installation in Zone 1 and Zone 2 hazardous areas — standard in LNG terminals, FPSO topsides, and petrochemical process units.

Global Express Logistics

Our Xiamen warehouse is located 12 km from Xiamen Gaoqi International Airport (XMN), one of China’s primary cargo hubs with direct freighter connections to Frankfurt, Dubai, Chicago, and Singapore. This geography is deliberate — it minimizes the time between payment confirmation and wheels-up.

Standard Express Process: Payment confirmed → same-day picking and packing → DHL Express or FedEx International Priority airway bill generated → cargo tendered to airline within 4 hours of cutoff. For most destinations in Europe, the Middle East, and Southeast Asia, door-to-door transit is 2–3 business days. North America typically 3–4 business days. Remote locations (West Africa, Central Asia) 4–6 business days via DHL.

Documentation Package Included: Commercial invoice with HS code 9031.80 pre-classified, packing list, certificate of origin (Form E available for ASEAN preferential tariff), and our incoming inspection report. For ATEX-certified shipments, we include a copy of the relevant EU Declaration of Conformity. If your site requires an end-user certificate or import license, contact us before ordering — we handle this routinely for customers in India, Brazil, and the GCC countries.

Emergency Shutdown Support: If you are in the middle of an unplanned outage and need same-day quotation and shipping commitment, send your purchase order or LOI directly to [email protected] with subject line URGENT — [Your Plant Name] — 330104-10-21-10-02-00. We will respond within 2 hours during business hours (UTC+8, Monday–Saturday) and within 4 hours outside business hours.
