Bently Nevada 330500-01-00 Piezo-Velocity Sensor – Velomitor XA

Bently Nevada 330500-01-00 Velomitor XA Piezo-Velocity Sensor: Structural Velocity Measurement in Continuous Machinery Protection Systems

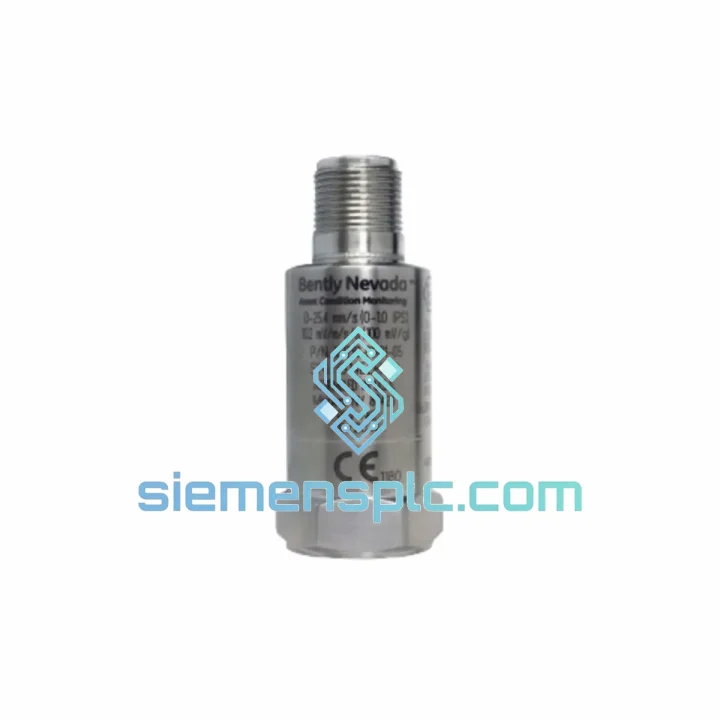

The Bently Nevada 330500-01-00 is an integrated electronic piezoelectric (IEPE) velocity transducer engineered for permanent installation on rotating machinery bearing housings, compressor casings, and turbine pedestals. Unlike traditional seismic velocity coil transducers, the 330500-01-00 employs a shear-mode piezoelectric crystal stack coupled to a low-noise charge amplifier integrated within the sensor body. This architecture eliminates the mechanical resonance limitations of moving-coil designs and extends the usable frequency bandwidth to 2 Hz–2,000 Hz, covering both low-speed machinery (≥120 RPM) and high-frequency structural resonance modes simultaneously.

The output signal is a voltage-mode, constant-current-driven analog at 100 mV per in/s (3.937 mV per mm/s), directly compatible with Bently Nevada 3500 Series velocity input modules (3500/42M, 3500/45) and the 1900/65 general-purpose equipment monitor. The ±5 V peak full-scale range provides adequate headroom for transient shock events without signal clipping, preserving waveform integrity for time-waveform analysis in System 1® condition monitoring software.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Shear-Mode Crystal Stack and Charge Amplifier Integration

The 330500-01-00 uses a shear-mode piezoelectric element rather than a compression-mode crystal. In shear configuration, the sensing element is mechanically decoupled from the base, which suppresses thermally induced pyroelectric charge generation—a common source of low-frequency drift in compression-mode sensors. This is particularly significant in applications where the sensor body temperature fluctuates during startup and shutdown cycles of steam turbines or gas compressors.

The integrated charge amplifier converts the high-impedance charge output of the crystal into a low-impedance voltage signal within the sensor housing. This eliminates the requirement for low-noise coaxial cable between the crystal and a remote charge amplifier, reducing susceptibility to triboelectric noise generated by cable flexure in high-vibration environments. The amplifier is powered via the same two-wire constant-current loop that carries the output signal, simplifying field wiring to a single shielded twisted pair.

EMC Design and Ground Loop Rejection

The hermetically sealed 316L stainless steel housing provides a continuous Faraday shield around the signal conditioning electronics. The two-wire current-loop topology inherently rejects common-mode electrical interference because the signal is referenced to the loop current rather than to a separate ground conductor. In installations near variable-frequency drives (VFDs) or high-current bus bars, this architecture maintains signal integrity without requiring additional shielding conduit. The sensor passes IEC 61000-4-3 radiated immunity testing at 10 V/m across 80 MHz–1 GHz.

Frequency Response Flatness and Phase Linearity

The internal analog filter network is tuned to maintain amplitude response within ±3 dB from 2 Hz to 2,000 Hz with phase linearity better than ±5° across 10 Hz–1,000 Hz. This phase characteristic is essential when the sensor output is used as input to a Bently Nevada 3500/42M velocity monitor configured for 1× and 2× synchronous vibration vector computation. Phase errors in the transducer would directly corrupt the vibration vector angle, leading to incorrect balance correction plane calculations during trim balancing operations.

System Integration Benefits

• Direct 3500 Series Compatibility: The 100 mV/(in/s) sensitivity and ±5 V full-scale output match the input range of the 3500/42M and 3500/45 velocity input modules without requiring external signal conditioning or range adapters, reducing panel wiring complexity.
• Deterministic Alarm Response: The low output impedance (<100 Ω) ensures that cable capacitance up to 10,000 pF (approximately 100 m of standard instrumentation cable) does not attenuate the signal above the 3 dB point at 2,000 Hz, preserving alarm setpoint accuracy at the monitor input.
• Diagnostic Transparency via System 1®: The wideband analog output supports full spectrum analysis in Emerson System 1® software, enabling identification of sub-synchronous instabilities, blade-pass frequencies, and gear mesh frequencies within a single sensor channel without multiplexing.
• Reduced Maintenance Interval: Absence of moving mechanical parts (no coil, no magnet, no spring suspension) eliminates the primary failure mode of traditional velocity coil transducers. Mean time between failures (MTBF) for IEPE sensors in this class exceeds 100,000 hours under continuous operation at rated temperature.
• Hazardous Area Deployment: Optional ATEX Zone 1 and FM Class I Division 1 certifications allow installation in hydrocarbon processing environments without additional intrinsic safety barriers when the appropriate certified variant is specified.
• Simplified Commissioning: The two-wire loop connection is polarity-insensitive at the monitor input, and the sensor self-identifies as a velocity transducer within the 3500 rack configuration software, reducing commissioning time compared to charge-output accelerometers requiring separate amplifier configuration.
• Thermal Stability Across Process Upsets: The shear-mode crystal and hermetic seal maintain calibration accuracy within ±2% of nominal sensitivity across the full −40°C to +121°C operating range, eliminating the need for temperature compensation corrections in the monitor configuration.
• Interchangeability Without Recalibration: Factory calibration tolerance of ±10% on sensitivity, combined with the 3500 monitor’s software-configurable transducer scale factor, allows unit-to-unit replacement without recalibration of the monitoring system, reducing planned maintenance downtime.

Quality Assurance & Global Logistics

Every Bently Nevada 330500-01-00 unit supplied by siemensplc.com is sourced through verified supply channels and undergoes a structured pre-shipment inspection protocol before dispatch from our Xiamen, China operations center.

Inspection Protocol: Each unit is visually inspected for housing integrity, connector pin condition, and cable jacket continuity. Functional verification confirms supply current draw within the 2–10 mA specification and output signal presence under bench excitation. Units with original manufacturer packaging and lot traceability documentation are prioritized for shipment.

Documentation Package: Available on request: original factory calibration certificate with NIST-traceable reference standard, material test report (MTR) for the stainless steel housing, and country-of-origin declaration for customs compliance. These documents support MRO procurement workflows in regulated industries including nuclear power, offshore oil and gas, and pharmaceutical manufacturing.

Logistics from Xiamen: Xiamen Gaoqi International Airport (XMN) and Xiamen Port provide direct air freight and sea freight connections to major industrial hubs globally. Standard air freight transit times: 3–5 business days to Southeast Asia, 5–7 business days to Europe and the Middle East, 6–9 business days to North America. Express courier (DHL/FedEx) available for urgent requirements with 2–3 business day delivery to most destinations. All shipments are packed in anti-static foam-lined cartons with humidity indicator cards. Export documentation including commercial invoice, packing list, and HS code 9031.80 classification are prepared for each shipment.

Warranty: 12 months from confirmed shipment date. Warranty covers manufacturing defects and calibration drift beyond ±15% of nominal sensitivity under normal operating conditions. Field failure analysis reports provided for warranty claims to support root cause documentation.
