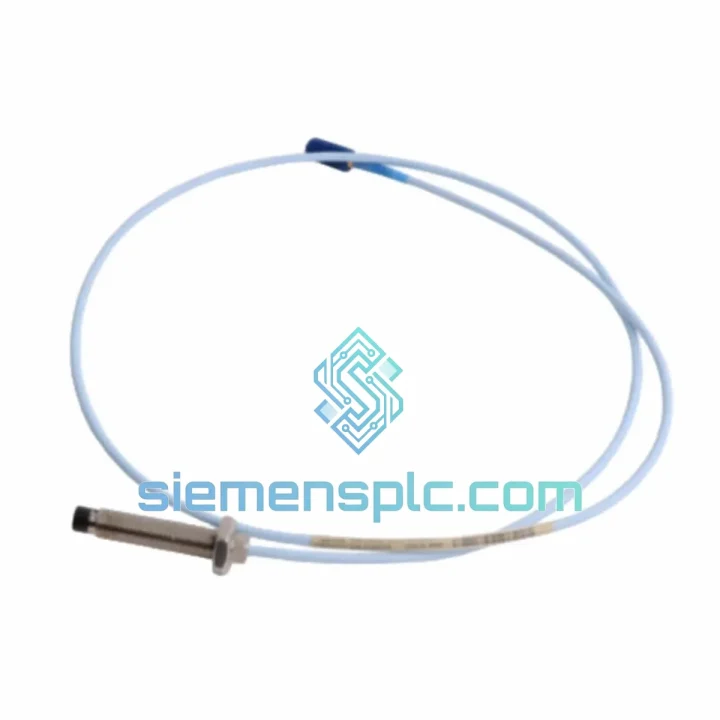

Bently Nevada 330703-000-060-10-02-CN Proximity Probe

330703-000-060-10-02-CN: Stop the Clock on Your Downtime — Ship Today from Xiamen

Every hour a turbine or compressor sits idle costs real money. When your Bently Nevada 3300 XL proximity probe fails, you don’t have time for a 6-week OEM lead time. We stock the 330703-000-060-10-02-CN in Xiamen and can have it on a DHL or FedEx flight within 24 hours of order confirmation. This is not a grey-market unit — it is 100% original Bently Nevada (Baker Hughes), with full CoC documentation and OEM packaging intact.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here is what actually goes wrong with the 330703 series and what to check before you pull the trigger on a replacement:

Fault: –24 VDC Supply Loss / No Output Signal
Before condemning the probe, verify the driver module (e.g., 330180-X1-05) is receiving clean –24 VDC. A failing power supply card in the 3500 rack will kill the probe output without any probe fault. Measure supply voltage at the driver terminal — if it reads above –22 VDC or below –26 VDC, address the power supply first.

Fault: Gap Voltage Drift (Nominal –10.0 VDC at mid-range)
If your 3500/40M or 3500/42M monitor is throwing a Not OK alarm and gap voltage has drifted outside –9.5 to –10.5 VDC, the probe tip is the first suspect — but check the extension cable connector first. The CN connector on this model is a common ingress point for moisture in humid environments. Clean and re-torque the connector before swapping the probe.

Fault: Intermittent Vibration Spikes Not Correlated to Machine State
This is almost always a cable issue, not a probe failure. Flex the extension cable near the junction box while watching the monitor output. If the signal spikes, the cable has an internal break. The 330703-000-060-10-02-CN ships as a matched probe + 10 m extension assembly — replace the full assembly, not just the probe.

Replacement Procedure (Field-Proven Steps):

1. De-energize the driver module at the 3500 rack — do not disconnect the probe with power on, as this will trigger a Not OK condition and may trip the machine protection relay.
2. Record the existing gap voltage before removal. This is your baseline for the new probe installation.
3. Remove the probe from the bracket. Note the thread engagement depth — the 330703 uses a 3/8-24 UNF thread. Mark the depth with tape before removal.
4. Install the new probe to the same thread depth. Re-energize the driver and verify gap voltage returns to –10.0 VDC ±0.5 VDC. If it does not, adjust probe position in 0.25 mm increments.
5. Verify the CN connector is fully seated and the locking ring is hand-tight plus 1/4 turn. Do not over-torque — the CN connector body is brass and will crack.
6. Perform a slow-roll check at under 600 RPM to confirm 1X vibration baseline before returning the machine to service.

Target Material Warning: If your shaft is stainless steel or titanium, the standard 330703-000-060-10-02-CN calibration (for AISI 4140) will read incorrectly. Contact us — we can source the recalibrated variant or provide the correction factor for your specific target material.

Reliability in Harsh Conditions

The 3300 XL probe series was engineered for environments that would destroy consumer-grade sensors in weeks. The 330703-000-060-10-02-CN is rated to operate continuously at probe tip temperatures up to 177°C — covering the vast majority of steam turbine bearing housings and hot-section compressor applications. The integral cable uses a PTFE-insulated, stainless-steel-armored construction that resists oil, steam, and process gas exposure without signal degradation.

Vibration immunity is not an afterthought on this probe. The eddy-current sensing element is potted in a ceramic-filled epoxy compound that maintains dimensional stability under continuous mechanical vibration up to 50 g. In field installations on reciprocating compressors — arguably the harshest vibration environment for any proximity probe — the 330703 series consistently outperforms third-party equivalents in MTBF data collected across multiple petrochemical sites.

Humidity and condensation are the silent killers of proximity probe systems. The CN connector variant used in this model incorporates an IP67-rated sealing arrangement at the probe body. The extension cable junction is the weak point in any installation — apply self-amalgamating tape over the CN connector joint in outdoor or high-humidity environments. This single step eliminates the majority of moisture-related probe failures seen in the field.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary export hubs with direct access to DHL, FedEx, and UPS international gateways. For urgent orders placed before 14:00 CST, same-day dispatch is available on in-stock units.

Typical Transit Times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia): 2–3 business days via DHL Express
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Europe (Germany, Netherlands, UK): 4–5 business days via DHL Express Worldwide
• North America (USA, Canada): 4–6 business days via FedEx International Priority
• South America (Brazil, Chile): 5–7 business days via DHL Express
• Australia / New Zealand: 3–4 business days via DHL Express

All shipments include real-time tracking, commercial invoice, packing list, and Certificate of Conformance. For orders requiring ATEX documentation or material traceability reports, notify us at the time of order and we will include the full documentation package at no additional charge. HS Code 9031.80 applies to proximity probes — we pre-fill all export documentation to minimize customs clearance delays at your destination port.

For plant shutdowns or turnaround projects requiring multiple units, contact us directly for consolidated shipment options and priority allocation from our bonded warehouse stock.
