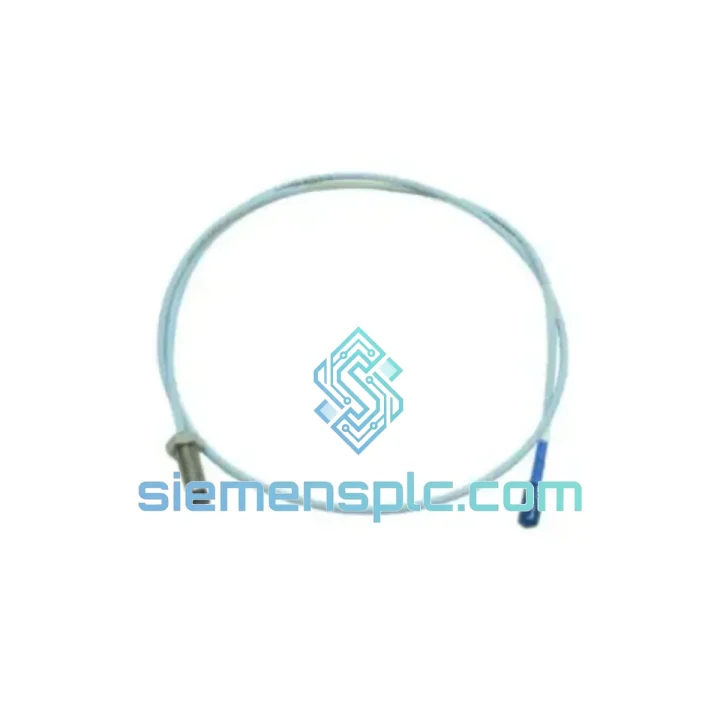

Bently Nevada 330704-000-080-10-01-00 Proximity Probe – 3300 XL Series

Bently Nevada 330704-000-080-10-01-00 — 8 mm Eddy-Current Proximity Probe in the 3300 XL Transducer System

The 330704-000-080-10-01-00 is an 8 mm eddy-current proximity probe manufactured by Bently Nevada as part of the 3300 XL Proximity Transducer System. It performs non-contact, continuous measurement of shaft radial vibration, axial position, and differential expansion in rotating machinery. The probe operates on the eddy-current principle: a high-frequency oscillator drives a coil wound inside the probe tip, generating an electromagnetic field that induces eddy currents in any conductive target within its linear range. The resulting impedance change is converted by the paired Proximitor® driver into a DC voltage proportional to the gap between probe face and target surface. This architecture eliminates mechanical contact entirely, making the sensor suitable for continuous 24/7 machinery protection duty without wear-related drift.

Within a control loop, the 330704-000-080-10-01-00 occupies the primary sensing layer. Its analog output feeds directly into a 3500 Series Machinery Protection System rack — typically a 3500/42M Proximitor®/Seismic Monitor module — where the signal is conditioned, compared against alarm setpoints, and transmitted to the plant DCS or safety instrumented system (SIS). The probe’s 0–10,000 Hz frequency response ensures that both low-speed eccentricity (sub-1 Hz) and high-frequency blade-pass or gear-mesh events are captured within a single measurement channel, removing the need for parallel sensor architectures at most industrial sites.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330704-000-080-10-01-00 implements a three-component transducer architecture: probe body, integral extension cable, and Proximitor® driver. Understanding the signal chain at the hardware level is essential for correct installation and fault diagnosis.

Oscillator and coil geometry. The probe tip houses a flat, multi-turn coil wound on a ferrite former. The Proximitor® driver supplies a 1.0–2.0 MHz carrier signal to this coil. At this frequency, the skin depth in AISI 4140 steel is approximately 8–12 µm, meaning eddy currents are confined to a thin surface layer of the target shaft. This shallow penetration makes the measurement highly sensitive to surface condition and target material conductivity — a design characteristic that demands the use of OEM-specified target materials and surface finishes (Ra ≤ 1.6 µm) for calibration accuracy.

EMC shielding architecture. The integral armored cable uses a double-shield construction: an inner foil shield bonded to the coaxial center conductor, and an outer braided shield connected to the probe body ground. This arrangement provides greater than 60 dB of common-mode rejection across the 50 Hz–10 kHz band, suppressing interference from adjacent motor drives, bus bars, and high-current switching equipment typical of turbine hall environments. The shield is grounded at the Proximitor® driver end only, preventing ground-loop currents that would appear as low-frequency noise on the output signal.

Thermal compensation. The probe’s sensitivity coefficient has a temperature coefficient of approximately –0.05% per °C across the –35 °C to +177 °C operating range. For installations where probe body temperature varies by more than 50 °C during operation (e.g., hot-section gas turbine bearing housings), the 3300 XL system’s temperature compensation tables in the Proximitor® driver firmware correct for this drift without field recalibration. This is a hardware-software co-design feature that distinguishes the 3300 XL from generic eddy-current sensors.

Cable impedance matching. The 8 m integral cable (suffix -080) is factory-matched to the probe coil impedance. Substituting a non-OEM cable or splicing the cable mid-run introduces impedance discontinuities that shift the oscillator operating point, producing a sensitivity error of up to ±3% — outside the ±1% system accuracy specification. The -080 suffix in the part number encodes this matched cable length and must be preserved when ordering replacement probes for existing installations.

Redundancy and voting logic compatibility. In API 670-compliant installations, two or three probes are typically mounted 90° apart (X–Y configuration) on each bearing journal. The 3500/42M monitor accepts both channels simultaneously and computes shaft orbit plots in real time. The 330704-000-080-10-01-00’s tight sensitivity tolerance (±0.5%) ensures that the X and Y channel outputs remain matched to within the orbit computation accuracy requirements, preventing false eccentricity readings that would otherwise trigger nuisance trips.

System Integration Benefits

• Direct API 670 compliance. The probe meets API 670 (5th Edition) transducer system requirements without additional signal conditioning, enabling drop-in deployment in new or retrofit machinery protection systems at refineries, power plants, and LNG terminals.
• Deterministic analog output. The –1 to –21 VDC output is a continuous, low-latency analog signal with no digital conversion delay. The 3500/42M monitor samples this signal at 65,536 samples per second per channel, providing sub-millisecond detection latency for fast-acting machinery faults such as rub events or sudden imbalance.
• Zero-wear measurement principle. Non-contact eddy-current sensing eliminates probe wear entirely. Mean time between replacement (MTBR) in clean industrial environments exceeds 10 years, reducing planned maintenance intervals and associated machine downtime.
• Wide frequency coverage in a single channel. The DC-to-10 kHz bandwidth captures slow-roll eccentricity, 1× and 2× running speed vibration, sub-synchronous instabilities (oil whirl, oil whip), and high-frequency blade-pass or gear-mesh components within one measurement channel — eliminating the need for parallel accelerometer channels at most bearing locations.
• Native System 1 software integration. The probe’s output, when routed through a 3500 rack, is natively recognized by Bently Nevada System 1 Evolution software. Trend data, alarm history, and orbit plots are available without custom driver development, reducing commissioning time by several engineering days per machine train.
• ATEX/IECEx certification for hazardous areas. The probe carries ATEX and IECEx certifications, permitting installation in Zone 1 and Zone 2 classified areas (gas groups IIA, IIB) without additional barriers in most configurations. This is critical for compressor and pump applications in petrochemical plants.
• Diagnostic transparency via gap voltage monitoring. The DC component of the output voltage directly indicates the static gap between probe and shaft. Operators can monitor this value continuously in System 1 to detect shaft centerline migration, bearing wear, or probe mounting looseness — providing a diagnostic channel that requires no additional hardware.
• Standardized spare-parts management. The 3300 XL system’s modular architecture (probe + extension cable + driver) allows each component to be replaced independently. A single probe model (330704-000-080-10-01-00) covers multiple machine types, reducing the number of unique spare-part numbers that a plant must stock and manage.

Quality Assurance & Global Logistics

Every 330704-000-080-10-01-00 unit supplied through siemensplc.com is sourced from verified channels carrying full Bently Nevada factory traceability. Incoming inspection at our Xiamen facility covers dimensional verification of the probe tip and thread, sensitivity measurement against a calibrated gap-setting fixture (target: 7.87 V/mm ± 5%), cable continuity and insulation resistance (≥ 100 MΩ at 500 VDC), and connector pin-out verification. Units that do not meet these acceptance criteria are quarantined and returned to the supply chain — none are reworked or relabeled.

Xiamen is a designated free-trade port with direct air freight connections to Singapore Changi, Dubai DWC, Frankfurt FRA, Los Angeles LAX, and Tokyo NRT. Standard export packaging uses anti-static foam inserts inside double-wall corrugated cartons, with the probe tip protected by a machined plastic cap. Shipments are accompanied by a commercial invoice, packing list, and certificate of origin. For projects requiring expedited delivery, DHL Express and FedEx International Priority services from Xiamen typically achieve 3–5 business day door-to-door transit to most industrial destinations in Europe, the Middle East, and Southeast Asia. All units ship with a 12-month warranty against manufacturing defects, with advance replacement available for critical plant applications upon request.
