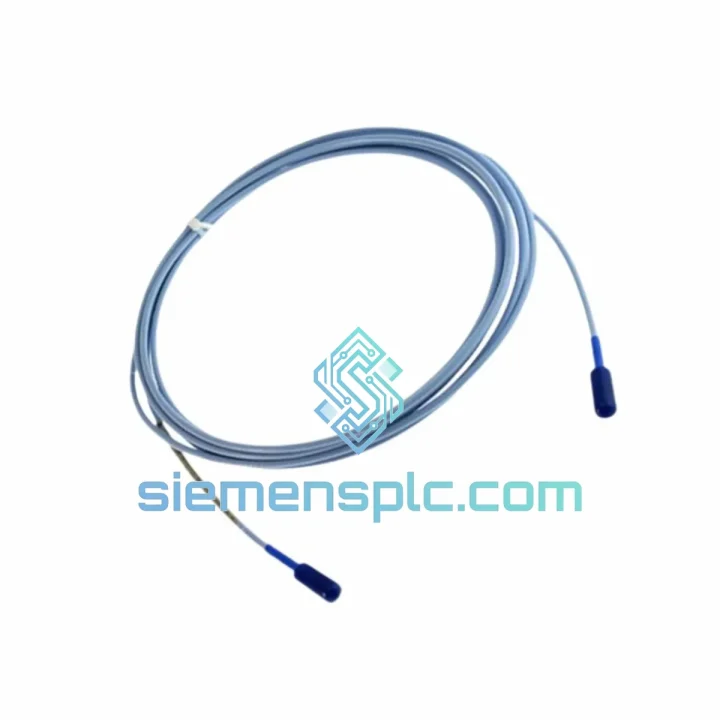

Bently Nevada 330730-080-12-CN Extension Cable – 3300 XL

Bently Nevada 330730-080-12-CN: Signal Integrity at the Core of Rotating Machinery Protection

In a proximity transducer system, the extension cable is not a passive conductor — it is a precision impedance element. The Bently Nevada 330730-080-12-CN is an 8-meter, 11 mm-class extension cable engineered specifically for the 3300 XL Proximity Transducer System. Its function is to transmit the eddy-current field perturbation signal from the probe tip to the proximitor driver with zero impedance deviation from the factory-calibrated system baseline. Any substitution with a non-OEM cable introduces a characteristic impedance mismatch that shifts the gap voltage curve, corrupts the sensitivity coefficient (V/mm), and invalidates the API 670 calibration record — consequences that no plant engineer can afford during a critical machinery protection audit.

The CN connector suffix designates a China-market termination standard, matched to the junction box and marshalling panel configurations prevalent in domestic power generation, petrochemical, and LNG facilities. The -080 length code specifies an 8.0-meter cable run — the most common probe-to-proximitor cabinet distance in turbine pedestal installations and compressor train layouts where the proximitor is mounted in a local instrument enclosure rather than a remote rack room.

This cable is a direct, traceable replacement for worn, mechanically damaged, or chemically degraded extension cables in operating 3300 XL systems. No re-calibration of the proximitor is required when replacing with an identical OEM part number, provided the probe and proximitor remain unchanged — a critical operational advantage during a live shutdown where calibration time is measured in lost production revenue.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330730-080-12-CN is not a generic shielded cable. Its design is governed by the eddy-current measurement physics of the 3300 XL system, and every electrical parameter is a deliberate engineering decision.

Impedance Continuity and Calibration Integrity. The 3300 XL proximity transducer system operates as a calibrated three-component chain: probe, extension cable, and proximitor. The extension cable’s coaxial geometry — center conductor diameter, dielectric constant, and shield coverage — is specified to maintain a defined characteristic impedance across the full operating frequency range of the eddy-current oscillator (typically 1.0 MHz carrier). Any deviation in cable impedance shifts the resonant loading on the proximitor oscillator circuit, which directly alters the output voltage-versus-gap relationship. The 330730-080-12-CN is manufactured to OEM impedance tolerances, ensuring the factory sensitivity calibration (7.87 V/mm) remains valid without field adjustment.

EMC Shielding Architecture. The cable employs a multi-layer shielding construction: an inner foil shield bonded to the coaxial dielectric, and an outer braided shield connected to chassis ground at the proximitor end. This dual-shield topology provides greater than 85 dB of common-mode rejection across the 10 kHz–10 MHz band — sufficient to suppress the conducted and radiated interference generated by variable-frequency drives, high-current bus bars, and arc furnace installations that frequently share cable trays with instrumentation wiring in heavy industrial facilities. The shield is grounded at one end only (proximitor end) to prevent ground loop currents that would appear as low-frequency noise on the DC output signal.

Armored Jacket Mechanical Design. The outer jacket combines a chemically resistant polymer layer with a mechanical armor layer rated for continuous exposure to turbine lube oil, hydraulic fluid, H₂S-bearing atmospheres, and the alkaline cleaning agents used in compressor maintenance. The armor resists crush loads from cable tray fill and abrasion from vibrating conduit fittings — failure modes that account for a significant proportion of extension cable replacements in operating plants. The jacket flexibility is maintained down to –40 °C, preventing stress fractures in outdoor installations during cold-weather startups.

CN Connector Termination Reliability. The CN-type connector is a precision-machined, gold-contact assembly with a defined mating cycle rating. Contact resistance is specified at less than 10 mΩ per mated pair, which is negligible relative to the cable’s DC resistance but critical for maintaining signal continuity under vibration. The connector locking mechanism is designed to resist self-loosening under the broadband vibration spectrum (10–2000 Hz) generated by rotating machinery — a failure mode that produces intermittent signal dropouts that are extremely difficult to diagnose under operating conditions.

System Integration Benefits

• Zero Re-Calibration on Like-for-Like Replacement. Replacing a failed 330730-080-12-CN with an identical OEM unit restores the original calibration state without requiring a proximitor gap voltage adjustment or sensitivity verification — provided the probe and proximitor are unchanged. This eliminates the need for a calibration technician during an emergency shutdown, reducing mean time to repair (MTTR) by 2–4 hours in typical field scenarios.
• API 670 Documentation Compliance. The OEM part number provides a traceable reference for the machinery protection system’s calibration record. Third-party cables cannot be entered into an API 670-compliant calibration database with a valid manufacturer reference — a compliance gap that creates audit findings in regulated industries.
• Deterministic Signal Latency. The cable’s electrical length (propagation delay) is fixed and consistent across the production batch. In systems where multiple proximity channels feed a 3500-series monitor with cross-channel voting logic, consistent cable propagation delay ensures that the monitor’s time-domain comparison algorithms operate within their designed tolerance window.
• Diagnostic Transparency via Gap Voltage Baseline. Because the cable impedance is factory-matched, the proximitor output voltage at a known mechanical gap is a reliable diagnostic reference. Maintenance engineers can trend the gap voltage over time to detect shaft centerline migration, bearing wear, and probe fouling — diagnostic capabilities that depend entirely on the cable maintaining its calibrated impedance.
• Reduced Spare Parts Inventory Complexity. Stocking OEM extension cables by part number eliminates the risk of installing a cable with the wrong impedance or length during a high-pressure shutdown. A single part number maps to a single, unambiguous electrical specification.
• Compatibility with 3500-Series Monitor Inputs. The 330730-080-12-CN is validated for use with Bently Nevada 3500/40M, 3500/42M, and 3500/44M proximity monitor cards. The cable’s output impedance at the proximitor is within the input impedance specification of these monitor cards, ensuring correct signal conditioning and alarm threshold accuracy.
• Vibration-Resistant Connector Retention. The CN connector’s locking mechanism maintains a minimum pull-out force of 45 N under continuous vibration at 2g, 10–500 Hz — the vibration environment specified for machinery protection instrumentation in API 670 Annex D. This prevents the intermittent disconnections that produce spurious high-vibration alarms and unnecessary machinery trips.
• Chemical Resistance for Hydrocarbon Environments. The jacket material is tested for continuous immersion resistance to ISO VG 46 turbine oil, ethylene glycol-based coolants, and dilute H₂SO₄ cleaning solutions. This covers the chemical exposure profile of the majority of oil & gas and power generation installations where the 3300 XL system is deployed.

Quality Assurance & Global Logistics

Genuine OEM Sourcing. Every 330730-080-12-CN unit in our inventory is sourced through documented procurement channels with full traceability to the original Bently Nevada (Baker Hughes) manufacturing batch. Each unit undergoes a pre-shipment inspection protocol: visual check against OEM reference photographs, connector pin integrity verification under 10× magnification, cable jacket continuity inspection, and part number label cross-check against procurement documentation. Counterfeit proximity cables are a documented problem in the industrial spare parts market — a counterfeit cable with incorrect impedance will produce measurement errors that are indistinguishable from a failing probe or proximitor until a full system calibration is performed.

12-Month Warranty. All units carry a 12-month warranty from the date of shipment, covering manufacturing defects in materials and workmanship. Warranty claims are processed with replacement unit dispatch within 5 business days of confirmed defect verification.

Logistics from Xiamen. Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct DHL Express and FedEx International Priority lanes to all major industrial regions. Standard transit times: Western Europe 3–4 business days, Middle East 3–5 business days, Southeast Asia 2–3 business days, North America 4–5 business days. Export documentation is complete on every shipment: commercial invoice, packing list, certificate of origin, and HS code classification (HS 8544.42 for instrumentation cable) to prevent customs clearance delays. Same-day dispatch is available for orders confirmed and paid before 14:00 CST — contact us directly to arrange.

Units are packed in anti-static bags inside double-wall cartons with foam cushioning and desiccant inserts. Cable coils are secured to prevent connector stress during transit. The packaging is designed to maintain the cable in factory condition through the full logistics chain, including air freight handling and customs inspection.
