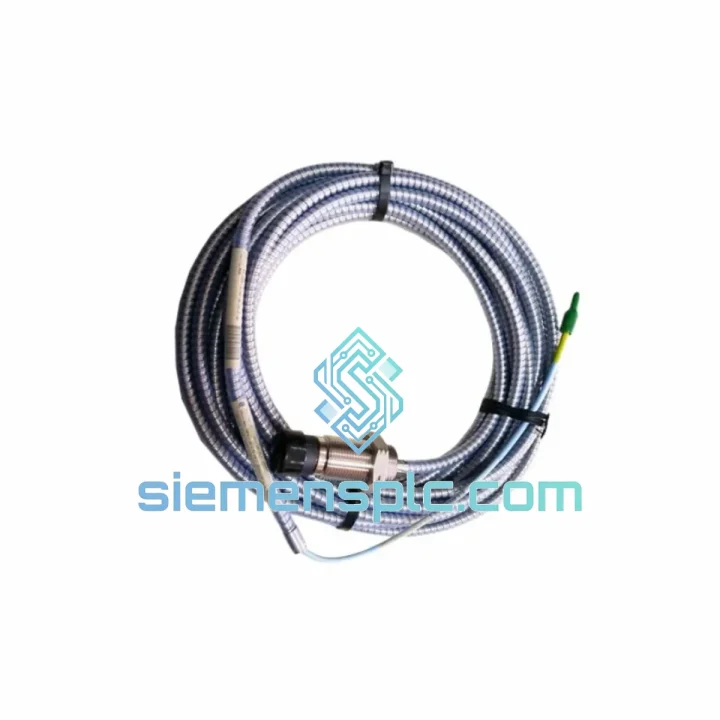

Bently Nevada 330851-02-000-060-10-00-CN Proximity Probe

330851-02-000-060-10-00-CN — Stop the Clock on Your Downtime. Ship Today.

Every hour a turbine or compressor sits idle costs real money — production losses, penalty clauses, emergency labor. The Bently Nevada 330851-02-000-060-10-00-CN is an 8 mm eddy-current proximity probe from the 3300 XL Transducer System, and we stock it in Xiamen for one reason: to get it on a plane to your site before your maintenance window closes. No broker delays. No “lead time TBD.” Stock confirmed, export docs pre-staged, DHL/FedEx booked same day.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with the 3300 XL system surfaces the same failure patterns repeatedly. Here is what to check before you pull the probe and what to watch during swap-out:

Common Fault Codes & Root Causes

• OK relay de-energized / NOT OK LED lit on 3300/16 or 3500/42 monitor: First measure the DC gap voltage at the Proximitor output. Nominal gap for this probe on a steel target is –10.0 VDC at 1.0 mm. If you read –24 V (rail voltage), the probe tip is open-circuit — cable break or connector corrosion. If you read 0 V, the Proximitor itself may be the fault, not the probe.
• High static reading / vibration amplitude pegged: Check the probe mounting bracket for looseness. A 0.1 mm shift in gap changes output by ~0.79 V. Re-gap to the midpoint of the linear range (approximately 1.0–1.27 mm / 40–50 mil) using a non-ferrous feeler gauge with the shaft stationary.
• Intermittent signal spikes: Inspect the integral cable for chafing against rotating guards or hot surfaces. The CN-connector junction is a known ingress point — apply thread sealant and verify the connector is torqued to spec (finger-tight plus 1/4 turn).
• Sensitivity drift over time: Eddy-current probes degrade when exposed to temperatures above 177°C for extended periods. If the bearing housing runs hot, verify thermal insulation between the probe body and the heat source. A sensitivity shift >5% from nominal warrants replacement.

Replacement Procedure — Key Steps

• Record the existing DC gap voltage before removal. This is your baseline for re-gapping the new probe.
• The 330851-02-000-060-10-00-CN uses a standard M10×1.0 probe body thread. Apply anti-seize to the threads before installation — do not use PTFE tape, which can compress and alter gap depth.
• No firmware update or monitor reconfiguration is required for a like-for-like swap within the 3300 XL system. The Proximitor driver circuit self-calibrates to the probe impedance on power-up.
• After installation, perform a static calibration check: rotate the shaft by hand and verify the DC gap voltage tracks smoothly with no step changes. Any discontinuity indicates a wiring fault or connector issue, not a probe defect.
• If replacing a probe in a 3500 rack, the 3500/42M or 3500/42E monitor does not require a rack reset for probe replacement — the channel will re-acquire within one scan cycle after the new probe is connected.

Reliability in Harsh Conditions

The 3300 XL probe system was not designed for a clean lab. It was designed for the inside of a turbine enclosure — where ambient temperatures swing from cold startup to sustained 150°C+ operation, where high-frequency vibration is constant, and where condensation and process fluid mist are facts of life.

The 330851-02-000-060-10-00-CN probe body is constructed from 316 stainless steel with a ceramic-filled epoxy tip. This combination resists chemical attack from lubricating oils, seal gas, and cleaning solvents. The integral cable uses a fluoropolymer jacket rated to 200°C continuous, with a braided stainless armor layer that provides both EMI shielding and mechanical protection against abrasion from insulation blankets and cable ties.

Vibration immunity is a function of the probe’s mass and mounting rigidity. At 8 mm diameter, the probe body presents minimal cross-sectional area to airflow-induced vibration. The M10 thread engagement, when properly torqued, provides a resonant frequency well above the operating range of most rotating machinery (typically >2,000 Hz), preventing the probe itself from becoming a vibration source in the measurement chain.

ATEX and IECEx certifications cover Zone 1 and Zone 2 hazardous area installations, making this probe suitable for deployment in gas compression stations, offshore platforms, and petrochemical process areas without additional enclosure requirements. Confirm the specific zone rating against your area classification before installation.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items. Here is how the process works from the moment you confirm your order:

• Order confirmation (T+0): Stock is physically reserved and pulled from shelf. Export documentation — commercial invoice, packing list, HS code 9031.80 declaration — is generated immediately.
• Export clearance (T+0 to T+4 hours): Xiamen customs pre-clearance is submitted electronically. For standard industrial components, clearance is typically granted within 2–4 hours of submission.
• Carrier handover (T+4 to T+8 hours): Shipment is handed to DHL Express or FedEx International Priority, depending on destination and urgency. Both carriers offer next-flight-out options for critical shipments.
• Transit times (typical): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days. Times are door-to-door from Xiamen.
• Tracking: AWB number is sent to you within 2 hours of carrier pickup. Real-time tracking link provided.
• Import support: We provide HS code documentation and can prepare a formal Certificate of Origin if required by your customs authority. Duties and import VAT are the buyer’s responsibility; we can advise on applicable rates for your destination country.

For plant shutdowns or force majeure situations requiring overnight delivery, contact us directly on WhatsApp for priority handling. We have routed shipments through Hong Kong and Singapore transit hubs to meet 24-hour delivery windows for critical plant restarts.
