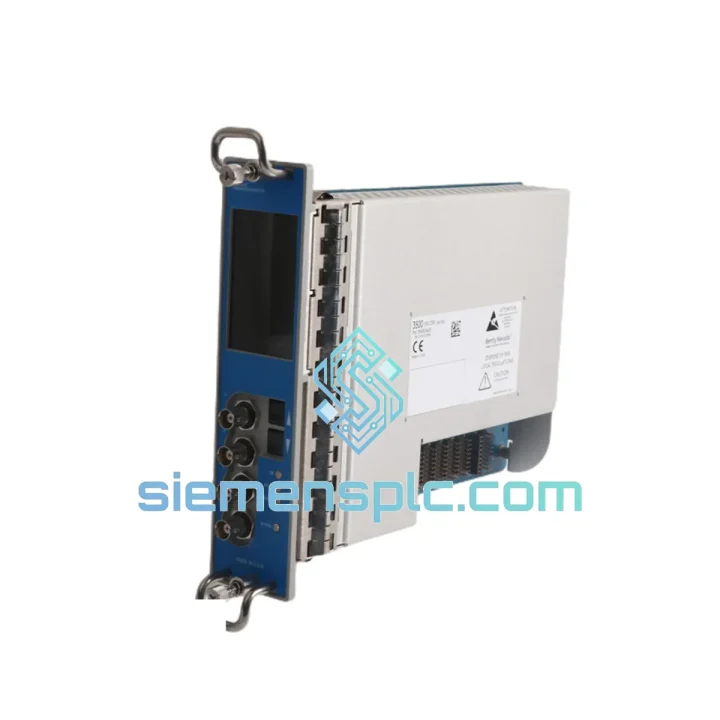

Bently Nevada 3500/42E Vibration Monitor Module – 3500 Series

Bently Nevada 3500/42E — Dual-Channel Proximity Monitor in Rotating Machinery Protection Loops

The Bently Nevada 3500/42E occupies a single slot in the 3500 Series rack and delivers two fully independent measurement channels for eddy-current proximity-based vibration and position sensing. Within a machinery protection loop, this module sits between the field transducer chain — probe, extension cable, and Proximitor sensor — and the rack’s relay/output infrastructure. Each channel processes a raw DC-biased AC signal from the Proximitor, extracts the dynamic (vibration) and static (gap/position) components, compares them against independently configurable Alert and Danger setpoints, and drives relay outputs with configurable latching behavior — all within a deterministic scan cycle that does not depend on host CPU availability. This architecture ensures that protection actions execute even during communication bus saturation or host software faults.

The 3500/42E is the predecessor to the 3500/42M and remains the specified module in a large installed base of turbomachinery protection systems across oil & gas, power generation, and petrochemical facilities. Its measurement architecture supports radial vibration (overall and filtered), axial shaft position (thrust), differential expansion, and eccentricity — making it one of the most versatile single-slot monitor modules in the 3500 platform.

📦 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3500/42E implements a hardware-first protection philosophy: alarm evaluation and relay actuation are executed by dedicated on-board logic, not by the rack’s communication processor. This separation is deliberate. In a plant emergency, the communication bus may be congested with diagnostic traffic; the 3500/42E’s local comparator logic continues to evaluate setpoints and drive relay coils regardless of bus state.

Signal Conditioning Path: The Proximitor output — a DC-biased AC signal where the DC component encodes gap (position) and the AC component encodes shaft vibration — enters the module through a differential input stage. A passive RC network provides first-order anti-aliasing before the signal is split: a high-pass filter path extracts the dynamic vibration component (typically 0.5 Hz to 10 kHz, application-dependent), while a low-pass path retains the DC gap voltage for position measurement. Both paths are processed by independent A/D converters, eliminating cross-contamination between vibration and position readings.

EMC Design: The module’s front-panel I/O connectors are routed through common-mode chokes and transient voltage suppressors (TVS) rated for IEC 61000-4-5 surge immunity. The internal PCB uses a four-layer stackup with dedicated ground planes separating analog signal layers from the digital logic layer, achieving measured common-mode rejection exceeding 60 dB across the 50 Hz–10 kHz band. This is particularly relevant in installations near large motor drives or transformer banks where ground-referenced noise can corrupt proximity probe signals.

Buffered Transducer Output: Each channel provides a buffered, impedance-isolated replica of the raw Proximitor signal at the module’s front connector. This allows a portable data collector or spectrum analyzer to tap the signal without loading the measurement circuit — a critical feature during commissioning and diagnostic campaigns where simultaneous protection and analysis are required.

Setpoint Architecture: Alert and Danger thresholds are stored in non-volatile EEPROM on the module. On power restoration, the module resumes protection with the last-configured setpoints without requiring a host software handshake. This cold-start behavior is essential for unmanned facilities and remote platforms where host system boot time may exceed acceptable protection gap windows.

System Integration Benefits

• Deterministic protection response: Relay actuation latency from threshold crossing to contact closure is ≤ 20 ms, independent of rack communication bus load — meeting API 670 response time requirements without software intervention.
• Dual-variable per channel: Each channel simultaneously reports vibration amplitude and gap position to the host system, doubling the diagnostic data density per rack slot compared to single-variable monitors.
• Non-intrusive signal tap: Buffered transducer outputs allow portable analyzers to connect during live operation without interrupting the protection loop or requiring a bypass — reducing planned downtime for diagnostic access.
• Configurable alarm voting: Alert and Danger relays can be configured for 1-of-1 or 2-of-2 voting logic within the rack, supporting SIL-capable loop architectures per IEC 61511 without external voting hardware.
• System 1 waveform capture: Via the SSB interface, the module streams time-waveform and spectral data to Bently Nevada System 1 software, enabling orbit plots, Bode diagrams, and cascade plots for predictive diagnostics alongside continuous protection.
• Latching relay option: Danger relays can be configured to latch after actuation, requiring an explicit operator reset — preventing automatic restart of machinery after a protection trip without engineering review.
• OK channel supervision: The module continuously monitors its own signal chain integrity. Loss of Proximitor power, open-circuit probe cable, or out-of-range gap voltage de-energizes the OK relay and flags a channel fault in the rack status register, providing diagnostic transparency without requiring a separate loop integrity tester.
• Hot-swap capable: With appropriate rack configuration and bypass procedures, the 3500/42E can be replaced in a live rack, allowing module swap during a running machine without a full system shutdown — a significant operational advantage in continuous-process facilities.

Quality Assurance & Global Logistics

Every 3500/42E unit dispatched from our Xiamen, China facility is sourced exclusively from verified supply channels with documented provenance. Before shipment, each module undergoes a structured inspection protocol: physical integrity check of the front-panel connectors and PCB edge connector, label and serial number authenticity verification against manufacturer records, power-on functional test with channel output verification across the configured measurement range, and firmware revision documentation to confirm compatibility with the target rack configuration.

Units are packed in anti-static shielding bags, placed in foam-lined rigid cartons with humidity indicator cards, and sealed for international transit. We ship via DHL Express, FedEx International Priority, and UPS Worldwide Expedited — with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. For critical plant shutdowns requiring same-day dispatch, contact us before 14:00 CST to confirm cut-off eligibility.

All units carry a 12-month warranty from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a target replacement dispatch of 5 business days from fault confirmation.
