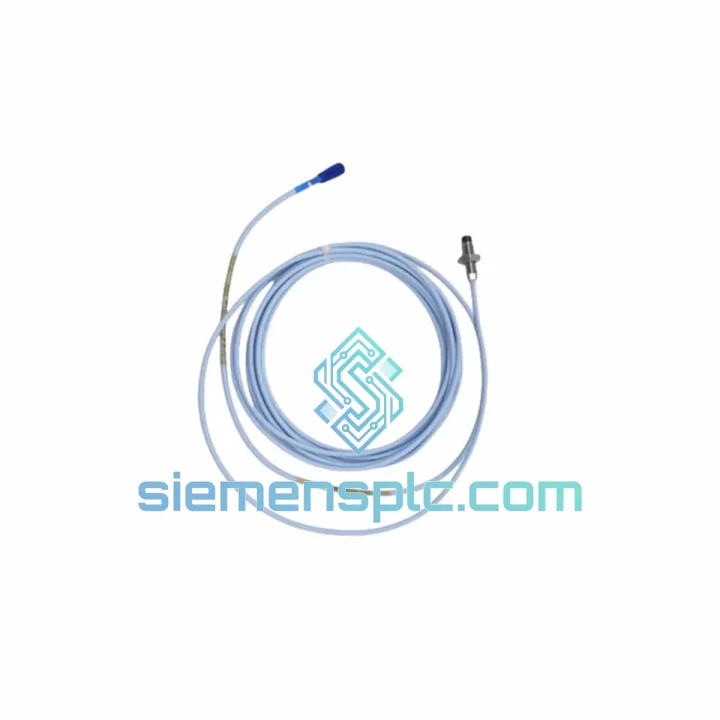

Bently Nevada 330854-080-25-05 FluidLoc Extension Cable

330854-080-25-05 FluidLoc Extension Cable — Stop the Clock on Your Downtime

Every hour a turbine, compressor, or critical rotating machine sits idle costs real money — production losses, penalty clauses, emergency labor rates. When your proximity probe loop goes down and the culprit is a failed extension cable, you don’t need a sales pitch. You need the part, verified, on a plane, today. The Bently Nevada 330854-080-25-05 is in stock at our Xiamen warehouse. We ship DHL Express and FedEx International Priority within 24 hours of order confirmation. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Field experience with 3300 XL loops points to a handful of failure modes that account for the vast majority of unplanned cable replacements. Know these before you pull the old cable:

1. Confirm the fault is the cable, not the probe or driver. Disconnect the extension cable at both ends. Measure DC resistance across the center conductor and shield — an open circuit or resistance outside the OEM-specified range (typically 7–9 Ω for the center conductor on an 8 m run) confirms cable failure. If resistance is nominal, scope the gap voltage at the driver output before condemning the cable.

2. Check the -05 connector suffix before ordering. The last two digits of the part number designate the driver-end connector type. The -05 suffix is a 5-pin MIL-spec connector matching the standard 3300 XL Proximitor. If your driver uses a different termination (e.g., -00 for bare leads, or a different pin count), you need a different suffix. Verify against your driver nameplate before dispatch.

3. Probe-to-cable gap voltage baseline after swap. After installing the 330854-080-25-05, power up the loop and measure the static gap voltage at the driver output with the probe at its nominal installed gap (typically 1.0–1.5 mm for an 8 mm probe). Expected output: approximately -10 VDC ± 0.5 V at nominal gap. If the reading is outside this window, recheck the probe tip-to-target gap before suspecting the new cable.

4. FluidLoc seal integrity check. The FluidLoc junction at the probe end is the primary ingress point in pressurized or wet installations. After installation, visually inspect the seal for deformation or cracking. In high-pressure applications (e.g., compressor seal gas environments), verify the seal rating against your process pressure before energizing.

5. Common fault codes triggered by cable failure. On a 3500 rack system, a failed or open extension cable typically generates a Not OK (NOT OK) channel status and may trigger a Transducer Fault alarm. On System 1 software, look for gap voltage readings pegged at the rail (0 VDC or -24 VDC) with no dynamic signal — this is the signature of an open or shorted cable, not a probe calibration issue. Do not attempt to recalibrate the Proximitor to compensate; replace the cable first.

6. No recalibration required for like-for-like swap. The 330854-080-25-05 is a direct drop-in replacement within an existing 3300 XL loop. Provided the probe model, gap, and driver are unchanged, the system sensitivity (200 mV/mil or 7.87 V/mm) remains valid. Document the post-installation gap voltage in your maintenance record and close the work order.

Reliability in Harsh Conditions

The 330854-080-25-05 was not designed for a clean instrument room. It was designed for the space between a turbine bearing housing and a junction box — a zone of sustained heat, oil mist, mechanical vibration, and occasional water ingress from steam leaks or wash-down operations.

The stainless steel armor jacket handles the mechanical side: it resists crushing loads from cable trays, abrasion from adjacent piping insulation, and the low-frequency fatigue that eventually cracks standard PVC-jacketed cables at clamp points. In field surveys of failed proximity cables, mechanical damage at fixed clamp locations accounts for a significant share of premature failures — the armor on this cable directly addresses that failure mode.

The high-temperature (HT) dielectric rating keeps the cable’s electrical characteristics stable at sustained ambient temperatures that cause standard cables to drift in capacitance and insulation resistance. Capacitance drift in an extension cable shifts the Proximitor’s sensitivity calibration — on a tightly toleranced vibration trip setpoint, that drift can mean nuisance trips or, worse, missed alarms. The HT construction eliminates that variable.

The FluidLoc seal at the probe junction is the detail that separates this cable from generic aftermarket alternatives. Process fluid ingress at the probe-to-cable interface is the single most common cause of proximity loop failures in wet or pressurized environments. The proprietary seal construction maintains the coaxial geometry and dielectric integrity of the junction under sustained fluid exposure — something a standard compression fitting cannot guarantee.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with daily DHL Express and FedEx International Priority departures to every major industrial region. Here is how the logistics process works from the moment you confirm your order:

Day 0 — Order Confirmation: Payment confirmed, part pulled from bonded warehouse stock, inspected against OEM part number markings, and packed in anti-static protective packaging. Export documentation (commercial invoice, packing list, country-of-origin declaration) prepared in parallel.

Day 1 — Dispatch: Shipment handed to DHL Express or FedEx International Priority (your choice, or we recommend based on destination). Tracking number issued to you within 2 hours of carrier pickup. For destinations in the EU, Middle East, and Southeast Asia, transit time is typically 2–4 business days. For North America and Australia, 3–5 business days under normal customs clearance conditions.

Customs & Documentation: We declare all shipments accurately with correct HS codes for industrial instrumentation cables. For customers requiring specific customs documentation (e.g., CITES exemption letters, end-user certificates, or formal commercial invoices for import duty purposes), advise us at the time of order and we will prepare the required paperwork before dispatch.

Urgent Plant Shutdown Protocol: If you are in an active plant shutdown and need the fastest possible delivery, contact us directly via WhatsApp before placing the online order. We can pre-stage the shipment, pre-book the courier slot, and in some cases arrange same-day dispatch for orders confirmed before 14:00 CST.
