Bently Nevada 330902-36-89-05-01 Proximity Probe – 3300 NSv

Bently Nevada 330902-36-89-05-01 — 8 mm Eddy-Current Proximity Probe in the 3300 NSv Machinery Protection Chain

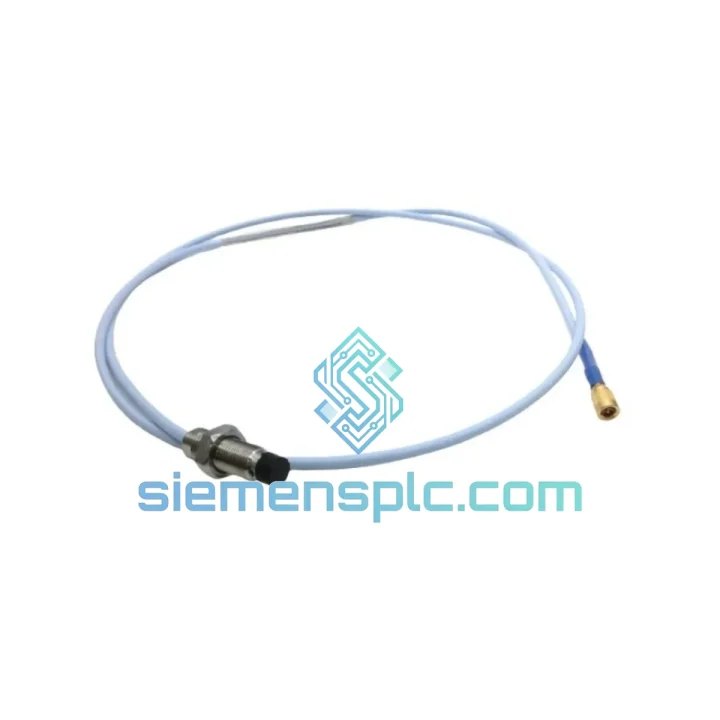

The 330902-36-89-05-01 is an 8 mm eddy-current proximity probe manufactured by Bently Nevada under the 3300 NSv (Non-contacting Vibration) platform. It functions as the primary sensing element in a three-component measurement chain — probe, extension cable, and oscillator-demodulator driver — that converts shaft displacement into a calibrated DC voltage signal for continuous machinery protection monitoring. The part-number suffix string encodes four discrete mechanical and electrical parameters: a 36-inch (914 mm) integral armored cable, an 89-series armor jacket specification, a -05 connector type, and a -01 calibration/sensitivity designation. Each suffix digit is non-interchangeable; substituting an adjacent part number without engineering review invalidates the system’s calibration traceability under API 670 Fifth Edition.

In a rotating machinery protection architecture, the proximity probe occupies the most mechanically exposed position in the signal chain. It threads directly into the bearing housing or probe holder, with its tip face positioned 1.0 mm to 1.5 mm from the target shaft surface — within the linear center of its 0.25 mm to 2.54 mm (10 to 100 mil) measurement range. The eddy-current field generated by the probe’s internal coil penetrates the shaft surface to a skin depth determined by target material conductivity and permeability. Any change in gap distance modulates the coil’s impedance, which the paired driver converts to a voltage output at –7.87 V/mm (–200 mV/mil) nominal sensitivity. This analog output feeds directly into Bently Nevada 3500-series monitor cards or third-party monitors with compatible input specifications.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330902-36-89-05-01 probe operates on the principle of mutual impedance modulation between a high-frequency oscillator coil (typically driven at 500 kHz to 2 MHz by the paired 3300 NSv driver) and the conductive target surface. The coil, encapsulated in the probe tip with a thermally stable ceramic former, generates an alternating magnetic field. When a conductive target enters this field, eddy currents are induced in the surface layer. The depth of eddy-current penetration — the skin depth δ — is governed by δ = √(ρ / πfμ), where ρ is target resistivity, f is oscillator frequency, and μ is magnetic permeability. For a 4140 steel shaft at 1 MHz drive frequency, skin depth is approximately 8 µm, meaning the measurement is sensitive only to the immediate surface condition of the shaft, not its bulk properties.

The -89 armor specification on this part number designates a stainless steel braid over a PTFE primary insulation layer. This construction provides three simultaneous functions: mechanical protection against abrasion and vibration fatigue at the probe-to-holder interface; chemical resistance to hydrocarbon condensates, H₂S, and steam environments common in turbomachinery bearing housings; and controlled characteristic impedance along the cable to minimize signal reflection at the driver input. The 36-inch integral cable length is selected to minimize the number of connector interfaces in the measurement chain — each connector junction introduces a potential impedance discontinuity and a mechanical failure point. By integrating 914 mm of cable directly into the probe body, the design eliminates one connector from the chain between probe tip and extension cable junction.

EMC performance is addressed at the coil level. The probe body’s 316 stainless steel housing acts as a Faraday shield for radially incident electric fields, while the braid armor provides a continuous ground return path that attenuates common-mode noise induced by adjacent high-voltage cabling or variable-frequency drives. The driver’s differential input stage further rejects common-mode interference, achieving typical CMRR values exceeding 60 dB across the 50 Hz to 10 kHz band — sufficient to maintain measurement integrity in switchgear rooms and motor control centers where radiated EMI levels routinely exceed 10 V/m.

System Integration Benefits

• Drop-in calibration traceability: The complete suffix string -36-89-05-01 maps to a specific factory calibration record. Replacing a failed probe with an identical part number restores the measurement chain’s sensitivity and linearity without requiring field recalibration of the driver or monitor card.
• Deterministic analog output latency: The eddy-current measurement chain produces a continuous DC analog voltage with no sampling delay. Signal propagation from shaft displacement to monitor input is limited only by cable capacitance and driver bandwidth — typically under 100 µs — enabling the 3500-series monitor to execute trip logic within one shaft revolution at speeds up to 60,000 RPM.
• API 670 Fifth Edition compliance: The 3300 NSv probe meets the sensor performance requirements of API 670 for radial vibration, axial position, and differential expansion measurement, eliminating the need for additional engineering validation when integrating into new or existing machinery protection systems.
• Dual-measurement capability: A single probe installation can simultaneously provide radial vibration (AC component, 0–peak in µm or mil) and shaft centerline position (DC component, gap voltage) to the monitor card, reducing the number of probe penetrations required in the bearing housing.
• Hazardous area deployment: With appropriate ATEX/IECEx-rated driver and Zener barrier or galvanic isolator, the probe can be installed in Zone 1 or Zone 2 classified areas without modification to the probe body, supporting installations in offshore platforms, LNG terminals, and refinery process units.
• Broad target material compatibility: While factory-calibrated for 4140 steel, the probe can be recalibrated for 17-4 PH stainless steel, Inconel, or titanium shafts using Bently Nevada’s material correction factors, extending applicability to aerospace test rigs and high-temperature gas turbine shafting.
• Diagnostic transparency via gap voltage monitoring: The DC gap voltage output provides a continuous, real-time indicator of probe-to-shaft clearance. Trending this value over time reveals bearing wear, thermal growth, and probe holder loosening before vibration amplitude thresholds are reached — enabling condition-based maintenance decisions rather than time-based overhaul schedules.
• Seamless integration with System 1 software: When connected to a Bently Nevada 3500-series rack, the probe’s output is automatically tagged and trended within the System 1 machinery management platform, providing historical waveform storage, orbit plot generation, and alarm event logging without additional signal conditioning hardware.

Quality Assurance & Global Logistics

Every unit of the 330902-36-89-05-01 supplied through siemensplc.com is sourced from verified, authorized distribution channels with full OEM traceability. Prior to dispatch, each probe undergoes a structured pre-shipment inspection protocol: visual examination of the probe tip face for surface damage or contamination, continuity and insulation resistance verification of the integral cable, connector pin inspection for corrosion or mechanical deformation, and confirmation of part-number labeling against the purchase order. Where available, original Bently Nevada factory test documentation — including sensitivity calibration data and linearity verification — is provided with the shipment.

Packaging follows anti-static and moisture-barrier standards: each probe is individually wrapped in ESD-protective film, placed in a rigid foam-lined carton, and sealed with moisture-desiccant sachets. The outer carton is labeled with part number, serial number (if applicable), and shipment tracking reference. Export documentation — commercial invoice, packing list, and certificate of conformance — is prepared in compliance with Chinese customs regulations and the destination country’s import requirements.

Logistics are managed from our warehouse in Xiamen, China, with primary carrier options including DHL Express, FedEx International Priority, and UPS Worldwide Express. Standard transit times to major industrial hubs are 3–5 business days to Europe and North America, 2–3 business days to Southeast Asia and the Middle East. For plant shutdown emergencies or AOG (Aircraft on Ground equivalent) situations, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST. All shipments include end-to-end tracking and are covered by cargo insurance for the declared value of the goods.
