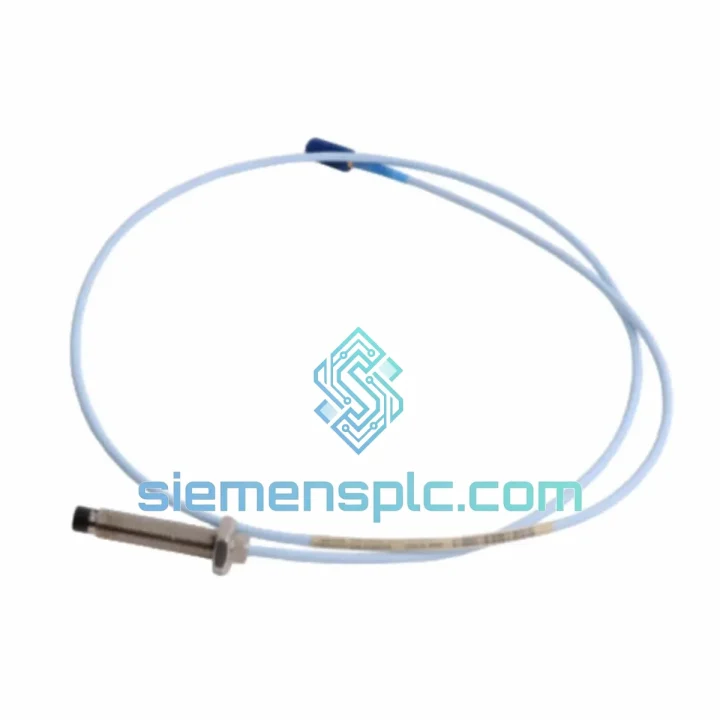

Bently Nevada 330905-00-07-10-12-CN Proximity Probe – 3300 XL Series

Bently Nevada 330905-00-07-10-12-CN: 8 mm Eddy-Current Proximity Probe for Critical Rotating Machinery Protection

The 330905-00-07-10-12-CN is a factory-matched, non-contact eddy-current proximity probe from Bently Nevada’s 3300 XL Transducer System. It is engineered for continuous shaft radial vibration and position measurement on turbomachinery operating under API 670 machinery protection requirements. The probe body carries an M10 × 1.0 threaded housing, a 1.0 m integral cable, and terminates via a 10.0 m extension cable fitted with the CN-type connector — the Chinese-market standard — for direct plug-in compatibility with locally installed junction boxes and monitor racks without field re-wiring.

In a closed-loop protection architecture, this probe functions as the primary sensing element feeding a Proximitor® driver (e.g., 330180-X1-05), which conditions the raw gap-voltage signal into a calibrated DC output. That output is then sampled by a 3300/16 or 3500/42M monitor module at rates sufficient to resolve shaft dynamic events from sub-synchronous instability through high-frequency blade-pass excitation. The probe’s DC-to-10,000 Hz (–3 dB) frequency response ensures no attenuation of diagnostic-grade vibration data across the full operating spectrum of most rotating equipment classes.

The eddy-current operating principle imposes zero mechanical load on the shaft. There is no contact, no wear surface, and no lubrication requirement. The probe is rated for continuous 24/7 operation across multi-year maintenance intervals, making it the preferred sensing technology for unspared critical machines where measurement interruption is not operationally acceptable.

📩 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 330905-00-07-10-12-CN operates on the principle of electromagnetic induction between a coil embedded in the probe tip and the conductive target surface. An oscillator within the Proximitor® driver excites the coil at a fixed carrier frequency, typically in the range of 500 kHz to 2 MHz depending on driver variant. As the gap between probe tip and shaft surface changes, eddy currents induced in the target alter the coil’s impedance. The driver demodulates this impedance change into a proportional DC voltage output, delivering a linear transfer function of 7.87 V/mm across the calibrated range.

EMC Design: The probe cable is a coaxial assembly with a continuous shield bonded at the Proximitor® driver chassis ground. This construction attenuates common-mode noise from adjacent power cables, variable-frequency drives, and high-current bus bars — all of which are present in typical turbomachinery enclosures. The CN connector maintains shield continuity through the mating interface, preventing ground loops that would otherwise inject 50/60 Hz interference into the measurement signal.

Thermal Stability: The probe body is rated to +177°C, which corresponds to the bearing housing surface temperatures encountered on HP turbine sections and hot-gas expanders. The coil former and potting compound are selected for dimensional stability across this range, ensuring that thermal expansion of the probe body does not introduce a false DC offset into the gap measurement — a failure mode common in lower-grade sensors operating near their thermal limits.

Matched-Set Calibration: The –12 suffix in the part number encodes the total cable length (12 m). Bently Nevada calibrates each probe, extension cable, and driver as a matched set at the factory. Substituting a cable of different length or a driver from a different calibration batch will shift the scale factor and zero-gap voltage, producing systematic measurement error. This matched-set architecture eliminates field calibration variables and ensures that the installed system meets the ±1% linearity specification without site-level adjustment.

Non-Contact Wear Profile: Because the sensing mechanism is purely electromagnetic, there is no mechanical contact between probe and shaft at any point in the operating cycle. The probe does not degrade the shaft surface finish, does not generate debris, and does not require periodic replacement due to wear. The primary life-limiting mechanism is cable fatigue at the probe body exit — addressed by the strain-relief boot and the IP67 sealing of the cable entry point.

System Integration Benefits

• Direct 3300/3500 Monitor Compatibility: The 330905 probe integrates without signal conditioning adapters into 3300/16, 3300/20, and 3500/42M monitor modules. Channel configuration requires only gap voltage verification at commissioning — no firmware changes or scaling adjustments.
• API 670 Trip Logic Readiness: The probe’s output range (–2 to –18 VDC) maps directly to the alert and danger setpoint registers of 3500-series monitors. Alarm logic can be configured for absolute vibration level, rate-of-change, or differential shaft position without external signal processing.
• Shaft Orbit Reconstruction: Two probes mounted at 90° (X–Y configuration) on the same bearing plane provide the orthogonal displacement signals required for real-time shaft orbit display in System 1 or equivalent condition monitoring software. The matched sensitivity of 7.87 V/mm on both channels ensures a geometrically accurate orbit without per-channel scaling correction.
• Eccentricity Ratio Calculation: The DC component of the probe output represents static shaft centerline position. Combined with bearing clearance data, this value feeds eccentricity ratio calculations used to assess hydrodynamic bearing film stability — a leading indicator of oil whirl and oil whip instability in sleeve-bearing machines.
• Differential Expansion Measurement: In axial probe configurations (thrust position monitoring), the 330905 provides the continuous DC position signal required to calculate differential thermal expansion between rotor and casing during startup and shutdown transients. Resolution of 0.025 mm (1 mil) is achievable within the calibrated range.
• SIL-Capable Architecture: When integrated into a 3500-series Safety Instrumented System configuration with redundant voting logic (1oo2 or 2oo3), the probe’s deterministic output supports IEC 61511 functional safety requirements for machinery protection loops. The probe itself does not carry a SIL rating, but its stable transfer function and low failure rate support overall SIL 2 loop calculations.
• Diagnostic Transparency via Proximitor Output: The raw –24 VDC-powered Proximitor output is accessible at the field junction box terminal strip. Maintenance technicians can verify probe gap, cable continuity, and driver health with a standard digital multimeter — no proprietary tools required. This reduces mean time to diagnose (MTTD) during unplanned shutdowns.
• CN Connector Ecosystem Compatibility: The –CN suffix designates the Chinese-market connector standard used on the extension cable termination. This ensures mechanical and electrical compatibility with junction boxes, marshalling panels, and cable trays installed to GB/T standards in Chinese petrochemical, power generation, and steel industry facilities — eliminating the field re-wiring cost associated with importing standard global-variant probes.

Quality Assurance & Global Logistics

Every 330905-00-07-10-12-CN unit dispatched from our Xiamen, China facility is sourced through verified industrial supply channels and subjected to a structured pre-shipment inspection protocol:

• Visual inspection of probe tip geometry, cable jacket integrity, and CN connector body for physical damage or corrosion
• Connector pin continuity and cable shield resistance measurement
• Part number label and date code cross-reference against Bently Nevada documentation
• Anti-static packaging with desiccant and humidity indicator card
• Certificate of Conformance (CoC) available upon request
• 12-month warranty from dispatch date covering manufacturing defects

Logistics from Xiamen cover all major global destinations. Standard air freight transit times: 3–5 business days to Southeast Asia and Middle East; 5–7 business days to Europe and North America. DHL, FedEx, and UPS express options are available for plant-down emergency requirements. Export documentation including commercial invoice, packing list, and HS code declaration (HS 9031.80) is prepared for all international shipments. Customers in regions requiring ATEX or IECEx documentation should contact us prior to order placement to confirm variant availability.
