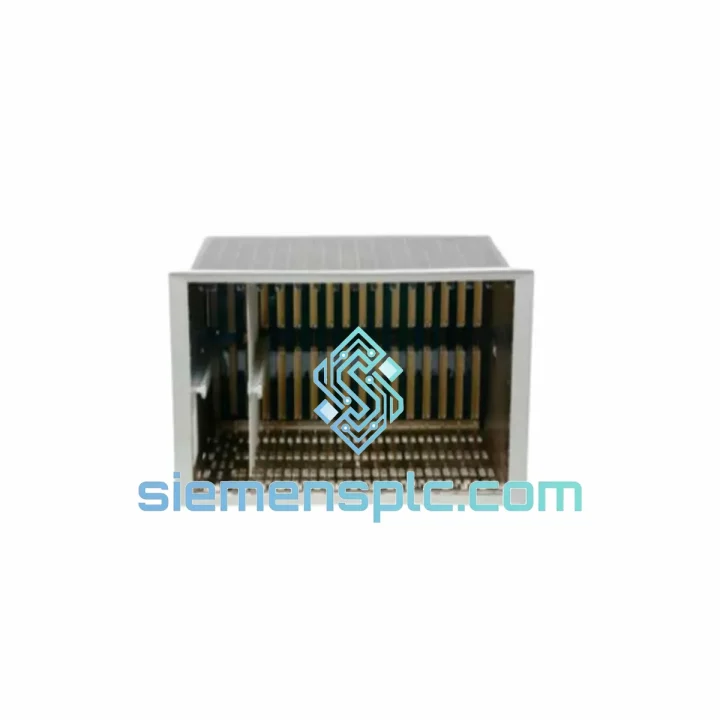

Bently Nevada 3500/05-01-01-00-00-01 System Rack Module

3500/05-01-01-00-00-01 Rack Chassis Down? Every Minute Costs You — We Ship Today from Xiamen

Your 3500 Series rack is the nerve center of your machinery protection system. When the Bently Nevada 3500/05-01-01-00-00-01 chassis fails — whether from backplane corrosion, a blown power bus, or physical damage from a forced shutdown — every turbine, compressor, and pump on that rack goes dark. No vibration data. No trip logic. No protection. That’s not a maintenance event; that’s a production crisis.

We stock the 3500/05-01-01-00-00-01 at our Xiamen warehouse specifically for this scenario. Verified, tested, export-ready. DHL/FedEx same-day dispatch on confirmed orders before 15:00 CST. While your procurement team is still drafting the PO, your replacement is already moving.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling dozens of 3500 rack swap-outs in the field, here are the failure modes and gotchas that actually matter:

Common Failure Indicators on the 3500/05 Chassis:

• All module OK LEDs extinguished simultaneously — points to backplane power bus failure, not individual module faults. Swap the chassis, not the monitors.
• Intermittent communication dropouts on 3500/92 gateway — often caused by backplane connector oxidation on the rack, especially in high-humidity coastal environments. Clean contacts first; if dropout persists, the chassis is suspect.
• Rack-level fault relay triggered with no individual module alarms — check the rack’s internal watchdog circuit. This is a chassis-level function, not module-level.
• Physical damage to slot guides or backplane pins — common after forced module extraction during emergency shutdowns. Inspect all 14 slot connectors before re-populating a replacement chassis.

Replacement Procedure — Field Checklist:

• Document all module slot positions and option string configurations before removal. Photograph the populated rack.
• Power down via the 3500/15 power supply — do not pull modules live unless the system is in bypass mode.
• Remove modules sequentially from right to left (slot 14 to slot 1) to avoid backplane stress.
• On the replacement 3500/05-01-01-00-00-01, verify the option string label on the chassis side panel matches your original unit exactly — all six segments.
• Re-seat modules in original slot order. The 3500 system uses slot-based addressing; the 3500/20 Keyphasor and 3500/92 gateway are position-sensitive in some configurations.
• After power-up, allow 90 seconds for the rack to complete self-test before checking module status LEDs.
• Reconnect the System Monitor software and verify all channel configurations are retained in the individual monitor modules — rack chassis replacement does not affect module-level EEPROM settings.
• Run a full OK relay test before returning the system to protection service.

Firmware & Configuration Notes:

• The 3500/05 chassis itself carries no firmware — it is a passive backplane and mechanical structure. Firmware concerns apply to the individual monitor modules (3500/40M, 3500/42M, etc.), not the rack.
• If your system uses the 3500/93 TMR Communication Gateway, verify the rack’s backplane revision is compatible with TMR voting logic before substituting chassis variants.
• Option Segment 2 (backplane type: 01 = standard, 02 = enhanced) is the most critical compatibility parameter. Mixing standard and enhanced backplane racks in a multi-rack system is supported, but individual rack configurations must remain internally consistent.

Reliability in Harsh Conditions

The 3500/05-01-01-00-00-01 was engineered for continuous duty in the environments where machinery protection matters most — not climate-controlled server rooms, but real industrial floors.

The chassis structure uses a heavy-gauge steel frame with corrosion-resistant coating, rated for operation from 0°C to 65°C ambient. In practice, we’ve seen these racks running reliably in offshore platform enclosures where ambient temperatures swing 40°C between day and night cycles, and in petrochemical facilities where airborne H₂S and particulate contamination are constant concerns.

The backplane connector system uses gold-plated contacts with positive retention force — designed to maintain signal integrity under the continuous low-frequency vibration present in turbine halls and compressor buildings. IEC 68-2-6 vibration testing covers the operational frequency ranges typical of rotating machinery foundations.

Humidity performance is rated to 95% non-condensing. For installations in tropical or coastal environments where condensation is a real risk, the chassis design accommodates conformal-coated monitor modules without modification. The rack itself does not require conformal coating — the backplane is protected by the module face plates when fully populated.

Units sourced from our Xiamen warehouse undergo a pre-shipment inspection protocol: visual examination of all backplane connector pins, continuity check of the power distribution bus, and functional verification of the rack’s OK relay output circuit. Any unit showing contact wear, pin damage, or bus resistance out of spec is quarantined — it does not ship.

Global Express Logistics

Our Xiamen warehouse is positioned specifically for fast international dispatch. Xiamen Gaoqi International Airport (XMN) has direct cargo connections to DHL and FedEx international hubs, with cut-off times that allow same-day air freight booking for orders confirmed before 15:00 CST.

Standard Dispatch Timeline:

• Order confirmed before 15:00 CST: Same-day dispatch via DHL Express or FedEx International Priority
• Southeast Asia (SG, MY, TH, ID): 1–2 business days door-to-door
• Middle East (AE, SA, QA, KW): 2–3 business days
• Europe (DE, NL, GB, FR): 3–4 business days
• North America (US, CA): 3–5 business days
• Australia / New Zealand: 3–4 business days

Export Documentation Included:

• Commercial Invoice (with HS Code 8537.10 for customs clearance)
• Packing List with unit weight and dimensions
• Certificate of Origin (China)
• Inspection report available on request
• DHL/FedEx tracking number provided within 2 hours of dispatch

Packaging: each 3500/05-01-01-00-00-01 chassis ships in a custom foam-lined export carton with anti-static inner wrap and corner protection. The unit arrives ready to install — no repackaging required.

For projects requiring multiple racks or consolidated shipments with other 3500 Series modules, contact us for a single-shipment solution. We regularly consolidate multi-line orders to reduce freight cost and customs complexity for our customers.
