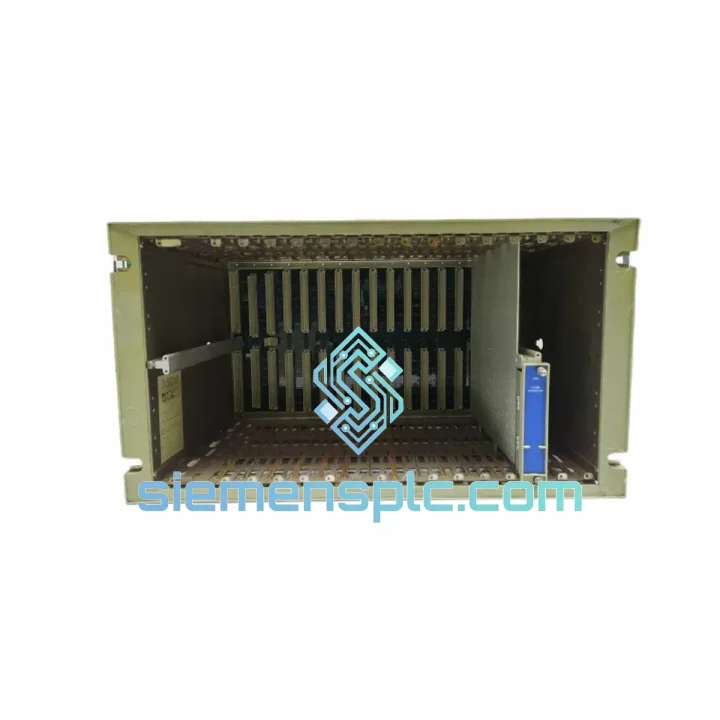

Bently Nevada 3500/05-01-02-00-00-00 Rack Chassis

3500/05-01-02-00-00-00 Rack Chassis: Every Hour of Downtime Costs You — We Ship Today

Your 3500 Series machinery protection system is offline. The turbine is locked out. Production is bleeding money by the minute. The Bently Nevada 3500/05-01-02-00-00-00 19-inch rack chassis is the structural and electrical backbone of your entire 3500 MPS installation — without it, every monitor card, relay module, and I/O board in that panel is dead weight. We stock this chassis and we ship same-day from Xiamen. That’s the only thing that matters right now.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After 10 years of emergency callouts on 3500 Series panels, here are the failure modes and swap pitfalls that actually matter in the field:

Most Common Failure Points on the 3500/05 Chassis:

• Backplane connector corrosion: In high-humidity environments (coastal plants, offshore platforms), the gold-plated backplane edge connectors oxidize. Symptom: intermittent module faults that clear when you reseat cards. If reseating no longer helps, the chassis backplane is compromised — replace the rack, not the modules.
• Slot guide rail damage: Forced insertion of modules during vibration events or rushed maintenance cracks the plastic card guides. A cracked guide causes the module to sit at a slight angle, creating intermittent backplane contact. Inspect all guides before re-populating a replacement chassis.
• Ground plane degradation: The chassis ground strap between the rack frame and the cabinet earth bar is frequently overlooked during replacement. A floating chassis ground causes common-mode noise on vibration channels — you’ll see erratic gap voltage readings and false alerts on the 3500/40 or 3500/42 monitors.
• Rack address DIP switch mismatch: The 3500/05 chassis does not have a rack address DIP switch itself, but the 3500/20 Rack Interface Module (RIM) installed in slot 1 carries the rack address. When swapping chassis, the RIM transfers with the rack — verify the rack address in System 1 software matches the RIM configuration before going live. A mismatch causes the entire rack to appear offline in the monitoring software.

Step-by-Step Replacement Procedure:

1. Document before you touch anything. Photograph the front panel with all modules installed, note slot positions, and record the RIM rack address setting. Pull the System 1 configuration backup if accessible.
2. Inhibit trips at the DCS/SIS level. Do not rely on the 3500 system’s own inhibit function during chassis swap — the system will be fully de-energized. Coordinate with the control room.
3. Remove modules in reverse slot order (slot 14 to slot 1). Label each module with its slot number using tape. The 3500/20 RIM in slot 1 comes out last.
4. Transfer the power supply module(s) first into the new chassis. Power up the empty chassis and verify the PWR LED on the 3500/15 or 3500/25 is solid green before installing any monitor modules.
5. Re-install modules in forward slot order (slot 1 to slot 14). Seat each card firmly until the ejector levers click. Do not force.
6. Verify firmware compatibility. If the replacement chassis has a different backplane revision (check the label on the rear of the chassis), confirm with Bently Nevada that your existing module firmware versions are supported. Mismatched backplane revisions with older firmware can cause the RIM to fail to enumerate modules correctly.
7. Restore System 1 configuration and perform a full channel-by-channel functional check before releasing trips.

Common Fault Codes After Chassis Swap:

• “Rack Communication Fault” in System 1 → Check RIM rack address, Ethernet cable to RIM, and verify the RIM firmware version matches the System 1 server version.
• “Module Not Responding” on specific slots → Reseat the module. If persistent, inspect the backplane connector pins on the new chassis for shipping damage.
• “Configuration Mismatch” → The System 1 database has the old rack’s module configuration. Re-download the configuration from the server to the RIM.

Reliability in Harsh Conditions

The 3500/05-01-02-00-00-00 chassis was engineered for the environments where failures are not an option. The steel rack frame is designed to IEC 60068-2 mechanical shock and vibration standards — the same specs that govern equipment on offshore platforms subject to wave-induced structural motion and gas turbine skid vibration. The backplane PCB uses conformal coating on production variants, providing resistance to condensation and airborne contaminants common in petrochemical and pulp-and-paper facilities.

Operating range of 0°C to 65°C covers the majority of industrial control room and field enclosure environments. For installations in extreme ambient conditions — desert sites exceeding 50°C ambient, or arctic installations — the extended temperature option variant (position 5 = 1 in the part number) should be specified. The standard chassis has been deployed in LNG terminals, offshore FPSOs, and open-cycle gas turbine power plants across six continents without modification.

The 19-inch EIA form factor and front-access module design mean maintenance technicians can swap individual monitor cards without removing the rack from the cabinet — a critical feature when the rack is installed in a congested turbine control panel with limited rear access. The chassis mounting ears are reinforced to handle repeated module insertion cycles over a 20+ year service life.

Global Express Logistics

Our Xiamen warehouse operates on a same-day dispatch model for in-stock items. Here’s exactly how your order moves:

• Order confirmation by 14:00 CST → same-day dispatch via DHL Express or FedEx International Priority.
• Export documentation: Commercial invoice, packing list, and ECCN classification prepared in-house. No delays waiting for freight forwarder paperwork.
• Transit times (door-to-door): Southeast Asia 1–2 days | Middle East 2–3 days | Europe 3–4 days | Americas 3–5 days.
• Tracking: AWB number sent within 2 hours of dispatch. Real-time tracking link provided via WhatsApp or email — your choice.
• Emergency freight: For genuine plant emergencies, we coordinate charter freight and hand-carry options. Contact us directly on WhatsApp for fastest response.
• Customs clearance: We pre-classify all shipments with correct HS codes to prevent customs holds. Destination country import documentation support available on request.

We have shipped 3500 Series components to refineries in Saudi Arabia, power plants in Vietnam, paper mills in Finland, and compressor stations in Canada — all on emergency timelines. We know what it takes to get a part through customs and onto your site fast.
