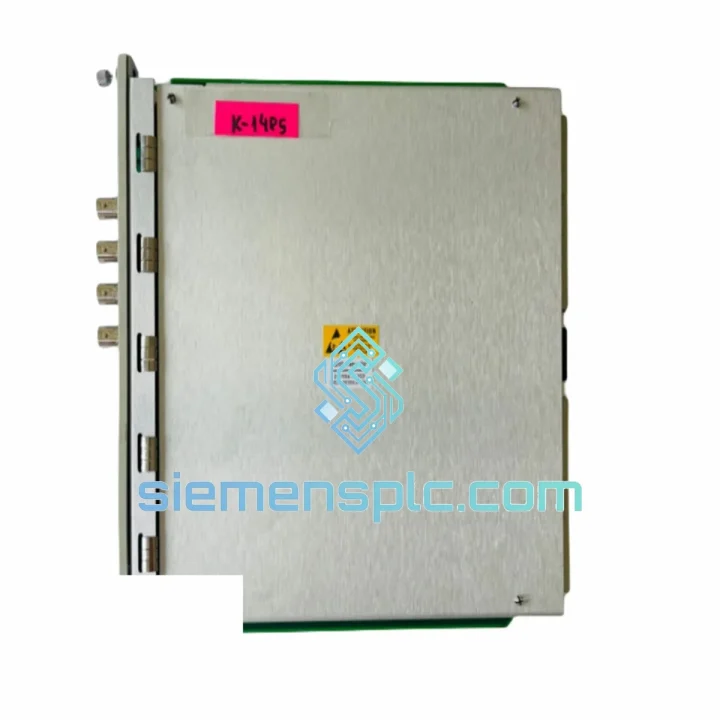

Bently Nevada 3500/42M 176449-02 Vibration Monitor – 3500 Series

Bently Nevada 3500/42M 176449-02 — Dual-Channel Proximitor / Seismic Monitor in the 3500 Series Machinery Protection Platform

The Bently Nevada 3500/42M (P/N 176449-02) occupies a single slot in the 3500/05 rack and delivers two fully independent measurement channels capable of accepting either eddy-current proximity probe signals or seismic transducer signals — velocity or accelerometer — without hardware modification between channel types. This architectural decision eliminates the need for separate monitor cards per transducer technology, reducing rack slot consumption and simplifying spare-parts inventory for facilities that operate mixed machine fleets: steam turbines alongside centrifugal compressors, or large fans alongside reciprocating pumps.

Within the 3500 platform, the /42M variant carries the -02 revision designation, which reflects a documented engineering change order (ECO) applied to the base 176449-01 design. Physical form factor, backplane connector pinout, and I/O module compatibility are preserved across revisions, making the 176449-02 a verified drop-in replacement in existing 3500/05 rack installations. Firmware compatibility with the installed System 1 software version should be confirmed prior to commissioning.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 3500/42M is built around a signal-conditioning front end that branches into two parallel processing paths — one per channel — before converging at the backplane communication interface. Each channel’s analog front end applies a programmable gain stage followed by a band-pass filter bank. For proximity probe inputs, the DC gap voltage is extracted and compared against configurable position setpoints, while the AC component is routed through a tracking filter to isolate 1X and 2X vibration vectors. For seismic inputs, the module applies integration (velocity → displacement) or differentiation (velocity → acceleration) in the digital domain after ADC conversion, avoiding the phase distortion introduced by analog integrator circuits.

EMC hardening is implemented at three levels. First, the I/O module rear-entry terminal block incorporates transient voltage suppression (TVS) diodes on each signal line, clamping field-induced transients before they reach the monitor card. Second, the backplane connector uses a ground-plane interleaving scheme that reduces crosstalk between adjacent slots to below –60 dB across the 10 Hz–10 kHz measurement band. Third, the monitor card PCB employs a four-layer stackup with dedicated analog and digital ground planes separated by a split-plane boundary at the ADC, preventing digital switching noise from coupling into the measurement path.

Trip relay logic is implemented in hardware-latched circuitry independent of the card’s microprocessor. When a measured parameter crosses a Danger setpoint, the relay de-energizes within the hardware response time specification — typically under 20 ms from transducer signal crossing to relay state change — regardless of processor load or communication bus activity. This deterministic trip behavior is the architectural basis for API 670 compliance, which mandates that protection functions not be dependent on software execution state.

The -02 revision introduced an updated FPGA image that extends the dynamic range of the seismic channel’s ADC interface from 16-bit to 18-bit effective resolution, reducing the noise floor on low-amplitude seismic measurements by approximately 12 dB compared to the -01 revision. This improvement is particularly relevant for early-fault detection on large, slow-speed machines where vibration amplitudes at fault frequencies may be only marginally above background noise.

System Integration Benefits

• Single-slot dual-technology coverage: One 3500/42M replaces two single-technology monitor cards in mixed-transducer installations, freeing rack slots for additional measurement points or redundant I/O modules.
• Deterministic protection response: Hardware-latched relay logic delivers sub-20 ms trip response independent of software execution state, satisfying API 670 Section 5.3 response time requirements.
• Configurable filter architecture: Per-channel band-pass filter cutoffs are software-selectable, allowing the same card to be optimized for high-speed turbine monitoring (10–1000 Hz) or low-speed machinery (0.5–100 Hz) without hardware changes.
• Hot-swap rack insertion: The 3500/05 rack architecture supports live card insertion and removal. The /42M participates in this scheme, enabling maintenance without process shutdown — a critical capability in continuous-operation facilities.
• System 1 integration depth: The module exposes full channel health diagnostics — probe gap voltage, transducer OK status, and internal self-test results — to System 1 condition monitoring software via the rack gateway, enabling predictive maintenance workflows beyond simple threshold alarming.
• TMR rack compatibility: When installed in a Triple Modular Redundant 3500/05 rack with the appropriate TMR I/O module, the /42M participates in 2-of-3 voting logic, eliminating spurious trips from single-channel faults in safety-critical applications.
• Backward-compatible form factor: The 176449-02 is dimensionally and electrically identical to the 176449-01, allowing direct slot replacement in existing rack installations without re-cabling or rack reconfiguration.
• Modbus TCP / OPC-UA data export: Processed measurement values, alarm states, and channel diagnostics are available to DCS and SCADA systems via the rack’s communication gateway, supporting integration with Emerson DeltaV, Honeywell Experion, ABB 800xA, and Siemens PCS 7 platforms.
• Configurable OK relay logic: The module’s OK relay can be configured to reflect individual channel health or composite rack health, providing granular fault isolation information to the plant control system without requiring System 1 software access.
• Extended seismic dynamic range (rev -02): The 18-bit effective ADC resolution on seismic channels reduces the noise floor by ~12 dB versus the -01 revision, improving early-fault sensitivity on low-amplitude vibration signatures.

Quality Assurance & Global Logistics

Every Bently Nevada 3500/42M 176449-02 unit offered through siemensplc.com is sourced from documented channels: OEM-decommissioned plant upgrades, authorized surplus distributors, and verified industrial asset liquidations. Each module undergoes a structured pre-shipment verification process: visual inspection of PCB, connector pins, and front-panel indicators; firmware version recording against the unit serial number; functional bench test confirming channel measurement accuracy, relay operation, and backplane communication; and ESD-safe packaging in anti-static bag with foam-lined carton.

A Certificate of Conformance (CoC) documenting the inspection steps, serial number, firmware revision, and test date is available for all B2B orders upon request. Serial number and hardware revision records are retained for traceability.

Shipments originate from our warehouse in Xiamen, China — a major logistics hub with direct access to DHL Express, FedEx International Priority, UPS Worldwide Express, and TNT Economy services. Standard export documentation — commercial invoice, packing list, and HS code declaration — is prepared for every shipment. For orders requiring expedited delivery, air freight to major industrial hubs in Europe, North America, Southeast Asia, and the Middle East typically achieves 3–5 business day door-to-door transit. Sea freight consolidation is available for volume orders. All units carry a 12-month warranty from the date of shipment.
