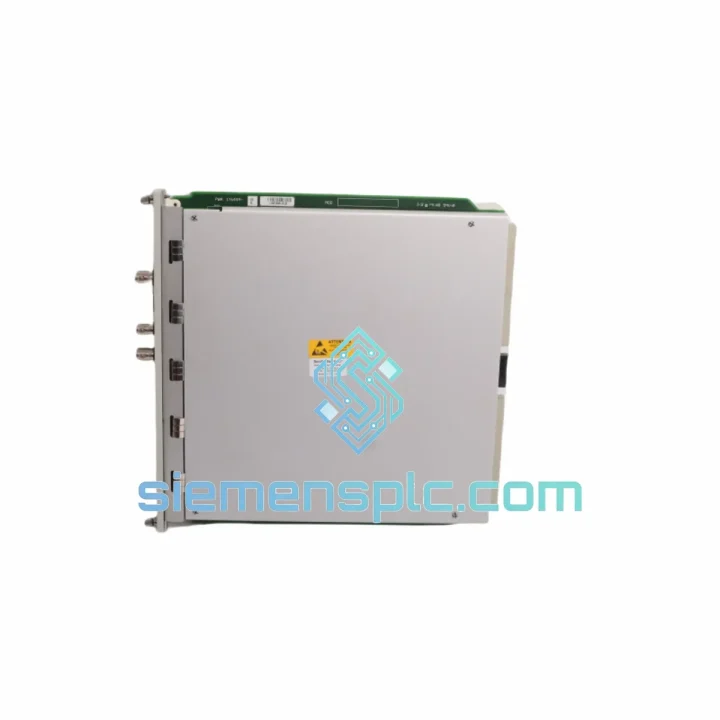

Bently Nevada 3500/42M 176449-99 Vibration Monitor

3500/42M 176449-99 — Stop the Clock on Your Unplanned Shutdown

Every hour your turbine or compressor sits idle, you’re bleeding money. A failed Proximitor/Seismic Monitor module shouldn’t be the bottleneck. We stock the Bently Nevada 3500/42M 176449-99 in Xiamen, China — inspected, powered-on verified, and ready to leave our warehouse today. While your procurement team is still drafting an RFQ to the OEM, your replacement module can already be on a DHL Express flight to your site.

This is not a refurbished unit. Not a grey-market pull. It is 100% original Bently Nevada hardware, stored in an ESD-safe, climate-controlled facility, with serial number and firmware revision documented before it ships. If your protection system is down, this is the fastest legitimate path back to operation.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on 3500 racks, these are the failure modes and swap pitfalls that actually matter:

Common failure signatures for the 3500/42M:

• OK LED off, no relay output — Most often a backplane power issue or a corrupted module configuration. Before condemning the module, reseat it and check the 3500/15 or 3500/20 power supply output. If the OK LED stays dark after reseating, the module’s internal DSP has likely failed — replace the module.
• Channel 1 or 2 reading -24 VDC gap (open circuit) — Probe cable break or connector corrosion at the I/O module terminal block on the rear of the rack. Swap the I/O module first; if the fault follows the front module, replace the 3500/42M.
• Intermittent Alert trips with no process change — Check the Keyphasor signal integrity. A degraded Keyphasor module (3500/25) causes erratic 1X/2X vector calculations that manifest as false Alert trips on the 3500/42M. Verify Keyphasor gap voltage is within –10 VDC ± 1 VDC.
• Seismic channel pegged at full scale — Accelerometer cable shield grounded at both ends creates a ground loop. Lift the shield at the field junction box and recheck. If the reading persists, the accelerometer itself has failed, not the monitor module.
• Configuration lost after power cycle — The module’s non-volatile memory has failed. This is a definitive replace condition. Do not attempt to re-download configuration to a module exhibiting this fault — it will not hold.

Replacement procedure — critical steps:

• Step 1 — Export configuration first. Open System 1 or TDIXnet, connect to the rack, and export the full rack configuration file (.rck) before touching anything. If the replacement module arrives with a blank config, you need this file.
• Step 2 — Bypass relay outputs. Notify the control room and bypass the Alert/Danger relay outputs at the SIS or DCS before pulling the module. Hot-swap is supported, but an unbypasssed Danger relay will trip the machine the moment the module loses power during extraction.
• Step 3 — Note the I/O module revision. The rear I/O module must match the front monitor module revision. A 3500/42M Rev D front module paired with a Rev B I/O module will cause channel configuration errors. Check the label on the rear I/O module before ordering.
• Step 4 — Download configuration to the new module. After seating the replacement, use System 1 to download the saved .rck configuration. The module will not self-configure from the backplane — you must push the config explicitly.
• Step 5 — Verify gap voltages before removing bypass. With the machine at rest, confirm both channel gap voltages are within the probe system’s linear range (typically –7 VDC to –18 VDC for 3300 XL probes). Only then remove the relay bypass and return the system to normal protection.

Reliability in Harsh Conditions

The 3500/42M was designed for environments that would destroy consumer-grade electronics. The module’s conformal-coated PCB resists condensation and airborne contaminants common in coastal petrochemical plants and offshore platforms. Vibration isolation is built into the rack chassis design — the module itself has no moving parts and no electrolytic capacitors in the signal path, which eliminates the most common age-related failure mechanism in analog electronics.

In high-temperature turbine halls where ambient temperatures regularly reach 55–60 °C, the 3500/42M’s rated upper limit of 65 °C provides genuine operating margin, not a paper specification. The module’s power consumption is low enough that even in a fully populated 3500 rack with redundant power supplies, thermal derating is not a concern under normal ventilation.

For offshore and marine applications, the FM and CSA approvals cover Class I, Division 2 hazardous locations. When installed with Bently Nevada-approved Zener barriers in the field wiring circuit, the system meets the requirements for Zone 1 ATEX installations — a configuration we can document and support with the appropriate compliance paperwork.

Units in our inventory are stored at controlled temperature (18–25 °C) and humidity (40–60% RH) in anti-static packaging. Each module is individually bagged with a desiccant pack and stored in a foam-lined ESD box. Long-term storage does not degrade the module’s performance — there are no batteries, no electrolytic capacitors that dry out, and no firmware that expires.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province — one of China’s primary export hubs with direct access to Xiamen Gaoqi International Airport (XMN) and daily DHL and FedEx pickup schedules. This is not a drop-ship arrangement. The module is physically in our facility, and we control the packing and handover to the carrier.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Malaysia, Indonesia): DHL Express — 1 to 2 business days
• Middle East (UAE, Saudi Arabia, Qatar, Kuwait): DHL / FedEx International Priority — 2 to 3 business days
• Europe (Germany, Netherlands, UK, France, Italy): DHL Express Worldwide — 3 to 4 business days
• North America (USA, Canada, Mexico): FedEx International Priority — 3 to 5 business days
• South America (Brazil, Chile, Colombia): DHL Express — 4 to 6 business days
• Australia / New Zealand: DHL Express — 3 to 4 business days

Every shipment includes a commercial invoice, packing list, and certificate of conformance. For customers requiring ATA Carnet documentation or specific customs HS code declarations (HS 8537.10 for programmable control modules), we prepare the paperwork in advance to prevent customs clearance delays. If your site requires a specific carrier account number for billing, we accommodate that at no additional charge.

For genuinely critical shutdowns where hours matter, contact us via WhatsApp before placing the order. We can confirm the exact unit’s serial number, photograph it, and coordinate same-day handover to DHL if your order is confirmed before 15:00 CST.
