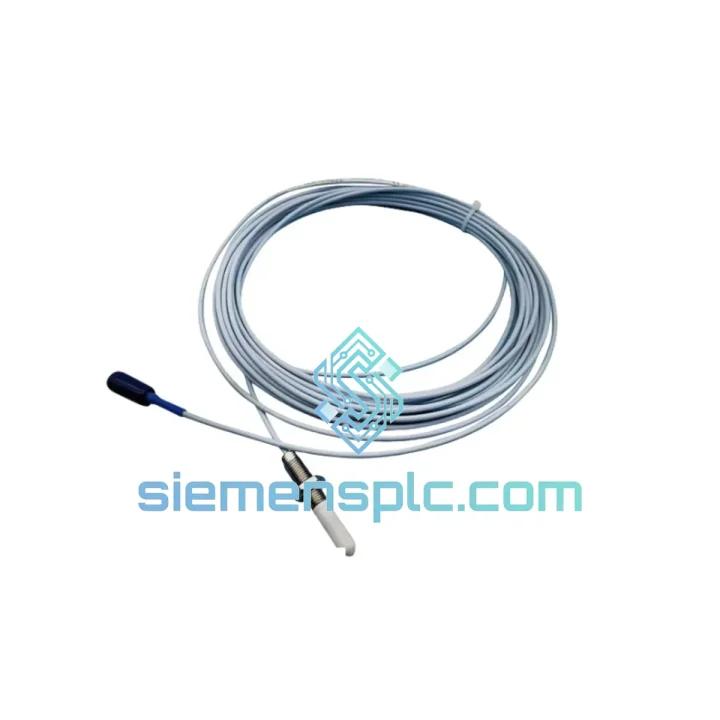

Bently Nevada 84661-25 Velomitor Cable

84661-25 Down? Every Minute of Vibration Blindness Costs You — Get It Shipped Today

Your 3500-series rack just lost a Velomitor channel. The monitor is faulted, the operator is calling, and your reliability engineer is already pulling the P&ID. You don’t need a datasheet lecture — you need the Bently Nevada 84661-25 on a truck by end of day. We stock it in Xiamen. DHL Express to your plant gate in 3–5 business days, anywhere on the planet.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work, here’s what actually goes wrong with Velomitor cable loops — and what to check before you condemn the cable or the monitor card:

Fault Code: 3500/42M Channel Fault / OK Relay De-energized
Nine times out of ten this is a broken shield drain wire at the sensor connector, not a failed monitor card. Before you pull the card, disconnect the 84661-25 at the sensor end and measure shield continuity end-to-end. Resistance should be < 2 Ω. Anything higher — replace the cable.

Symptom: Elevated broadband noise floor, no discrete fault
Classic ground loop. Check that the cable shield is grounded at the monitor end only (barrier or monitor card chassis). If the sensor body is also grounded to the machine casing and the machine is grounded to plant earth at a different potential, you’ll see 50/60 Hz noise riding on the velocity signal. The 84661-25’s ≥ 95% braid coverage is your first line of defense — a degraded or field-spliced cable makes this worse.

Replacement Procedure (3500/42M, Velomitor Input):

• Inhibit the channel in System 1 or via the front-panel keypad before disconnecting — prevents spurious trips during cable swap.
• Label both ends of the old cable before removal. Velomitor inputs on the 42M are polarity-sensitive at the BNC; reversing the coax center/shield will invert the velocity signal phase.
• Torque the BNC connector at the monitor card to 0.9 N·m (8 in-lb). Under-torqued BNCs are the #1 source of intermittent channel faults on 3500 racks in high-vibration areas.
• After reconnection, perform a static calibration check: apply a known velocity signal (or use the 3500/42M’s internal calibration function) and verify the channel reads within ±1% of expected EU.
• Remove the inhibit and confirm the OK relay re-energizes within 5 seconds.

No configuration changes required when swapping a like-for-like 84661-25. The cable carries no firmware, no addressing, and no DIP switches. It is a passive signal conductor — replace and go.

Reliability in Harsh Conditions

The 84661-25 is not a general-purpose instrumentation cable dressed up with a Bently Nevada label. It is engineered specifically for the mechanical and electrical environment of rotating machinery monitoring:

Vibration: The polyurethane jacket and factory-molded connector boots are designed to withstand continuous vibration exposure at the sensor mounting point — the same location where bearing housings on large turbomachinery can sustain 1–5 g broadband vibration indefinitely. Field-fabricated cables with crimped or soldered connectors fail at this junction within months. The 84661-25 uses a strain-relief construction that keeps the center conductor and shield termination mechanically isolated from flex fatigue.

Temperature Cycling: Compressor and turbine bearing housings routinely cycle from ambient cold-start (–20 °C in northern climates) to steady-state operating temperatures exceeding +70 °C at the sensor body. The cable’s rated –40 °C to +85 °C operating range provides margin at both extremes, preventing jacket embrittlement in cold climates and insulation softening in hot ones.

Moisture and Chemical Exposure: Offshore platforms, LNG terminals, and petrochemical units expose instrumentation cables to salt spray, hydrocarbon condensate, and cleaning solvents. The PVC/polyurethane outer jacket resists hydrocarbon absorption and maintains dielectric integrity in wet environments. The factory-sealed connector boots prevent capillary wicking of moisture into the coaxial core — a failure mode that causes gradual signal degradation over months before triggering a hard fault.

EMI in Variable-Speed Drive Environments: Modern plants are dense with VFD-driven motors generating broadband conducted and radiated EMI. The ≥ 95% braided shield on the 84661-25 provides measurably better rejection than foil-only alternatives, keeping the velocity signal clean even when routed in cable trays adjacent to power conductors.

Global Express Logistics

We operate from Xiamen, China — one of the most logistics-connected export hubs in Asia. When you place an order before 14:00 CST, we target same-day dispatch. Here’s how the shipment moves:

• Day 0: Order confirmed, unit pulled from bonded warehouse stock, export documentation prepared (commercial invoice, packing list, HS code 8544.42).
• Day 1: DHL Express or FedEx International Priority pickup from our Xiamen facility. Tracking number issued to your email within 2 hours of handover.
• Day 2–3: Clears Xiamen customs and transits through DHL Leipzig or FedEx Memphis hub depending on destination region.
• Day 3–5: Delivery to plant gate in Europe, North America, Middle East, or Southeast Asia. Remote locations (offshore platforms, inland Africa, Pacific islands) may require 1–2 additional days.

We handle all export paperwork. For projects requiring an ATA Carnet, CITES exemption documentation, or country-specific import permits, contact us 48 hours in advance and we will coordinate with our freight forwarder. Duties and import VAT are the buyer’s responsibility unless DDP (Delivered Duty Paid) terms are agreed in writing prior to shipment.

For shutdown-critical orders where the unit must arrive on a specific date, contact us via WhatsApp before placing the order. We will confirm stock availability, cut-off time, and the earliest guaranteed delivery date for your location before you commit.
