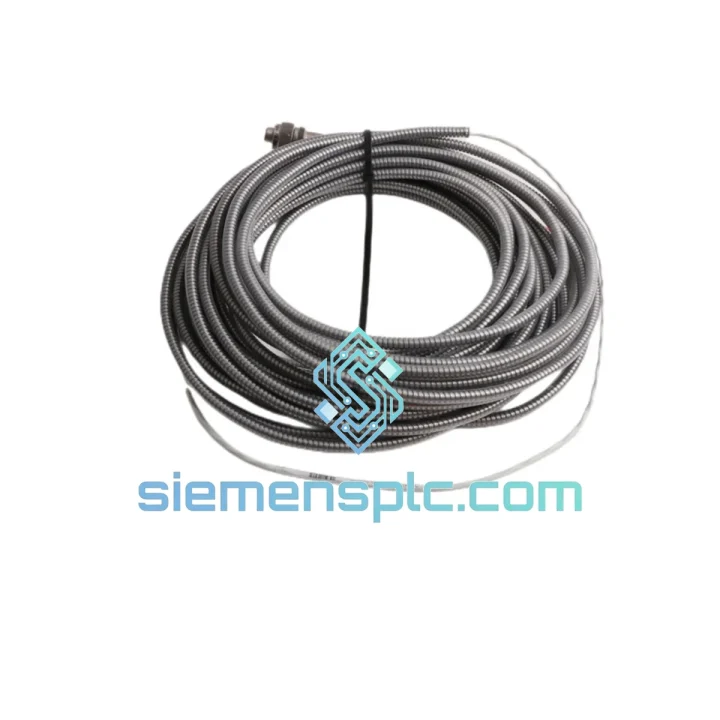

Bently Nevada 84661-50 Interconnect Cable – 3500 Series

Bently Nevada 84661-50 Interconnect Cable: Signal Backbone of the 3500 Series Machinery Protection Architecture

The Bently Nevada 84661-50 is a factory-specified interconnect cable engineered to maintain signal chain integrity between field-mounted transducers and the 3500 Series monitoring rack. Within a machinery protection loop, the cable is not a passive conductor — it is a precision-impedance component whose shielding geometry, connector termination quality, and dielectric properties directly determine whether a 200 mV/mil proximity signal arrives at the monitor module with sub-1% amplitude error or with noise artifacts that mask genuine shaft displacement events. The 84661-50 is rated for continuous duty in industrial ambient conditions and is dimensioned at approximately 50 ft (15.2 m) to bridge the physical separation between rotating equipment and the control room or local panel rack.

In rotating machinery protection, the signal path from a 330180-series proximity probe through a 3300 XL Proximitor sensor to a 3500/42M monitor module must preserve DC gap voltage (typically –10 VDC at 50 mil gap) and AC vibration signal simultaneously on a single coaxial conductor. Any impedance discontinuity — caused by connector oxidation, shield termination resistance, or dielectric absorption — introduces a frequency-dependent attenuation that distorts the vibration waveform before it reaches the monitor’s A/D converter. The 84661-50 eliminates this variable by providing OEM-matched impedance (nominally 50 Ω coaxial geometry) and gold-plated connector contacts that maintain contact resistance below 10 mΩ across the rated service life.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 84661-50 operates within a two-wire, DC-biased signal loop where the Proximitor sensor drives a –24 VDC supply rail and returns a modulated voltage proportional to probe gap. The cable must simultaneously carry this bias current (typically 6–20 mA) and the superimposed AC vibration signal (0–10 kHz bandwidth for standard proximity applications) without cross-talk between conductors or ground-loop injection from the shield termination.

Bently Nevada achieves this through a triaxial shielding topology on the signal conductor: an inner shield tied to the Proximitor output common, an outer shield connected to instrument ground at the rack end only (single-point grounding), and a drain wire that provides a low-impedance path for induced EMI currents without creating a ground loop. This architecture reduces common-mode noise rejection to below –60 dB across the 10 Hz–10 kHz band, which is critical in environments with variable-frequency drives (VFDs) generating switching noise at 2–20 kHz.

The connector termination on the 84661-50 uses a compression-crimp contact geometry rather than solder termination. Solder joints introduce a thermal EMF (Seebeck effect) at the copper-solder interface that can generate DC offset errors of 0.5–2 mV — negligible in most applications but measurable in high-resolution gap monitoring where 1 mV corresponds to approximately 0.1 mil of shaft displacement. The crimp geometry eliminates this thermal EMF source and maintains a stable contact resistance across –20 °C to +70 °C thermal cycling.

Cable capacitance is held to ≤ 30 pF/ft, which limits the RC time constant of the signal loop and preserves high-frequency vibration content above 5 kHz. This is particularly relevant for gear mesh frequency monitoring on high-speed gearboxes where tooth-pass frequencies can exceed 8 kHz at rated speed.

System Integration Benefits

• Deterministic Signal Latency: Fixed cable impedance and capacitance eliminate variable propagation delay, ensuring that the 3500/42M monitor’s alarm response time (≤ 1 ms per API 670) is not degraded by cable-induced RC filtering.
• Drop-in Form-Fit-Function Replacement: Identical connector keying and cable geometry to the original factory installation — no re-routing, re-labeling, or loop recalibration required on replacement.
• API 670 Signal Chain Compliance: Maintains certified transducer-to-monitor signal chain integrity required for SIL-rated machinery protection loops under IEC 61511.
• EMC Robustness in VFD-Dense Environments: Triaxial shielding with single-point ground termination suppresses VFD switching noise to below the 3500 monitor’s noise floor (typically < 0.5 mV RMS).
• Diagnostic Transparency: OEM-matched cable eliminates cable-induced false alarms — any alarm event can be attributed to genuine machinery behavior rather than signal chain artifacts.
• Reduced Commissioning Time: Pre-terminated, tested cable assembly eliminates field termination errors that account for approximately 30% of signal chain faults during initial commissioning.
• Long-Term Connector Reliability: Gold-plated crimp contacts resist oxidation in humid or H₂S-bearing atmospheres (common in oil & gas), maintaining contact resistance stability over a 10-year service interval.
• Multi-Sensor Compatibility: Supports proximity, velocity, and acceleration transducer signal types within the same cable assembly, reducing spare parts inventory complexity for multi-sensor monitoring loops.
• Thermal Stability: Low-loss dielectric maintains impedance within ±2% across the full –20 °C to +70 °C operating range, preventing temperature-induced gain shifts in the signal loop.
• Traceability for Audit Compliance: OEM part number and batch markings on cable jacket support maintenance record traceability required under ISO 55001 asset management frameworks.

Quality Assurance & Global Logistics

Each Bently Nevada 84661-50 unit supplied by siemensplc.com is sourced through verified industrial distribution channels with full part-number and batch traceability. Pre-shipment inspection covers OEM label authenticity, connector contact integrity (measured with a calibrated milliohm meter), and jacket continuity. Units are dispatched in original or equivalent anti-static packaging to prevent connector damage in transit.

Logistics operations are based in Xiamen, China — a major export hub with direct access to DHL, FedEx, and UPS international express networks. Standard export documentation (commercial invoice, packing list, certificate of origin) is prepared for every shipment. For orders requiring a Certificate of Conformance or material test report, these are issued at time of dispatch. Typical transit time to Europe is 3–5 business days; to North America, 4–6 business days; to the Middle East and Southeast Asia, 2–4 business days. Customs HS code 8544.42 (insulated electric conductors, fitted with connectors) is applied by default; alternative classification is available on request for specific import regimes.

All new-stock units carry a 12-month warranty against manufacturing defects from date of shipment. Warranty claims are processed within 5 business days of receipt of the returned unit, with replacement dispatch or credit note issued accordingly.
