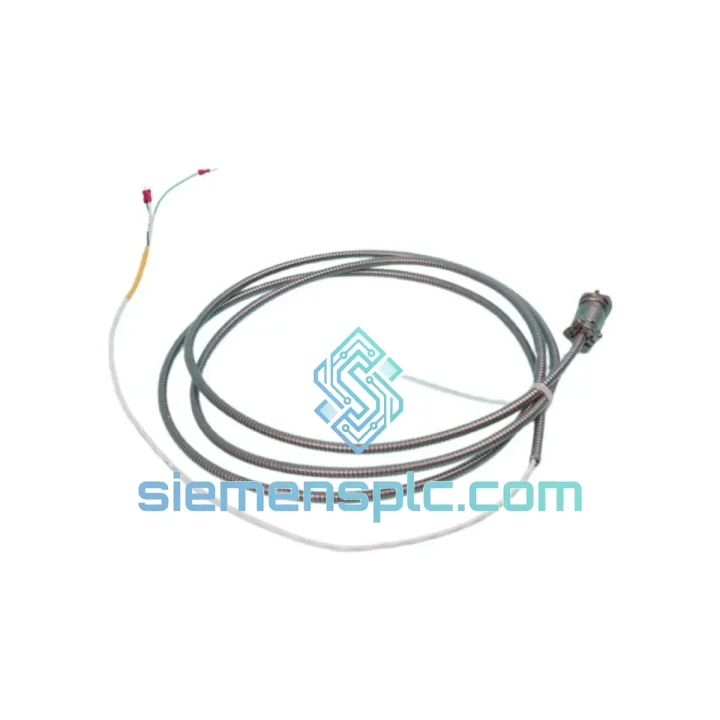

Bently Nevada 84661-70 Interconnect Cable – 3500 Series

Bently Nevada 84661-70 Interconnect Cable: Signal Pathway Integrity in 3500 Series Machinery Protection Systems

In rotating machinery protection, the measurement chain is only as reliable as its weakest physical link. Between a proximity probe tip and the input terminal of a 3500 Series monitor module lies a signal path that carries a DC-biased, high-impedance analog voltage—typically in the –24 VDC supply range with a gap voltage output between –1 VDC and –18 VDC. Any impedance discontinuity, capacitive loading deviation, or shield discontinuity along this path introduces measurement error that the monitor’s internal signal conditioning cannot distinguish from a genuine vibration event. The Bently Nevada 84661-70 Interconnect Cable is engineered to eliminate that variable.

The 84661-70 is a factory-terminated, specification-matched interconnect cable produced for the Bently Nevada 3500 Series Machinery Protection System—the dominant platform for API 670-compliant vibration, position, and speed monitoring in global heavy industry. Its role is to provide a controlled-impedance, low-capacitance, shielded signal path between field transducer junction boxes and the rack-mounted I/O modules of the 3500 chassis. Unlike generic instrumentation cable, the 84661-70 is manufactured to Bently Nevada’s internal electrical and mechanical tolerances, ensuring that the signal arriving at the monitor input is a faithful representation of the transducer output—not a degraded approximation.

Facilities operating steam turbines, gas compressors, centrifugal pumps, and generator sets under continuous protection cannot afford signal path ambiguity. A single spurious trip caused by a degraded interconnect cable carries a cost that dwarfs the price of a stocked spare. The 84661-70 is the correct, OEM-specified solution for this requirement.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The proximity probe circuit in a Bently Nevada 3500 installation operates on the eddy-current principle: the Proximitor sensor oscillates at a carrier frequency (typically 1 MHz), and the gap between the probe tip and the target shaft modulates the oscillator’s tank circuit, producing a DC output voltage proportional to gap distance. This output is a high-impedance signal with a source impedance that can exceed several kilohms depending on cable length and probe model. The interconnect cable’s capacitance per unit length directly loads this circuit—excessive capacitance reduces the usable bandwidth of the measurement and can introduce phase lag that distorts dynamic vibration waveforms at higher shaft speeds.

The 84661-70 addresses this through a low-capacitance dielectric construction, maintaining the cable’s distributed capacitance within the tolerance window specified by Bently Nevada’s Proximitor sensor datasheets. This is not a generic requirement—it is a system-level electrical constraint that determines whether the monitor’s internal signal processing algorithms receive valid data.

The shield architecture of the 84661-70 employs a continuous foil shield with a dedicated drain wire, terminated at both ends to chassis ground through the connector backshell. In a motor control center environment or near variable-frequency drives, common-mode noise on the signal conductor can reach amplitudes that exceed the vibration signal itself. The 84661-70’s shield provides a low-impedance return path for induced currents, preventing them from appearing as differential-mode noise at the monitor input. This is particularly relevant in installations where cable routing cannot maintain the recommended separation from power conductors.

The factory-terminated connectors eliminate the field-crimping variability that is a common source of intermittent faults in instrumentation wiring. Each connector is assembled under controlled conditions to Bently Nevada’s mechanical and electrical specifications, ensuring consistent contact resistance and shield continuity across the connector interface. In a 3500 Series rack with 16 or more monitor channels, a single high-resistance connector joint can produce a channel-specific offset that is difficult to distinguish from a genuine transducer fault during troubleshooting.

System Integration Benefits

• Deterministic signal latency: The controlled impedance of the 84661-70 ensures that signal propagation delay is consistent and predictable, which is critical for phase-referenced vibration measurements used in balancing and orbit analysis.
• Direct rack compatibility: The cable mates directly with 3500 Series I/O module connectors without adapters, eliminating additional contact interfaces that introduce resistance and potential failure points.
• Preserved monitor calibration: Bently Nevada 3500 monitors are factory-calibrated assuming a specific cable capacitance range. Using the 84661-70 keeps the installation within the calibration envelope, avoiding systematic measurement offset.
• Reduced nuisance trip risk: Proper shielding and impedance matching minimize the probability of EMI-induced false alarms, which carry significant operational and safety consequences in continuous process plants.
• Simplified spare parts management: A single part number covers the interconnect requirement for multiple 3500 Series module types, reducing the number of line items in a critical spares inventory.
• Diagnostic transparency: A known-good, OEM-specified cable removes the interconnect as a variable during fault investigation, allowing maintenance engineers to focus diagnostic effort on the transducer or monitor rather than the wiring.
• API 670 compliance support: The 84661-70 is part of the OEM-specified bill of materials for API 670-compliant installations, supporting documentation requirements for machinery protection system audits.
• Long-term availability: Sourcing through verified channels with documented traceability ensures that replacement cables match the original specification, preventing incremental degradation of system performance through non-conforming substitutions.

Quality Assurance & Global Logistics

Every Bently Nevada 84661-70 unit supplied by siemensplc.com is sourced through verified industrial automation supply channels with full part traceability. Our procurement process requires documentation of supply chain origin, and each unit undergoes visual and connector-integrity inspection prior to dispatch. We do not supply uncertified or remanufactured components—all units are genuine OEM parts.

Shipments originate from our warehouse in Xiamen, China, a major export hub with direct access to international express freight services including DHL Express, FedEx International Priority, and UPS Worldwide Express. Standard international transit times from Xiamen are 3–5 business days to most destinations in Southeast Asia, the Middle East, Europe, and the Americas. Export documentation—including commercial invoice, packing list, and certificate of origin—is prepared in compliance with destination country import requirements. For customers requiring specific customs documentation or ECCN classification support, our logistics team handles these requests as standard practice.

All shipments are packed in anti-static, moisture-resistant packaging appropriate for sensitive instrumentation components. For bulk orders, custom packaging and labeling can be arranged to meet customer warehouse receiving requirements.
