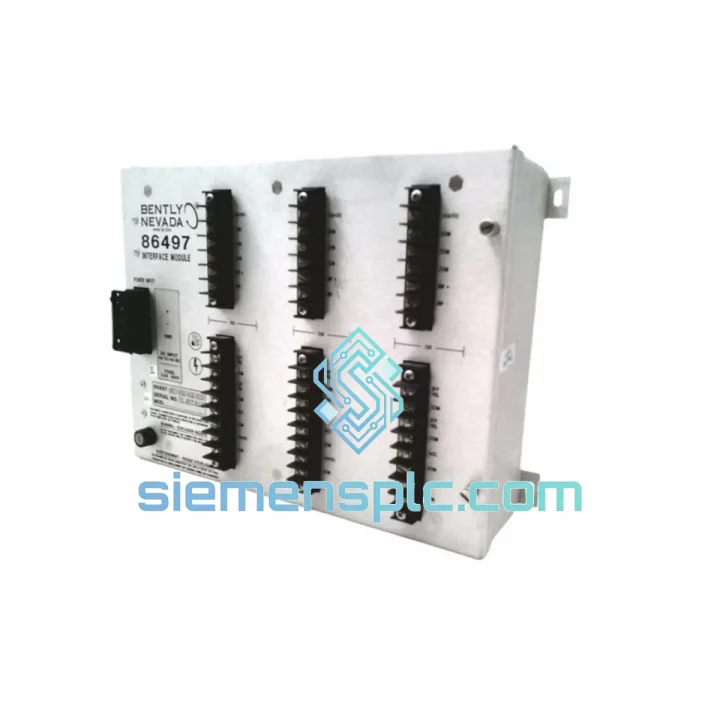

Bently Nevada 86497-01-02-02-00 Interface Module – 3500 Series

Bently Nevada 86497-01-02-02-00 — Signal Interface Architecture in the 3500 Machinery Protection System

The Bently Nevada 86497-01-02-02-00 is a rack-mounted interface module engineered for the 3500 Series Machinery Protection System. Its primary function is to condition and route transducer signals — proximity probe outputs, velocity sensor voltages, and accelerometer currents — from field wiring terminations into the 3500 rack’s internal backplane bus, where monitor cards perform threshold comparison, gap voltage validation, and alarm state arbitration. Without a correctly specified interface module, the signal chain between a rotating machine and its protection relay is broken; the 86497-01-02-02-00 closes that chain with deterministic, low-latency signal transfer.

In a typical 3500 rack deployment, the interface module occupies a dedicated slot adjacent to the monitor card it serves. The module’s terminal block accepts field cable shields and signal conductors, applies input filtering to suppress common-mode noise, and presents a conditioned differential signal to the backplane connector. This architecture isolates field-side ground loops from rack-side electronics — a design requirement in environments where motor drives, high-current bus bars, and RF sources generate broadband electromagnetic interference.

The 86497-01-02-02-00 variant is configured for specific transducer types and channel counts within the 3500 platform. Engineers selecting this part number should verify compatibility against the target monitor card’s input specification sheet, as Bently Nevada uses the suffix digits (01-02-02-00) to encode connector type, channel configuration, and termination options. This part is widely deployed in oil and gas compression trains, steam turbine-generator protection panels, and petrochemical reactor charge pump monitoring loops.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 86497-01-02-02-00 implements a passive-to-active signal handoff architecture. On the field side, the terminal block presents high-impedance inputs to avoid loading proximity probe driver circuits, which operate at a nominal –24 VDC gap voltage. The module’s input stage includes a transient voltage suppressor (TVS) network rated to clamp electrostatic discharge events and inductive kickback from cable disconnection — a failure mode common during maintenance on live machinery protection panels.

The internal signal path uses a differential-to-single-ended conversion stage before the backplane connector. This conversion eliminates the DC offset introduced by proximity probe gap voltage, presenting only the AC vibration component to the monitor card’s ADC input. The conversion stage maintains a flat frequency response from 0.5 Hz to beyond 10 kHz, covering the full measurement bandwidth required for sub-synchronous instability detection, 1× and 2× running speed vibration, and high-frequency bearing defect frequencies.

EMC performance is achieved through a multi-layer approach: per-channel shield grounding at the terminal block prevents shield current loops; the PCB layout uses a split ground plane to isolate analog signal return from digital logic return; and the backplane connector shell provides a low-impedance chassis bond. Together, these measures allow the module to meet IEC 61000-4-3 radiated immunity requirements at 10 V/m field strength — a practical necessity in switchgear rooms and motor control centers where the module is often co-located with variable frequency drives generating broadband RF emissions.

The suffix structure of the part number (86497-01–02–02–00) encodes: connector variant (01 = standard D-sub field connector), channel count configuration (02 = dual-channel), termination option (02 = internal termination resistors fitted), and revision state (00 = baseline production release). Procurement teams should confirm the suffix against the rack’s wiring diagram before ordering to avoid connector mismatch.

System Integration Benefits

• Zero-reconfiguration rack insertion: The module is hot-swap compatible with powered 3500 racks in non-critical monitoring slots, allowing replacement without a full rack shutdown and eliminating the need for a maintenance window in continuous-process plants.
• Deterministic signal latency: The passive backplane interface introduces no firmware-dependent processing delay; signal propagation from terminal block to monitor card ADC is governed by analog circuit physics, not software scheduling — a requirement for protection systems with trip response times under 20 ms.
• Diagnostic transparency: The 3500 platform’s System 1 software can read interface module status via the rack’s communication gateway; a missing or faulted module generates a discrete system alarm, enabling remote fault localization without physical rack inspection.
• Multi-transducer compatibility: A single interface module supports proximity probes, velocity sensors, and accelerometers on the same terminal block, reducing the number of unique spare part numbers a plant must stock for a mixed-transducer installation.
• Ground loop immunity: Per-channel shield grounding with a single-point chassis bond prevents the 50/60 Hz ground loop currents that corrupt vibration measurements in plants with multiple earthing points across large equipment foundations.
• Backward compatibility with legacy racks: The 86497 series interface modules are electrically compatible with 3500 racks manufactured from the mid-1990s onward, protecting capital investment in existing rack infrastructure during partial system upgrades.
• Reduced spare parts inventory cost: Because the interface module is the most frequently replaced field-side component in a 3500 rack (due to terminal block wear and cable damage), stocking one spare per rack reduces mean time to repair (MTTR) from days to under one hour.
• API 670 compliance preservation: Replacing a failed interface module with a genuine Bently Nevada 86497-01-02-02-00 maintains the rack’s API 670 certification status; substituting a non-OEM module voids the certification and may trigger a process safety management (PSM) audit finding.
• Simplified commissioning documentation: The module’s part number is directly referenced in Bently Nevada’s TDM (Technical Documentation Manual) and loop check procedures, allowing instrument technicians to complete as-built documentation without custom engineering notes.

Quality Assurance & Global Logistics

Every Bently Nevada 86497-01-02-02-00 unit dispatched from our Xiamen, China facility is a genuine OEM component sourced through verified supply channels. Prior to shipment, each module undergoes a functional verification check: terminal block continuity, backplane connector pin integrity, and visual inspection for PCB damage or counterfeit indicators (hologram label, date code consistency, and manufacturer’s traceability markings). Units that do not pass inspection are quarantined and not offered for sale.

Packaging follows IEC 61340-5-1 electrostatic discharge protection requirements: each module is sealed in a conductive poly bag, placed in anti-static foam, and boxed in a double-wall corrugated carton. Shipments include a packing list, commercial invoice with HS code 8537.10 classification, and — on request — a certificate of conformance and third-party inspection report.

Logistics from Xiamen port to major industrial hubs: DHL Express to Houston (2–3 business days), Rotterdam (3–4 business days), Singapore (1–2 business days), and Dubai (2–3 business days). FedEx International Priority and UPS Worldwide Express are available as alternatives. All shipments include door-to-door tracking and are covered by carrier liability insurance. Export documentation for ECCN classification and end-user declaration is prepared by our trade compliance team and included with every international order.

A 12-month warranty covers manufacturing defects from the date of shipment. Warranty claims are processed within 5 business days of receipt of the returned unit. Advance replacement is available for customers with active service agreements.
