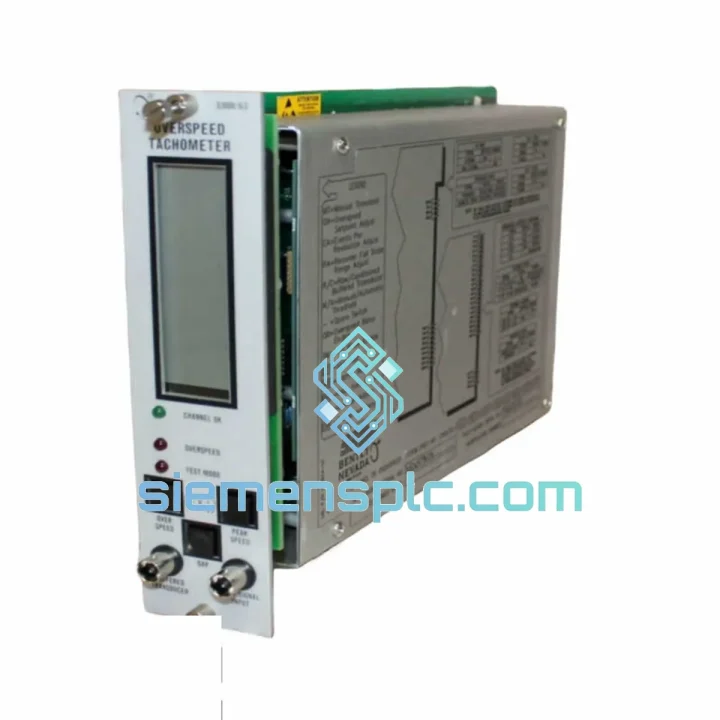

Bently Nevada 88843-04 Tachometer Module – 3500 Series

Bently Nevada 88843-04 Tachometer Module: Keyphasor Speed Acquisition in the 3500 Series Machinery Protection Architecture

The Bently Nevada 88843-04 is a dedicated tachometer and Keyphasor signal conditioning module engineered for integration within the 3500 Series Machinery Protection System (MPS). Its primary function is the acquisition, conditioning, and transmission of rotational speed data from proximity probes or magnetic pickups mounted on rotating shafts. Within a 3500 rack, the 88843-04 occupies a standard I/O slot and delivers conditioned speed pulses to the rack’s backplane bus, where the 3500/20 Rack Interface Module (RIM) arbitrates data flow to the host monitoring system. This architecture ensures that speed and phase reference signals are available to all protection and monitoring modules sharing the same rack, enabling coherent vibration vector analysis, overspeed trip logic, and phase-referenced balancing operations without additional signal distribution hardware.

In rotating machinery protection, the tachometer channel is not a passive observer — it is the timing reference against which all vibration vectors are resolved. The 88843-04 generates the once-per-revolution Keyphasor pulse that defines the angular reference frame for 1X and 2X vibration components. Without a stable, low-jitter Keyphasor signal, phase-referenced diagnostics such as rotor balancing, shaft bow detection, and synchronous averaging become unreliable. The 88843-04 addresses this requirement through a precision threshold comparator circuit with adjustable hysteresis, which suppresses electrical noise on the probe cable while maintaining sub-microsecond pulse edge timing accuracy across the full operating speed range.

The module accepts input from eddy-current proximity probes (standard Bently Nevada 3300 XL or 7200 series) as well as passive magnetic pickups, covering a broad range of industrial machinery from slow-speed reciprocating compressors to high-speed gas turbines. The configurable input threshold accommodates varying probe gap voltages and target geometry, making the 88843-04 applicable across diverse shaft materials and keyway configurations without requiring external signal conditioning.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Threshold Comparator and Hysteresis Circuit: The 88843-04 employs a precision Schmitt trigger comparator at its analog front end. The adjustable hysteresis band — typically set between 0.5 V and 2.0 V depending on cable length and electromagnetic environment — prevents false triggering caused by ground-loop noise or capacitively coupled interference on the probe cable. This is particularly significant in installations where probe cables run parallel to high-voltage motor leads or variable-frequency drive (VFD) output cables, environments where common-mode noise can reach several volts peak-to-peak.

Galvanic Isolation Architecture: The module incorporates opto-coupler isolation between the analog probe input stage and the digital backplane interface. This isolation barrier, rated at a minimum of 500 V RMS, prevents ground potential differences between the machinery frame and the control cabinet from corrupting the Keyphasor pulse timing. In offshore and petrochemical installations where cathodic protection systems impose DC offsets on structural ground, this isolation is a functional necessity rather than a design convenience.

Backplane Bus Interface: On the digital side, the 88843-04 interfaces to the 3500 rack’s internal communication bus through a dedicated FPGA-based bus controller. The FPGA handles slot addressing, data framing, and interrupt generation to the 3500/20 RIM. The deterministic interrupt latency — typically less than 1 ms from pulse edge to RIM acknowledgment — ensures that speed data is available to protection logic within the rack’s scan cycle without accumulating timing uncertainty across multiple module hops.

EMC Design: The PCB layout follows a split-plane strategy: the analog input section occupies a dedicated ground plane segment isolated from the digital logic ground, with the two planes joined at a single star point near the opto-coupler. Decoupling capacitors are placed within 2 mm of each IC power pin, and the backplane connector pins are filtered with ferrite beads rated at 600 Ω at 100 MHz. This layout discipline allows the module to maintain measurement accuracy in environments with radiated field strengths up to 10 V/m across the 80 MHz – 1 GHz band, consistent with IEC 61000-4-3 Level 3 requirements.

Revision -04 Specific Changes: The -04 revision incorporates an updated input protection clamp network that raises the transient voltage withstand capability of the probe input to ±60 V peak, compared to ±40 V in earlier revisions. This improvement addresses field failures observed in installations where inductive switching transients from solenoid valves or relay coils were coupled onto probe cable shields. The revision also includes a firmware update to the bus controller FPGA that corrects a rare race condition in the slot-address arbitration logic, improving rack stability during hot-swap operations.

System Integration Benefits

• Unified Keyphasor Distribution: A single 88843-04 can supply its Keyphasor pulse to all monitoring and protection modules within the same 3500 rack via the backplane bus, eliminating the need for external signal splitters or additional probe installations on the shaft.
• Phase-Referenced Vibration Analysis: The stable once-per-revolution pulse enables 1X and 2X vector tracking in the 3500 Series monitors, providing amplitude and phase data that is directly usable for field balancing without removing the rotor from service.
• Overspeed Trip Integration: Speed data from the 88843-04 feeds directly into the 3500/53 Overspeed Detection Module logic, supporting triple-redundant voting architectures (2-out-of-3) for SIL-rated overspeed protection without additional signal routing.
• Synchronous Averaging Support: The Keyphasor reference enables synchronous time averaging in System 1 software, which suppresses asynchronous noise components and improves the signal-to-noise ratio for detecting early-stage gear mesh defects and blade-pass anomalies.
• Hot-Swap Capability: The module supports live insertion and removal from a powered 3500 rack (with appropriate rack configuration), reducing planned maintenance downtime to the time required for physical module exchange rather than full rack de-energization.
• Diagnostic Transparency: The 3500/20 RIM continuously polls the 88843-04 for module health status, reporting probe cable open-circuit, short-circuit, and out-of-range bias voltage conditions to System 1 as discrete alarm states, enabling predictive maintenance of the sensor loop before a measurement failure occurs.
• Multi-Machine Scalability: In multi-train installations, each 3500 rack can host its own 88843-04, with System 1 correlating Keyphasor references across racks for cross-machine phase analysis — a capability used in coupled compressor-turbine trains to diagnose coupling misalignment under load.
• Firmware Consistency: The -04 revision is firmware-matched to current System 1 Evolution software releases, ensuring that all diagnostic data fields, alarm setpoint structures, and communication register maps are fully populated without requiring custom driver development or register remapping.

Quality Assurance & Global Logistics

Every Bently Nevada 88843-04 unit dispatched from our Xiamen, China facility undergoes a structured pre-shipment verification protocol. Visual inspection confirms label integrity, revision marking, and connector pin condition. Functional verification checks probe input bias voltage generation, threshold comparator response, and backplane bus communication using a calibrated 3500 rack test fixture. Units are packaged in anti-static bags with desiccant packs inside rigid ESD-shielded cartons, with humidity indicator cards visible through the carton window to confirm storage condition integrity throughout transit.

Xiamen’s geographic position provides direct access to major international freight hubs. DHL Express, FedEx International Priority, and UPS Worldwide Express services from Xiamen Gaoqi International Airport deliver to most industrial destinations in North America, Europe, the Middle East, and Southeast Asia within 3–5 business days. For time-critical plant shutdowns, same-day dispatch is available for orders confirmed before 14:00 CST. Sea freight consolidation is available for multi-unit project orders requiring cost-optimized delivery on longer lead times.

All units are supplied with a 12-month warranty covering manufacturing defects and functional failure under normal operating conditions. A certificate of conformance (CoC) is issued with each shipment. Customs documentation — including commercial invoice, packing list, and HS code declaration (HS 9031.80) — is prepared to facilitate smooth clearance in major import jurisdictions. For projects requiring ATEX or IECEx documentation, please specify at the time of inquiry.
