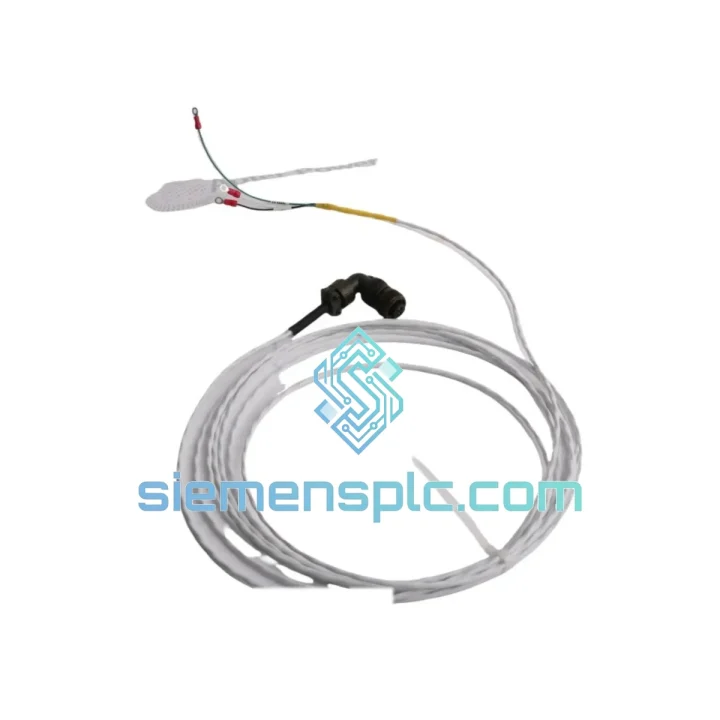

Bently Nevada 89477-08 Piezo-Velocity Transducer – Velomitor Series

Bently Nevada 89477-08 Velomitor Piezo-Velocity Transducer: Precision Vibration Measurement for Critical Rotating Machinery

The Bently Nevada 89477-08 is a piezo-velocity transducer from the Velomitor Series, engineered for continuous vibration monitoring of high-speed rotating machinery in demanding industrial environments. Unlike conventional electrodynamic velocity sensors that rely on a suspended coil-and-magnet assembly, the 89477-08 employs a piezoelectric sensing element bonded to a seismic mass. This architecture eliminates the resonance limitations inherent to moving-coil designs and extends the usable frequency response well into the high-frequency range — a critical requirement when monitoring rolling-element bearings, gear mesh frequencies, and blade-pass events on turbomachinery.

The transducer outputs a velocity-proportional signal (mm/s or in/s) directly from the piezoelectric stack via an internal signal conditioning circuit, removing the need for external integration electronics that would otherwise introduce phase error and noise floor penalties. This direct-output topology is fully compatible with the Bently Nevada 3500 Series Machinery Protection System input cards, specifically the 3500/42M and 3500/40M Proximitor/Seismic Monitor modules, as well as the System 1 condition monitoring software platform. The 89477-08 is therefore a drop-in sensing element for facilities already operating within the Bently Nevada ecosystem.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 89477-08 departs from the classical geophone topology in a structurally significant way. A conventional moving-coil velocity sensor generates EMF proportional to the relative velocity between a suspended coil and a permanent magnet. This design introduces a mechanical resonance peak — typically between 8 Hz and 15 Hz — that must be electronically damped, and the upper frequency limit is constrained by the coil’s self-inductance and the mechanical Q of the suspension system. Above approximately 1,000 Hz, signal fidelity degrades substantially.

The Velomitor 89477-08 replaces this mechanical assembly with a piezoelectric crystal stack loaded by a calibrated seismic mass. When the housing accelerates, the seismic mass exerts a force on the crystal proportional to acceleration (F = ma). The crystal generates a charge proportional to this force. An internal application-specific integrated circuit (ASIC) converts the charge to a low-impedance voltage output and performs analog integration to produce a velocity signal. The integration is performed in the frequency domain within the ASIC’s signal path, which means the phase response is mathematically predictable and consistent across the operating bandwidth — a property that moving-coil sensors cannot guarantee at high frequencies.

The 316 stainless steel housing provides a Faraday shield effect, attenuating capacitively coupled electromagnetic interference (EMI) from adjacent motor drives, switchgear, and RF sources common in industrial plants. The two-wire constant-current loop interface (IEPE/ICP-compatible topology) further rejects common-mode noise on long cable runs — a practical advantage in facilities where sensor cables may run parallel to power conductors for tens of meters. The internal ASIC also incorporates a low-noise input stage with a noise floor below 1 μg/√Hz, ensuring that low-amplitude, high-frequency fault signatures (e.g., early-stage bearing defect frequencies at 2–5 kHz) remain above the noise floor and are detectable by the 3500 Series monitor’s alarm logic.

The mounting interface uses a 1/4-28 UNF stud, which provides a rigid mechanical coupling to the machine casing. Rigid stud mounting preserves the high-frequency response of the transducer by minimizing the compliance between the sensor base and the measurement surface — a compliance that would otherwise act as a mechanical low-pass filter and attenuate the very fault signatures the sensor is designed to capture.

System Integration Benefits

• Direct 3500 Series Compatibility: The 89477-08 interfaces natively with Bently Nevada 3500/42M and 3500/40M monitor cards without signal conditioning adapters, preserving the calibration chain and eliminating additional failure points in the measurement loop.
• Deterministic Alarm Response: When paired with the 3500 Series, the monitor’s hardware-based alarm comparators evaluate the velocity signal within one scan cycle (<100 ms), providing deterministic trip response independent of software scheduler latency — a requirement for API 670-compliant machinery protection.
• Extended Frequency Coverage: The 4.5 Hz – 5,000 Hz bandwidth captures both low-speed unbalance (1× running speed) and high-frequency bearing defect frequencies in a single transducer, reducing the number of measurement points required per machine train.
• ISO 10816 / ISO 20816 Alignment: The velocity output in mm/s RMS maps directly to the vibration severity zones defined in ISO 10816-3 and ISO 20816-3, enabling alarm setpoints to be derived from published standards without unit conversion or scaling factors.
• System 1 Trend Integration: The analog output feeds directly into System 1’s data acquisition layer, enabling long-term trend storage, spectral analysis, and machine health scoring without additional signal processing hardware.
• Reduced Wiring Complexity: The two-wire IEPE interface requires only a single shielded twisted pair per channel, reducing cable tray fill and termination labor compared to three-wire or four-wire sensor configurations.
• High Shock Tolerance: The 2,000 g shock rating allows the sensor to survive mechanical events — such as compressor surge or turbine trip — that would permanently damage a moving-coil sensor’s suspension, maintaining measurement integrity through transient fault conditions.
• Wide Temperature Range: Operation to +121 °C permits installation on machine casings where surface temperatures exceed the limits of standard industrial sensors, without requiring thermal standoffs or cooling provisions in most applications.
• No Mechanical Wear: The absence of moving parts in the piezoelectric sensing element eliminates the wear mechanisms that degrade moving-coil sensors over time, supporting continuous operation across multi-year maintenance intervals.
• Diagnostic Transparency: The constant-current loop interface allows the 3500 Series monitor to detect open-circuit and short-circuit cable faults as a bias voltage deviation, providing a channel-level diagnostic without interrupting the protection function on adjacent channels.

Quality Assurance & Global Logistics

Every Bently Nevada 89477-08 unit supplied by siemensplc.com is sourced through verified industrial distribution channels and subjected to a structured incoming inspection protocol before dispatch. Physical inspection covers housing integrity, connector pin condition, label legibility, and packaging seal. Electrical verification confirms bias voltage response within the specified range under a 4 mA constant-current supply, providing a functional gate check prior to shipment.

Units are individually packaged in anti-static foam-lined cartons with desiccant inserts to prevent moisture ingress during international transit. Export documentation — including commercial invoice, packing list, and certificate of origin — is prepared in compliance with Chinese customs regulations and the import requirements of the destination country. Shipments originate from our warehouse in Xiamen, China, a major southeastern port city with direct access to international air freight hubs (Xiamen Gaoqi International Airport) and sea freight lanes (Xiamen Port). Standard air freight transit times are 3–7 business days to most destinations in Southeast Asia, the Middle East, Europe, and the Americas. DHL, FedEx, and UPS express services are available for time-critical orders. All shipments include full tracking and are covered by cargo insurance.

A 12-month warranty is provided from the date of shipment, covering manufacturing defects and functional failure under normal operating conditions. Warranty claims are processed with a replacement-first policy to minimize downtime impact on the customer’s facility.
