Bently Nevada 990-05-XX-01-00 Vibration Transmitter – 3500 Series

Bently Nevada 990-05-XX-01-00 / 147202-01 — Loop-Powered Vibration Transmitter for 3500 Series Machinery Protection

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

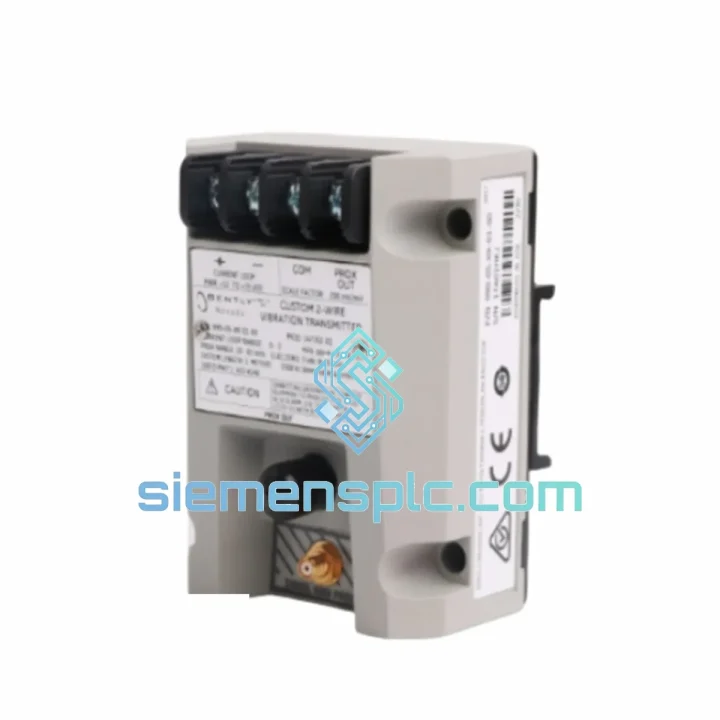

The Bently Nevada 990-05-XX-01-00 (OEM cross-reference: 147202-01) is a loop-powered vibration transmitter engineered to serve as the signal conditioning interface between eddy-current proximity probe systems and plant-level control infrastructure. Within the 3500 Series machinery protection architecture, this module occupies the critical conversion layer: it accepts the raw oscillator output from a Bently Nevada 3300 XL or 7200 Series proximity probe, applies internal scaling and linearization, and delivers a calibrated 4–20 mA analog signal proportional to shaft radial displacement. The output is directly compatible with any DCS analog input card, PLC AI module, or Safety Instrumented System (SIS) configured to API 670 alarm and trip setpoints.

Unlike rack-mounted monitor cards that require chassis slot allocation and backplane power, the 990-05-XX-01-00 operates as a standalone, DIN-rail-mounted field transmitter. Its loop-powered topology draws operating current from the 18–30 VDC two-wire loop itself, eliminating the need for a dedicated auxiliary power supply at the field junction box. This architecture reduces panel wiring complexity, lowers installation cost, and simplifies hazardous-area cable routing in Zone 1 and Zone 2 classified environments.

The module is designed for continuous, unattended operation across the full lifecycle of rotating machinery assets — compressor trains, steam turbines, centrifugal pumps, and large induction motors — where shaft displacement monitoring is mandated by API 670, ISO 10816, or plant-specific machinery protection philosophies. Its measurement range typically spans 0–25 mil (0–635 µm) full scale, with output linearity sufficient to support both alarm threshold detection and long-term vibration trending in historian databases.

From a procurement standpoint, the 990-05-XX-01-00 is the preferred drop-in replacement for aging or failed transmitters in existing 3500 rack installations. No firmware reconfiguration, rack parameter changes, or probe recalibration is required when substituting a like-for-like unit — a critical advantage in facilities where maintenance windows are measured in hours, not days.

Technical Parameters

Hardware Logical Analysis

The internal architecture of the 990-05-XX-01-00 is structured around three functional stages, each addressing a specific signal integrity requirement in the proximity probe measurement chain.

Stage 1 — Oscillator Signal Reception and Impedance Buffering: The proximity probe driver (oscillator/demodulator) generates a DC voltage proportional to the gap between probe tip and shaft surface, typically in the –24 VDC range with a sensitivity of 200 mV/mil (7.87 V/mm). The transmitter’s input stage presents a high-impedance load to this signal, preventing loading effects that would introduce measurement error. An internal voltage reference clamps the input against transient overvoltage events common in field environments with long cable runs.

Stage 2 — Scaling, Linearization, and Zero/Span Adjustment: The conditioned input voltage is processed through a precision scaling network that maps the probe’s output range to the 4–20 mA output span. Internal zero and span trimmers allow field calibration to match specific probe sensitivities and gap setpoints. The linearization circuit compensates for the inherent non-linearity of the eddy-current effect at the extremes of the measurement range, maintaining output accuracy across the full 0–25 mil span.

Stage 3 — Current Loop Driver and EMC Protection: The output stage employs a precision current source topology that maintains output accuracy independent of loop resistance variations (up to 600 Ω at 24 VDC). The loop driver incorporates transient voltage suppression (TVS) diodes on both the supply and output terminals, providing protection against electrostatic discharge (ESD) and conducted electromagnetic interference (EMI) per IEC 61000-4 test levels. The PCB layout follows IEC 61326-1 EMC design guidelines, with ground planes and filter capacitors positioned to attenuate high-frequency noise from variable-frequency drives (VFDs) and power switching equipment commonly co-located in industrial panels.

Galvanic Isolation: The signal path between the field probe circuit and the 4–20 mA output loop is galvanically isolated, breaking ground loops that would otherwise introduce 50/60 Hz interference into the vibration measurement. This isolation is particularly important in facilities where the probe cable shield and the DCS analog input card share different ground reference potentials — a common condition in large petrochemical plants with distributed earthing systems.

System Integration Benefits

• Direct DCS/PLC Compatibility: The 4–20 mA output maps directly to standard analog input channels on all major DCS platforms (Honeywell Experion, Emerson DeltaV, ABB 800xA, Yokogawa CENTUM) and PLC AI modules (Siemens S7, Allen-Bradley ControlLogix) without signal conversion hardware.
• API 670 Alarm Architecture Support: The linear 4–20 mA output allows DCS alarm logic to implement Alert (1st alarm) and Danger (trip) setpoints as simple analog threshold comparisons, consistent with API 670 machinery protection philosophy and reducing SIS logic complexity.
• Historian Integration: Continuous 4–20 mA output enables high-resolution vibration trending in OSIsoft PI, Aspen InfoPlus.21, and similar process historians — supporting predictive maintenance programs without additional signal conditioning hardware.
• Reduced Panel Footprint: DIN-rail mounting and loop-powered operation eliminate the need for dedicated power supply modules in field junction boxes, freeing panel space and reducing heat load in enclosed enclosures.
• Deterministic Response Time: The analog output updates continuously with no scan-cycle latency, ensuring that rapid vibration excursions (e.g., rub events, surge onset) are captured without the sampling delay inherent in digital fieldbus protocols.
• Diagnostic Transparency: A 4 mA live-zero output allows the DCS to distinguish between a zero-vibration condition and a broken wire or failed transmitter — a fundamental diagnostic capability required by IEC 61511 for SIS applications.
• Hot-Swap Maintenance: The modular DIN-rail design allows transmitter replacement during scheduled maintenance windows without disturbing adjacent field wiring, reducing mean time to repair (MTTR) and minimizing exposure to live circuits.
• Multi-Protocol Loop Compatibility: The 4–20 mA output is compatible with HART-enabled input cards, allowing superimposed HART communication for remote configuration, diagnostics, and calibration verification without breaking the analog loop.
• Wide Environmental Tolerance: The –40°C to +85°C operating range covers arctic upstream installations and tropical refinery environments without derating, eliminating the need for enclosure heating or cooling in most field locations.

Quality Assurance & Global Logistics

Every Bently Nevada 990-05-XX-01-00 unit offered through siemensplc.com is sourced through verified industrial supply channels with full traceability documentation. Units are inspected against Bently Nevada factory acceptance criteria prior to listing, including visual inspection for physical damage, label verification against the OEM part number database, and functional loop-check to confirm 4–20 mA output linearity. Original OEM packaging and documentation are preserved where available.

Batch traceability records are maintained for quality audit compliance, supporting incoming inspection requirements at ISO 9001-certified facilities. Pre-shipment calibration verification — including output linearity test across the full 4–20 mA span — is available upon request at time of order.

All units carry a 12-month warranty against defects in materials and workmanship from the date of shipment. Warranty claims are processed with a target response time of 48 hours, with replacement units dispatched from Xiamen, China via express courier.

Logistics from Xiamen, China: Orders are dispatched via DHL Express, FedEx International Priority, or UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe, North America, Southeast Asia, and the Middle East. Full export documentation is included with every shipment: commercial invoice, packing list, certificate of origin, and airway bill. Customs HS code classification support is available for buyers requiring import duty pre-calculation. For urgent requirements, same-day dispatch is available for orders confirmed before 14:00 CST.
