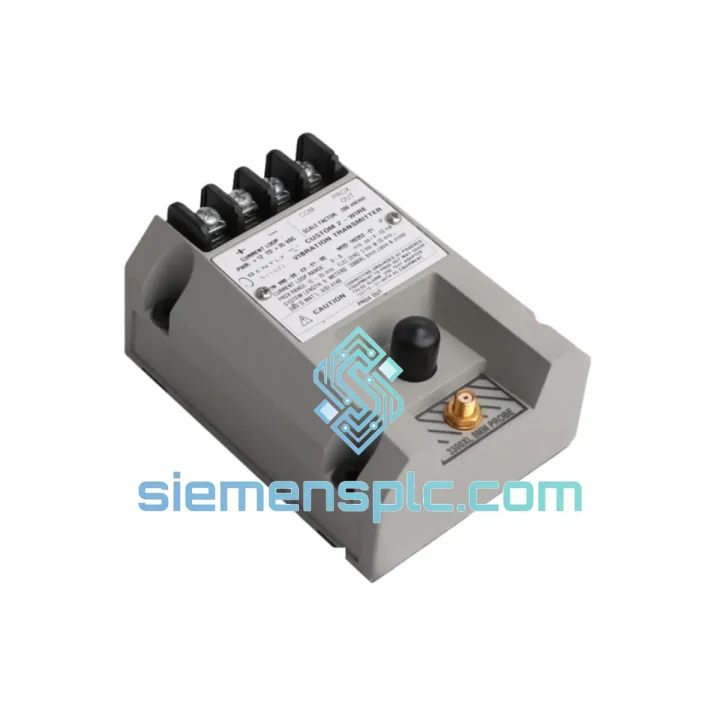

Bently Nevada 990-08-XX-01-00 MOD-165353-01 Vibration Transmitter – 3500 Series

Bently Nevada 990-08-XX-01-00 MOD:165353-01 — Dual-Channel Vibration Transmitter in the 3500 Machinery Protection Platform

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

The Bently Nevada 990-08-XX-01-00 MOD:165353-01 is a rack-mounted, dual-channel vibration transmitter designed for continuous integration within the Bently Nevada 3500 Machinery Protection System. Its primary function is to accept raw transducer signals from proximity probes or accelerometers, apply configurable signal conditioning, and deliver isolated 4–20 mA analog outputs to downstream control and safety systems. In rotating equipment protection architectures — where a turbine trip decision must be executed within milliseconds of a threshold breach — this module occupies a deterministic position in the signal chain between the physical transducer and the DCS or SIS logic solver.

The 3500 platform, of which this transmitter is a constituent element, is specified under API Standard 670 (Machinery Protection Systems) as the reference implementation for continuous vibration monitoring on critical turbomachinery. The 990-08-XX-01-00 module fulfills the transmitter function defined in API 670 Section 5, providing the analog interface layer that decouples the protection rack’s internal processing from the plant-wide control infrastructure.

The MOD:165353-01 revision designator identifies a specific hardware configuration within the 990-08-XX-01-00 product family. The XX field in the part number encodes transducer compatibility and output scaling parameters, allowing the same physical module form factor to serve multiple transducer types across a single rack installation. Engineers specifying this module should confirm the XX variant against their transducer model and required full-scale output range prior to procurement.

Technical Parameters

Hardware Logical Analysis

The 990-08-XX-01-00 module’s internal architecture is structured around three functional stages: input conditioning, galvanic isolation, and current-loop drive.

Input Conditioning Stage. Raw transducer signals — typically a DC-biased AC voltage from a proximity probe operating at −24 VDC bias, or a charge-mode or IEPE accelerometer signal — enter the module through front-panel terminal blocks. The input stage applies a configurable low-pass filter to attenuate high-frequency noise components above the measurement bandwidth of interest. For shaft vibration applications, the filter corner frequency is typically set to pass the 1× and 2× running speed components while rejecting electrical interference above the mechanical frequency range. The filter topology uses passive RC networks followed by an active buffer stage, which presents a high input impedance to the transducer loop and prevents loading effects that would shift the transducer’s operating bias point.

Galvanic Isolation. Each channel incorporates transformer-based galvanic isolation between the transducer input circuit and the 4–20 mA output loop. This isolation barrier serves two purposes: it eliminates ground loop currents that would otherwise introduce common-mode noise into the measurement, and it protects the 3500 rack backplane from fault voltages originating in the field wiring. The isolation withstand voltage is rated to meet the requirements of EN 61010-1 for measurement category II environments, consistent with the industrial field wiring conditions encountered in turbomachinery installations.

EMC Design. The module’s PCB layout employs a split ground plane strategy, separating the analog signal ground from the digital and chassis ground domains. Ferrite beads are placed on all I/O lines at the board edge to suppress conducted RF emissions. The module housing provides shielding continuity through the 3500 rack’s grounded card guides, contributing to the system-level EMC performance documented in the 3500 platform CE declaration of conformity. In high-interference environments — such as switchgear rooms or near variable-frequency drives — this shielding architecture maintains output signal accuracy within the specified ±0.5% of full scale.

Current-Loop Drive Stage. The output stage converts the conditioned, isolated analog voltage to a 4–20 mA current loop using a precision voltage-to-current converter. The 4 mA live-zero convention allows the receiving DCS or SIS input card to distinguish a valid zero-measurement condition (4 mA) from a wiring fault or module failure (0 mA), enabling continuous loop integrity monitoring without additional hardware. The output compliance voltage is sufficient to drive loads up to 600 Ω, covering the input impedance of all major DCS analog input modules from Emerson, Honeywell, ABB, and Siemens.

Dual-Channel Independence. The two channels share a common backplane power supply connection but maintain fully independent signal paths from input terminal to output loop. A fault condition on Channel 1 — including an open-circuit transducer, a short-circuit output, or an internal component failure — does not affect Channel 2’s measurement or output. This independence is a prerequisite for applications where the two channels monitor orthogonal measurement planes (X and Y radial vibration) on a single bearing journal, as specified in API 670 for critical machinery.

System Integration Benefits

• Direct DCS analog input compatibility: The 4–20 mA output maps directly to standard AI cards across all major DCS platforms without signal conversion hardware, reducing BOM complexity and eliminating an additional failure point in the signal chain.
• API 670 compliance pathway: The module’s dual-channel architecture and deterministic output response support the continuous monitoring requirements of API 670, simplifying the documentation burden for machinery protection system certification audits.
• SIS interface readiness: The isolated 4–20 mA output is directly compatible with SIL-rated analog input modules used in safety instrumented systems, enabling vibration-based trip logic to be implemented in the SIS without additional signal conditioning.
• Reduced rack slot consumption: Two independent measurement channels in a single module slot lower the total slot count required for a multi-bearing monitoring installation, preserving rack capacity for additional I/O or communication modules.
• Live-zero fault detection: The 4 mA live-zero convention enables the DCS or SIS to detect open-circuit wiring faults in real time, supporting continuous loop integrity monitoring as required by IEC 61511 for SIS applications.
• Plug-and-play rack integration: The module draws power from the 3500 rack backplane and requires no external power supply wiring, reducing installation time and eliminating a potential source of wiring errors during commissioning.
• Configurable scaling for multi-transducer installations: The XX variant code system allows a single procurement specification to cover multiple transducer types within one project, simplifying spare parts inventory management for plant maintenance teams.
• High output load tolerance: The 600 Ω maximum load impedance accommodates long cable runs between the 3500 rack and the DCS marshalling cabinet without signal degradation, a practical advantage in large plant installations where cable distances may exceed 200 m.
• Deterministic response time: The module’s analog output tracks transducer input changes within the response time specified by the 3500 platform documentation, meeting the API 670 requirement for protection system response time from transducer to output.
• Diagnostic transparency: Integration with the 3500 System Monitor provides channel-level status and alarm data accessible via Modbus/TCP or RS-232, enabling maintenance teams to interrogate module health from the DCS historian or asset management system without physical access to the rack.

Quality Assurance & Global Logistics

Every unit of the 990-08-XX-01-00 MOD:165353-01 dispatched from our Xiamen facility undergoes a structured pre-shipment verification protocol before it leaves our warehouse.

Authenticity Verification. The module’s serial number and MOD revision code are cross-referenced against Bently Nevada OEM records. Label integrity, PCB markings, and connector part numbers are inspected against known-good reference units. Counterfeit screening is applied to all units regardless of source channel.

Functional Pre-shipment Test. Each unit is powered via a 3500-compatible bench rack, and both output loops are loaded to 250 Ω. Output current at 0%, 50%, and 100% of full-scale input is measured and recorded. Channel isolation is verified by applying a fault condition to Channel 1 and confirming Channel 2 output remains within specification. Test records are retained and available upon request.

Packaging. Units are individually sealed in ESD-protective anti-static bags, placed in foam-lined cartons with humidity indicator cards, and outer-boxed for international freight. All packaging meets ISTA 2A transit testing standards for air freight.

Export Documentation. Each shipment includes a commercial invoice, packing list, certificate of origin, and — where requested — a certificate of conformance. HS code classification is applied for accurate customs clearance in the destination country.

Logistics. Standard dispatch is via DHL Express or FedEx International Priority from Xiamen Gaoqi International Airport, with typical transit times of 3–5 business days to Europe, North America, and Southeast Asia. SF Express is available for destinations within mainland China. Shipment tracking is provided at the time of dispatch. For urgent project requirements, same-day dispatch is available for in-stock units when orders are confirmed before 14:00 CST.

Warranty. All verified units carry a 12-month warranty from the date of dispatch. Warranty coverage includes functional failure under normal operating conditions. Units returned under warranty are inspected, and replacement or credit is issued within 10 business days of receipt.
