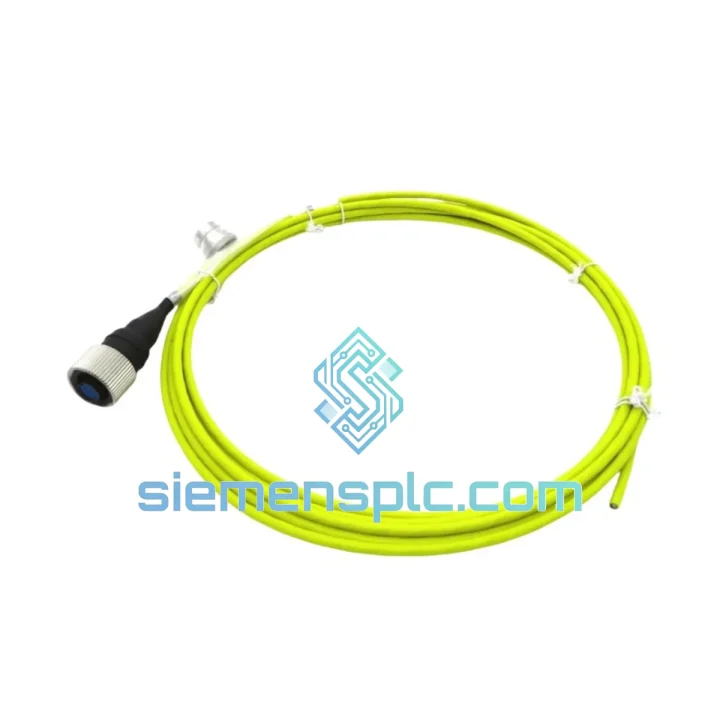

Bently Nevada CB2W100-200 Interconnect Cable – 3500 Series

Bently Nevada CB2W100-200: Precision Signal Interconnect for Rotating Machinery Protection Loops

The Bently Nevada CB2W100-200 is a factory-terminated, shielded 2-wire interconnect cable engineered specifically for signal transmission within Bently Nevada vibration monitoring and machinery protection architectures. Its primary function is to carry the DC-coupled proximity displacement signal from a Proximitor® sensor to the corresponding input channel of a 3500 Series monitoring rack — a signal path where cable impedance, shielding integrity, and connector geometry are not interchangeable variables but hard system constraints.

In a typical rotating machinery protection loop, the Proximitor® converts the eddy-current gap signal into a calibrated DC voltage (typically –24 VDC bias with a sensitivity of 200 mV/mil or 7.87 V/mm). The CB2W100-200 carries this conditioned signal across the panel boundary without introducing ground loops, capacitive loading, or shield discontinuities that would corrupt the baseline gap measurement or trigger false alarms in the 3500/40M or 3500/42M displacement monitor modules. The cable’s 100–200 series designation encodes both the connector family and the nominal routing length class, ensuring the correct mating geometry at both the Proximitor® junction box and the rack I/O terminal.

Unlike generic shielded twisted-pair cable, the CB2W100-200 is pre-terminated with factory-crimped connectors that are dimensionally matched to Bently Nevada’s proprietary locking interface. Field-terminated substitutes introduce connector resistance variability and potential shield pigtail inductance — both of which degrade signal fidelity at the sub-millivolt level required for accurate shaft displacement trending. For applications governed by API 670 machinery protection standards, the use of OEM-specified cabling is a traceable compliance requirement, not a preference.

The cable construction employs a foil-plus-braid composite shield with a drain wire, providing greater than 90 dB of shielding effectiveness across the 10 Hz–10 kHz proximity signal bandwidth. The outer jacket material is rated for continuous service in environments with ambient temperatures from –40 °C to +85 °C, making it suitable for both indoor panel routing and short outdoor conduit runs in petrochemical and power generation facilities. The 2-wire conductor pair is twisted at a controlled pitch to minimize differential-mode noise pickup from adjacent power conductors in shared cable trays.

Procurement teams should note that the CB2W100-200 is a controlled spare in most OEM turbine and compressor maintenance contracts. Its part number appears directly in Bently Nevada system wiring diagrams and spare-parts lists, which simplifies audit documentation and insurance-backed machinery protection program compliance. Substituting an unverified equivalent without engineering sign-off can void the system’s functional safety certification and introduce liability in the event of a machinery trip or failure-to-trip event.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CB2W100-200’s hardware design addresses three failure modes endemic to proximity signal cabling in industrial environments: ground loop injection, capacitive signal attenuation, and connector contact resistance drift.

Ground Loop Suppression: The foil shield is terminated at a single point — the Proximitor® junction box end — leaving the rack end floating relative to chassis ground. This single-ended shield topology breaks the ground loop that would otherwise form between the Proximitor® power supply common and the 3500 rack chassis, a loop that can inject 50/60 Hz interference at amplitudes exceeding the 1 mV resolution threshold of the displacement monitor’s A/D converter.

Capacitive Loading Control: The twisted-pair geometry and controlled dielectric constant of the insulation maintain a cable capacitance below 100 pF/m. For a 10-meter run, total capacitive loading on the Proximitor® output remains under 1 nF — well within the output drive specification of the standard Proximitor® amplifier stage, preventing bandwidth rolloff that would attenuate high-frequency shaft dynamic events such as sub-synchronous instability or blade-pass frequency components.

Connector Contact Resistance Stability: Factory-crimped contacts achieve a contact resistance below 5 mΩ per termination, with a retention force exceeding 45 N. Field-crimped or screw-terminal substitutes typically exhibit contact resistance in the 20–100 mΩ range and are subject to fretting corrosion in vibrating environments — introducing a DC offset error of up to 2 mV per termination, which translates directly to a false gap reading of approximately 10 µm at standard Proximitor® sensitivity.

EMC Design: The braid-over-foil composite shield provides low-impedance coverage at both low frequencies (foil) and high frequencies (braid), addressing both power-frequency magnetic field coupling and RF interference from variable-frequency drives and wireless transmitters common in modern process plants.

System Integration Benefits

• Deterministic signal latency: The cable’s controlled impedance and capacitance ensure that the Proximitor® output signal reaches the 3500 rack input within the system’s defined signal propagation budget, preserving the sub-millisecond timing accuracy required for synchronous sampling in phase-referenced vibration analysis.
• Zero-configuration installation: Factory-terminated connectors eliminate field wiring decisions — polarity, shield termination point, and connector torque are pre-engineered, reducing commissioning time and eliminating a class of installation errors that are difficult to detect without specialized test equipment.
• Diagnostic transparency: The cable’s low and stable impedance allows the 3500 rack’s built-in cable fault detection to accurately distinguish between a genuine sensor fault and a cable degradation event, improving alarm specificity and reducing nuisance trips.
• Spare-parts traceability: The CB2W100-200 part number maps directly to Bently Nevada’s bill of materials, enabling one-to-one replacement documentation in CMMS systems (SAP PM, Maximo) without engineering re-evaluation.
• API 670 compliance support: Use of OEM-specified cabling satisfies the cable specification requirements of API Standard 670 (5th Edition), Section 6.3, which mandates that interconnecting cables meet the transducer manufacturer’s specifications for signal integrity.
• Reduced EMI susceptibility in shared cable trays: The composite shield and twisted-pair geometry allow the CB2W100-200 to be routed in proximity to 24 VDC instrument power cables without exceeding the 1% full-scale noise floor specified for 3500 Series displacement channels.
• Long-term availability assurance: As a controlled Bently Nevada spare, the CB2W100-200 is maintained in the Baker Hughes global spare-parts network, with documented supersession paths if the part number is ever revised — eliminating the obsolescence risk associated with generic cable substitutes.
• Thermal stability across service life: The jacket and insulation materials are rated for continuous service at +85 °C, ensuring that the cable’s electrical characteristics remain within specification even in turbine enclosures where ambient temperatures routinely exceed 60 °C during steady-state operation.

Quality Assurance & Global Logistics

Every CB2W100-200 unit dispatched from our Xiamen, China facility undergoes a three-stage verification protocol before shipment. First, the part number label and connector geometry are cross-referenced against the Bently Nevada parts catalog to confirm authenticity. Second, shield continuity and conductor resistance are measured with a calibrated LCR meter to verify that the cable meets the electrical specifications required for 3500 Series signal integrity. Third, connector retention force is checked to confirm that the locking mechanism will maintain contact under the vibration levels specified in IEC 60068-2-6 (10–500 Hz, 2 g).

Units sourced from authorized distributor channels are accompanied by original manufacturer packaging and, where available, certificates of conformance traceable to the Baker Hughes quality management system. Surplus units are individually inspected and tested; documentation packages are assembled on request for customers with CMMS traceability requirements.

Logistics from Xiamen to major industrial hubs are supported by DHL Express, FedEx International Priority, and sea freight consolidation for volume orders. Typical transit times: 3–5 business days to Southeast Asia and the Middle East; 5–7 business days to Europe; 6–9 business days to North America. All shipments are insured and tracked from dispatch to delivery confirmation. Export documentation including commercial invoice, packing list, and HS code declaration (HS 8544.42) is prepared as standard for customs clearance.
