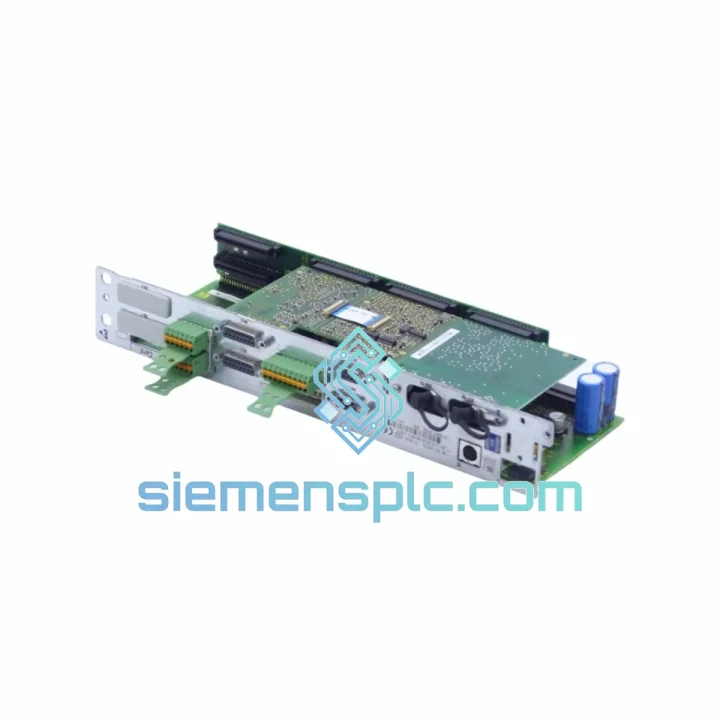

Bosch Rexroth CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW Drive Control Board

CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW — Stop the Bleeding. Your Line Restarts Today.

Your IndraDrive C axis just dropped out. The HMI is throwing F8022 or E8025. The control section is dead — no heartbeat on the status LED, no response on the service port. You’ve already ruled out the power section. It’s the CDB01.1C. You need a replacement board, not a lecture. We have it. It ships today from Xiamen.

Every hour this line stays down, you’re burning shift labor, missing delivery windows, and fielding calls from production management. The Bosch Rexroth CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW is the exact control section that runs your IndraDrive C servo axis — handling dual ENS encoder feedback, onboard STO safety logic, and real-time motion sequencing. There is no workaround. There is no substitute. You need this part number, and you need it fast.

📧 URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Confirming the CDB01.1C has failed — not the power section:

Before pulling the control board, verify the HCS power section is healthy. Check DC bus voltage at the intermediate circuit — it should be stable at nominal (typically 750 VDC for 400 V input). If the power section LEDs show green and the DC bus is live, but the control section status LED is dark or stuck in a fault pattern, the CDB01.1C is your culprit. Common fault codes that point directly to control section failure:

• F8022 — Control voltage failure: Internal 24 V rail on the control section has collapsed. Not recoverable by reset.
• E8025 — Processor watchdog timeout: DSP on the control board has locked up. Indicates hardware fault, not a parameter issue.
• F2026 — Encoder evaluation fault (X8): If the encoder cable and motor check out, the ENS interface on the CDB01.1C itself may have failed.
• F8010 — Undervoltage in control section: Often triggered by a failing internal DC/DC converter on the board.

Step-by-step replacement procedure:

1. Safe isolation first. Engage STO via your safety relay or PLC output before touching the drive. Confirm the STO LED on the drive extinguishes. Lock out / tag out the AC supply to the HCS power section. Wait a minimum of 5 minutes for DC bus capacitors to discharge — measure with a calibrated meter before proceeding.
2. Document your parameters. If the drive was previously commissioned and you have access to IndraWorks DS, export the full parameter set (P-0-0001 through the application-specific range) to a backup file. If the control section is completely dead and you cannot connect, retrieve parameters from your project archive or the machine builder’s documentation. You will need to re-commission from scratch if no backup exists.
3. Disconnect all control section connectors. Label and photograph X8 (motor encoder), X4 (measuring encoder), X1 (I/O), X2 (I/O), and any fieldbus module connectors before removal. The CDB01.1C uses a keyed connector system, but labeling prevents mistakes under pressure.
4. Release the control section locking mechanism. The CDB01.1C slides into the HCS drive unit on guide rails and is secured by a front-panel latch. Press the latch release tab and slide the board forward — it will disengage from the backplane connector. No tools required for extraction.
5. Seat the replacement board. Align the new CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW on the guide rails and slide it fully home until the latch clicks. Confirm the backplane connector is fully engaged — a partial seating will cause intermittent faults that are difficult to diagnose.
6. Firmware version check. The replacement board ships with firmware pre-loaded (FW suffix). Before restoring parameters, verify the firmware version matches your application requirements using IndraWorks DS (P-0-0030). If your machine requires a specific firmware revision, update via the service interface before loading parameters. Mismatched firmware versions can cause parameter restore failures or unexpected axis behavior.
7. Restore parameters and recommission. Load your parameter backup via IndraWorks DS. Perform a motor identification run if the motor data was not previously stored in the parameter set. Verify encoder feedback direction and scaling. Run the axis through a slow manual jog before enabling automatic operation.
8. STO function test. Before returning the machine to production, verify the STO function operates correctly. Trigger STO via your safety circuit and confirm the drive responds with the expected safe state. Document the test result per your site’s safety validation procedure.

Configuration notes specific to this variant:

• The -SE- designation indicates the standard control section tier. Confirm your application does not require the higher-capability -MA- or -DA- variants before ordering.
• The NNN/NNN fieldbus slots are empty. If your machine uses PROFIBUS, PROFINET, or EtherNet/IP, the communication module must be transferred from the failed board to the replacement — or a new module ordered separately. The modules are field-installable without tools.
• The -S- STO variant requires correct wiring of the X40 safety connector. If the STO circuit is not wired or the safety relay is not energized, the drive will not enable. This is a common commissioning oversight after a board swap.

Reliability in Harsh Conditions

The CDB01.1C-SE-ENS-ENS-NNN-NNN-NN-S-NN-FW is not office electronics. It was designed for the factory floor — where ambient temperatures swing, coolant mist is in the air, and the cabinet takes vibration from nearby presses and compressors every shift.

Bosch Rexroth engineers the IndraDrive C control section to withstand continuous operation in environments that would kill consumer-grade electronics within weeks. The PCB uses conformal coating on critical circuit areas to resist condensation and airborne contaminants. The backplane connector system is rated for thousands of mating cycles and maintains reliable electrical contact under vibration loads up to 1.5 g (10–200 Hz, per IEC 60068-2-6). The board’s thermal management is designed for operation in sealed control cabinets where ambient temperatures can reach 45 °C without derating.

In automotive body shops, where weld spatter and electromagnetic interference from resistance welders are constant threats, IndraDrive C control sections run 24/7 across multi-axis gantry systems. In food and beverage plants, where washdown cycles create humidity spikes, the conformal-coated boards maintain insulation resistance. In mining and heavy industry, where vibration from crushers and conveyors propagates through the entire structure, the CDB01.1C’s mechanically robust slide-in mounting and locking backplane connector keep the board seated and connected.

Every unit we ship has been stored in climate-controlled conditions, in original ESD-safe packaging, with desiccant. We do not warehouse boards in uncontrolled environments. What you receive is a board that is ready to go into service — not one that has been sitting in a humid warehouse for three years.

Global Express Logistics

We operate from Xiamen, China — one of the country’s primary export hubs with direct access to DHL, FedEx, and UPS international express networks. When you confirm your order, the clock starts immediately.

Typical dispatch timeline: Orders confirmed before 14:00 CST ship same day. Orders confirmed after 14:00 CST ship next business morning. We do not batch shipments — your order moves as soon as payment or PO confirmation is received.

Transit times from Xiamen (express services):

• Southeast Asia (Singapore, Thailand, Vietnam, Malaysia): 2–3 business days via DHL Express
• Europe (Germany, Netherlands, UK, Poland, Italy): 3–5 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia, Qatar): 3–4 business days via FedEx International Priority
• Australia & New Zealand: 3–4 business days via DHL Express
• South America (Brazil, Chile, Colombia): 5–7 business days via FedEx International Priority

Shipment documentation provided with every order: Commercial invoice (with accurate HS code for customs clearance), packing list, certificate of origin, and DHL/FedEx airway bill with live tracking number. For customers requiring additional export documentation — EUR.1 movement certificate, Form A GSP certificate, or specific country import permits — advise us at order confirmation and we will arrange accordingly.

All shipments are fully insured. In the event of transit damage or loss, we handle the carrier claim and arrange replacement dispatch without waiting for claim resolution. Your production line does not wait for insurance paperwork.

For emergency orders where standard express is not fast enough, we can arrange same-day courier collection and overnight routing to major hubs. Contact us directly on WhatsApp for time-critical escalations.
