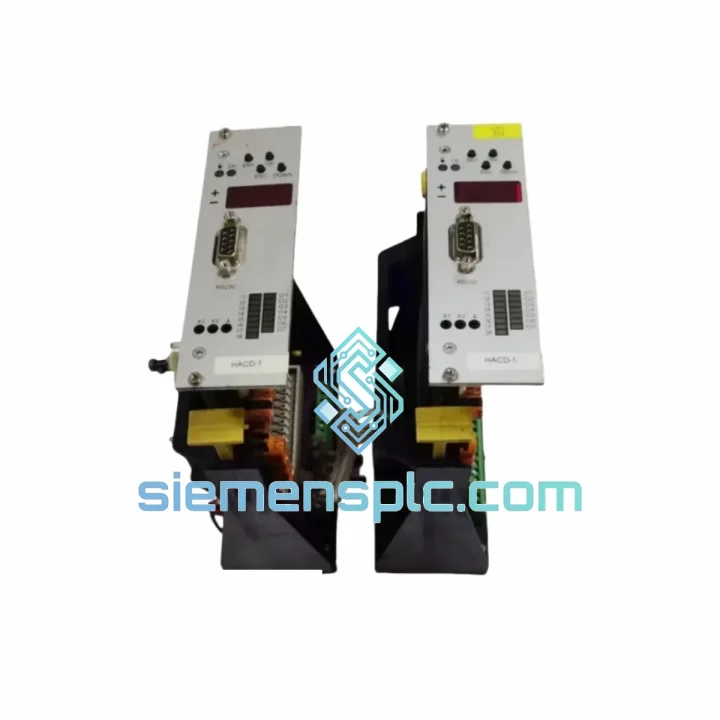

Bosch Rexroth VT-HACD-1-14/V0/1-0-0 R900745354 Hydraulic Axis Control Card

Bosch Rexroth VT-HACD-1-14/V0/1-0-0 R900745354 — Stop the Clock on Your Hydraulic Downtime

Every hour a hydraulic press, injection molding machine, or die-casting cell sits idle costs real money — tooling delays, missed delivery windows, contractual penalties. The Bosch Rexroth VT-HACD-1-14/V0/1-0-0 (OEM Part No. R900745354) is the closed-loop axis control card at the heart of your servo-hydraulic loop. When it fails, nothing downstream works. We keep verified stock in Xiamen, China, and we ship the same business day orders are confirmed before 15:00 CST. That is the only answer that matters when your line is down.

siemensplc.com has been sourcing and supplying Bosch Rexroth VT-series electronics for industrial clients across Southeast Asia, the Middle East, and Europe. Our warehouse team handles export documentation, customs classification, and carrier booking in parallel — so the moment payment clears, the clock is already running in your favor.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After a decade of field calls, the VT-HACD-1-14 fails in predictable ways. Knowing the pattern cuts your diagnosis time from hours to minutes.

Most Common Failure Signatures:

• Axis drift / position creep at standstill: The integrator in the position controller has wound up due to a noisy feedback signal or a degraded transducer cable shield. Before condemning the card, measure the feedback signal at the card terminal with a scope — if you see more than 50 mV peak-to-peak noise at rest, fix the cable first. If the signal is clean and drift persists, the card’s DAC output stage has failed.
• Fault LED solid red, no valve output: The card’s internal watchdog has tripped. This is almost always caused by a supply voltage dip below 21.6 V during a high-demand cycle. Check your 24 V rail under load. If the rail is stable and the fault persists after a power cycle, the card’s microcontroller has locked — replacement is the only fix.
• Oscillation / hunting on position loop: Gain parameters stored in the card’s non-volatile memory have corrupted, or the card has been swapped without re-parameterization. Do not assume the replacement card carries the same gain set as the failed unit — it will not.
• Valve output saturated in one direction: The command offset trim (DIP switch SW3 or analog zero-offset pot, depending on hardware revision) has drifted. On the /V0 variant, this is a software-adjustable parameter via the Rexroth commissioning tool (BODAC or WinBASS II).

Replacement Checklist — Do This Before You Power Up:

• Record all DIP switch positions on the failed card before removal. Photograph them. The /V0 variant uses SW1–SW4 for feedback type, enable logic polarity, and ramp enable. A wrong switch setting will cause immediate fault on power-up and wastes time.
• Confirm the hardware revision suffix matches. The /V0/1-0-0 suffix encodes the feedback interface version and software option set. Substituting a /V1 or /V2 variant without engineering review can result in incompatible parameter structures.
• Re-enter all axis parameters from your backup. If no backup exists, you will need to recommission from scratch using the machine’s original commissioning report or the Rexroth BODAC software connected to the card’s RS-232 service port.
• After parameter entry, perform a slow manual jog at 5% velocity command before enabling automatic mode. Verify the axis moves in the correct direction and that the position feedback reading tracks correctly on the controller HMI.
• Check valve coil resistance before connecting the card output. An open or shorted coil will damage the card’s output stage within seconds of enabling.

Reliability in Harsh Conditions

The VT-HACD-1-14/V0/1-0-0 was engineered for continuous duty in environments that would destroy consumer-grade electronics within weeks. Bosch Rexroth’s industrial qualification process for this series includes vibration testing to IEC 60068-2-6 (sinusoidal, 10–150 Hz, 1 g), shock testing to IEC 60068-2-27 (15 g, 11 ms half-sine), and damp heat cycling to IEC 60068-2-78 (40 °C / 93% RH, 96 hours). The PCB conformal coating on the /V0 variant provides additional protection against condensation and airborne contaminants common in hydraulic machine enclosures — oil mist, metallic dust, and cleaning solvents.

The card’s analog signal chain uses precision thin-film resistors with a temperature coefficient below 25 ppm/°C, which means the zero-offset and gain calibration remain stable across the full operating temperature range without field recalibration. In steel mill and die-casting environments where cabinet temperatures routinely reach 45 °C, this thermal stability directly translates to tighter position repeatability over a production shift.

The 24 V power input incorporates transient suppression rated to IEC 61000-4-5 Level 3 (2 kV line-to-earth), protecting the card against the voltage spikes generated by large solenoid valves switching on the same power rail — a common real-world failure mode for less robust third-party alternatives.

Global Express Logistics

Our dispatch workflow is built around one objective: getting the part on a plane the same day you confirm the order.

• Order confirmation before 15:00 CST: Unit is picked, inspected, ESD-bagged, foam-packed, and handed to DHL or FedEx the same afternoon. Tracking number sent to your email within 2 hours of carrier pickup.
• Export documentation prepared in parallel: Commercial invoice, packing list, and certificate of origin are generated during packing — not after. HS Code 8537.10 applies for most jurisdictions. ECCN classification available on request for US-bound shipments.
• Xiamen Gaoqi International Airport (XMN) operates daily direct cargo connections to Singapore, Dubai, Frankfurt, Los Angeles, and Tokyo. DHL Express transit times from Xiamen: Southeast Asia 1–2 days, Middle East 2–3 days, Europe 3–4 days, North America 3–5 days.
• Customs clearance support: We pre-classify all shipments and provide HS code documentation to minimize customs hold risk. For EU imports, we can provide EUR.1 movement certificates where applicable.
• Bulk orders: For 3+ units, sea freight via Xiamen Port (CNXMN) is available with full container load (FCL) or less-than-container load (LCL) options. Transit to major ports: Singapore 3 days, Rotterdam 28 days, Los Angeles 18 days.

Contact Information

Send your part number, required quantity, and destination country — we will respond with stock confirmation and a firm quote within 2 business hours.

📧 Email: [email protected]
📱 WhatsApp: +86 18359268345
🌐 Web: siemensplc.com
