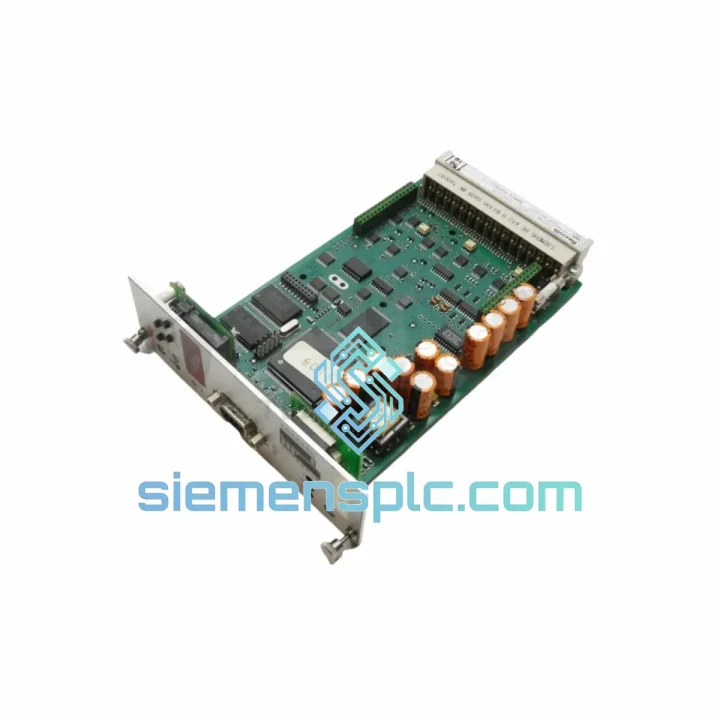

Bosch Rexroth VT-HACD-DPQ-1-20/V0/1-0-0 R901054664 Hydraulic Axis Control Card

VT-HACD-DPQ-1-20/V0/1-0-0 R901054664 — Stop the Bleeding: Every Hour of Hydraulic Downtime Costs You Real Money

Your press is down. Your injection molding line is cold. Your rolling mill is idle. The culprit: a failed Bosch Rexroth VT-HACD-DPQ-1-20/V0/1-0-0 (Material No. R901054664) hydraulic axis control driver card. You already know what this module does — it’s the brain behind your proportional valve loop. Without it, nothing moves. We stock it. It ships today from Xiamen.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Fifteen years of field calls on VT-HACD systems teach you the same lessons. Here is what actually matters when you are standing in front of a dead machine at 2 AM:

1. Confirm the card is the fault — not the valve or transducer.
Before pulling the VT-HACD-DPQ-1-20, check the LED status array on the card face. A solid red FAULT LED with no command signal present almost always points to an internal DSP failure or blown output stage — card replacement confirmed. If the FAULT LED is blinking in a pattern, decode it against the VT-HACD diagnostic table in RE 30028 before ordering. A blinking fault can be a wiring issue, not a dead card.

2. Firmware version lock — do not ignore this.
The suffix V0/1-0-0 is not cosmetic. It defines the firmware build loaded at the factory. If your replacement card arrives with a different firmware suffix, the parameter set from your old card will not load cleanly. The axis will behave erratically or refuse to enable. Always specify R901054664 with V0/1-0-0 when ordering. We ship exactly that.

3. Back up your parameter file before you pull the old card.
If the card is still partially alive — even if the axis will not move — connect IndraWorks and export the parameter file (.par). This saves you from re-commissioning from scratch. If the card is completely dead, check the host PLC or HMI for a stored parameter backup. Most integrators save one. If not, you are re-commissioning: have the valve datasheet and transducer calibration data ready.

4. Rack slot addressing — the DPQ-1-20 is slot-specific.
The “-20” in the part number designates the rack slot position. The VT-HACD backplane assigns I/O addresses based on physical slot. Inserting the replacement card into the wrong slot will cause address conflicts and the axis will not initialize. Verify the slot number against your electrical drawings before seating the card.

5. Output stage current calibration after swap.
The DPQ dual-output stage drives proportional valve solenoids. After card replacement, run the valve zero-offset and gain calibration routine in IndraWorks. Even with identical firmware and parameters, solenoid null current can drift ±5 mA between card production batches. Skipping this step causes axis drift at standstill — a subtle fault that wastes hours of troubleshooting.

Common fault codes on VT-HACD systems:

• F2010 — Axis position error exceeded: check transducer wiring and feedback scaling parameters before blaming the card.
• F3110 — Output stage overcurrent: usually a shorted valve solenoid, not a card failure. Disconnect valve and re-test.
• F6010 — Parameter checksum error: card EEPROM corruption. Card replacement required. Load parameter backup immediately after swap.
• E2050 — Command signal out of range: check analog input wiring and PLC output scaling. Card is likely fine.
• F8100 — Internal hardware fault: DSP or power supply failure inside the card. Replace R901054664.

Reliability in Harsh Conditions

The VT-HACD-DPQ-1-20/V0/1-0-0 was not designed for a climate-controlled server room. It was built for the floor — steel mills, die casting cells, offshore platforms, and hydraulic test rigs where the environment actively tries to kill electronics.

The card’s EMC-hardened PCB layout uses ground plane isolation between the DSP logic section and the high-current valve driver output stage. This separation prevents switching transients from the solenoid drivers from corrupting the control loop — a failure mode that plagues cheaper third-party alternatives. The onboard power supply regulation maintains stable 5 V and 3.3 V rails even when the 24 VDC plant supply sags to 18 V during motor starts.

Thermal design is conservative. The card is rated for continuous operation at ambient temperatures up to 55°C inside the control cabinet. The conformal coating on the PCB provides protection against condensation and airborne contaminants — relevant in foundry and coastal environments where humidity cycles daily. Vibration resistance meets IEC 60068-2-6 test profiles, which covers the shock and vibration loads typical of press and forging machine installations.

Every unit we ship from Xiamen stock is inspected for physical damage, connector integrity, and label authenticity against the R901054664 material number. No refurbished units. No remarked boards. What you receive is what Bosch Rexroth shipped from Germany.

Global Express Logistics

Our warehouse is in Xiamen, Fujian — one of China’s primary industrial export hubs with direct access to DHL, FedEx, and UPS international gateways. When you confirm an order before 14:00 CST, the unit is packed, documented, and handed to the carrier the same day.

Typical transit times from Xiamen:

• Southeast Asia (Singapore, Thailand, Vietnam): 2–3 business days via DHL Express
• Europe (Germany, Netherlands, Poland): 3–5 business days via FedEx International Priority
• North America (USA, Canada, Mexico): 3–5 business days via DHL Express Worldwide
• Middle East (UAE, Saudi Arabia): 3–4 business days via FedEx
• Australia / New Zealand: 3–5 business days via DHL

Every shipment includes a commercial invoice with accurate HS code classification (HS 8537.10 for control cards), packing list, and — on request — a certificate of origin for customs clearance. We handle export documentation in-house. No freight forwarder delays. For customers in the EU, we can provide EORI-compliant documentation to streamline customs entry. For urgent shipments where every hour counts, we offer Saturday pickup with DHL at no additional lead time penalty.

Track your shipment in real time. We send the AWB number within 2 hours of dispatch. If your shipment is held at customs, our logistics team intervenes directly with the carrier — we have cleared stuck shipments in Germany, the Netherlands, and Australia within 24 hours of notification.
