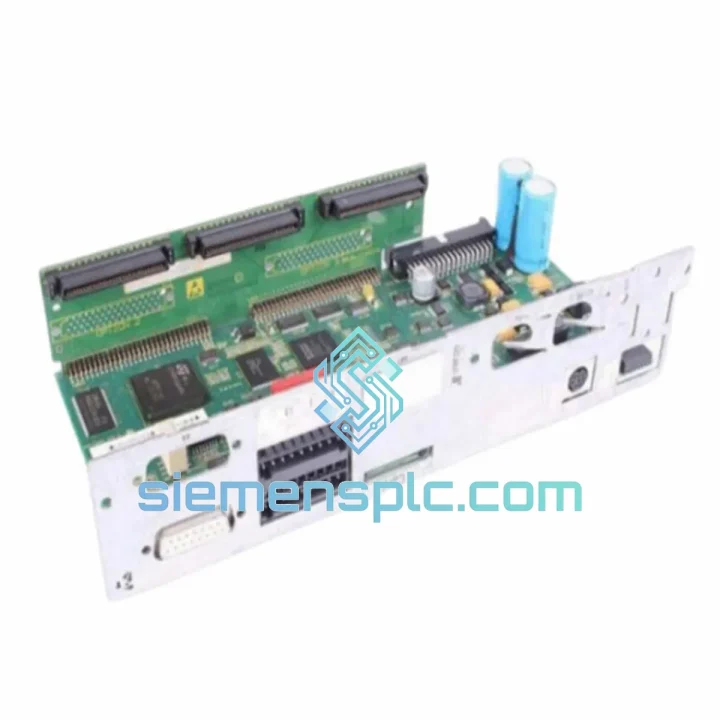

Bosch Rexroth CSB01.1C-SE-ENS-EN1-NN-S-NN-FW Servo Drive

CSB01.1C-SE-ENS-EN1-NN-S-NN-FW: Your Axis Is Down — Here’s How We Get It Back Up

A failed IndraDrive Cs control section doesn’t announce itself politely. One shift it’s running fine; the next, the axis is locked out, the line is cold, and your maintenance team is staring at an F-fault they can’t clear. The Bosch Rexroth CSB01.1C-SE-ENS-EN1-NN-S-NN-FW is the all-in-one compact servo control section for the IndraDrive Cs platform — encoder interface, dual fieldbus (SERCOS III + EtherNet/IP), integrated STO, and firmware all in a single plug-in module. When it fails, nothing substitutes for the exact part number. We stock it in Xiamen. It ships today.

Downtime on a servo axis costs real money — conservative estimates put unplanned CNC or packaging line stoppages at $5,000–$22,000 per hour depending on industry. A six-week lead time from a distributor is not a solution. Our model is simple: verified OEM stock, same-day dispatch before 15:00 CST, DHL Express or FedEx Priority to your door in 2–5 business days. We’ve shipped this exact module to automotive plants in Germany, semiconductor fabs in Taiwan, and food processing lines in Mexico. The logistics are proven.

⚡ URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Ten years of field swaps on IndraDrive Cs systems distills down to this: most CSB01.1C failures follow predictable patterns, and knowing them cuts your diagnosis time from hours to minutes.

Fault Codes That Point Directly at the Control Section

• F2026 / F2027 — Encoder evaluation error: The SE interface on the control section handles all Hiperface and EnDat signal conditioning. When these faults appear without any cable or motor change, and they follow the drive to a test bench with a known-good motor, the CSB01.1C is the source. Check the 15-pin HD-Sub encoder connector for fretting corrosion on pins 1, 5, and 9 before condemning the module — vibration-induced micro-movement on that connector mimics a dying control section.
• E2050 — SERCOS III communication phase error: The dual-port SERCOS ring on the ENS interface is managed entirely by the control section’s onboard FPGA. If the ring is intact (verify with the SERCOS master’s topology view) and only this node is dropping phase, the FPGA timing reference is degrading. This fault often appears intermittently for days before becoming permanent — treat it as a warning, not a nuisance.
• F8010 — DC bus undervoltage: Before assuming a power supply fault, measure DC bus voltage directly at the CSE power section terminals. If bus voltage is within spec and F8010 persists, the control section’s internal voltage sensing divider has drifted out of tolerance. A replacement CSB01.1C will clear this immediately.
• F8078 — Overcurrent / short circuit on a previously stable axis: If no motor, cable, or load changes have occurred, suspect IGBT gate driver signal corruption originating in the control section. Do not attempt repeated resets — sustained overcurrent events risk motor winding insulation damage. Replace the control section and run motor insulation resistance test before re-enabling.
• Intermittent position drift after thermal soak (30–60 min runtime): This is the classic signature of a degrading EnDat/Hiperface signal conditioning circuit. The fault won’t appear during cold commissioning. Run the axis through a full thermal cycle before signing off on a repair — if drift reappears, the CSB01.1C is not fully recovered.

Step-by-Step Replacement Checklist

• Isolate and lock out the cabinet. Discharge the DC bus — minimum 5-minute wait, then verify with a calibrated meter at the CSE power section terminals. The capacitor bank holds lethal voltage after power-off.
• Back up all drive parameters via IndraWorks DS before touching the hardware. The replacement module ships with factory defaults. Your motor data set, axis tuning, homing parameters, and safety configuration are stored in the control section — they do not transfer automatically.
• Record the firmware version from the label on the old CSB01.1C. If the replacement ships with a different firmware revision, update firmware first using IndraWorks DS before restoring parameters. Restoring parameters from a mismatched firmware version causes parameter validation errors and can corrupt the motor data set.
• The CSB01.1C uses no DIP switches or rotary address selectors. Node addressing on both SERCOS III and EtherNet/IP is handled entirely in software by the fieldbus master. No hardware configuration changes are required on the replacement unit.
• After parameter restore, execute the motor data identification routine (command P-0-0165) before returning the axis to production. A fresh control section resets internal motor model calibration data accumulated during commissioning.
• Verify STO wiring on both channels (STO-A and STO-B) with a continuity check before enabling the drive. An open STO circuit generates F7010 — a safety fault that looks unrelated to the swap but is caused by disturbed wiring during the module exchange.
• Measure 24 VDC control supply voltage at the module terminals, not at the PSU output. Long cable runs with undersized conductors cause voltage drop that produces erratic behavior indistinguishable from a faulty control section.

Reliability in Harsh Conditions

The IndraDrive Cs platform was not designed for a climate-controlled lab. It was designed for the floor — press shops, packaging halls, and semiconductor fabs where temperature swings, vibration, and airborne contamination are daily realities. The CSB01.1C-SE-ENS-EN1-NN-S-NN-FW carries validated environmental ratings that reflect this.

• Vibration (EN 60068-2-6): Sinusoidal sweep 10–500 Hz at 1 g. The fanless convection cooling design eliminates the fan bearing — the single most common mechanical failure point in servo drives installed on vibrating machine structures. No fan means no bearing fatigue, no blade imbalance, and no debris ingestion path.
• Shock (EN 60068-2-27): 15 g, 11 ms half-sine pulse. Suitable for press-mounted installations where structural shock is transmitted directly to the cabinet during each press stroke.
• Thermal cycling: Validated across the 0–45°C operating range with derating curves published for ambient temperatures above 40°C. The passive thermal management means no thermal runaway from a blocked fan — the module simply throttles output current according to the published derating curve.
• Humidity and condensation: 5–95% RH non-condensing. The control PCB carries conformal coating that provides a secondary barrier against condensation events during cold startups in unheated facilities — a common failure scenario in northern European and Canadian plants during winter commissioning.
• EMC immunity (EN 61800-3, Category C2): The dual-port SERCOS III ring topology provides inherent communication redundancy. A single cable fault or EMI event on one ring segment does not interrupt communication — the ring self-heals at the protocol level without axis interruption or PLC intervention.
• Pollution degree PD2: Suitable for standard industrial cabinet environments. For PD3 environments involving conductive dust or cutting fluid mist, additional cabinet filtration and positive-pressure purging are required — the module itself is not rated for direct exposure.

All units in our Xiamen inventory are stored at 18–25°C, 40–60% RH, in original Bosch Rexroth anti-static packaging. Inventory rotation is managed on a 24-month maximum storage cycle to ensure electrolytic capacitor integrity on delivery.

Global Express Logistics

Our fulfillment operation has one design constraint: your replacement part must arrive before your next production shift, not after your next planning meeting.

• Same-day dispatch cutoff: Orders with confirmed payment received before 15:00 CST ship the same business day from Xiamen. This is a hard cutoff — not a target. Plan your order accordingly.
• Primary carriers: DHL Express Worldwide and FedEx International Priority. Both provide door-to-door tracking, proactive customs clearance handling, and shipment-level insurance. For temperature-sensitive or high-value consignments, climate-controlled transit is available on request.
• Estimated transit times: Southeast Asia 1–2 business days | East Asia (Japan, Korea) 1–2 days | Europe 2–3 days | North America 2–4 days | Middle East 3–4 days | Africa / South America 4–6 days. Times reflect carrier performance under normal customs conditions — not worst-case scenarios.
• Export documentation: Commercial invoice, packing list, and certificate of origin are prepared for every international shipment. HS code 8537.10 is pre-declared on all servo drive exports. Customers requiring ECCN classification letters, end-user certificates, or import permit support should contact us before placing the order.
• Packaging standard: Each CSB01.1C ships in its original Rexroth anti-static bag, heat-sealed, inside a double-wall corrugated carton with foam-in-place cushioning. The carton is rated for a 1.2 m drop test. Tracking waybill numbers are emailed within 2 hours of dispatch. WhatsApp shipment updates are available for urgent orders on request.
