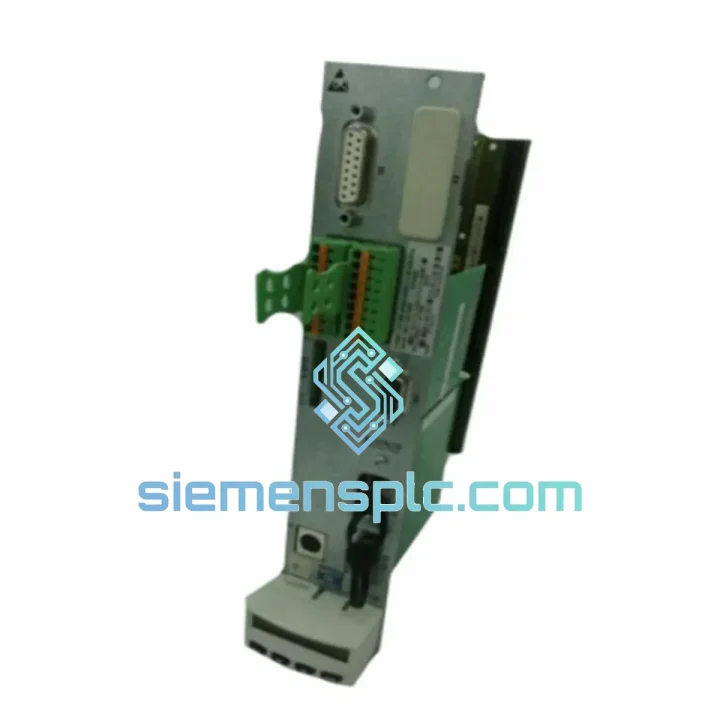

Bosch Rexroth CSB01.1C-SE-ENS-NNN-L1-S-NN-FW Servo Drive Controller – IndraDrive C Series

Bosch Rexroth CSB01.1C-SE-ENS-NNN-L1-S-NN-FW — Single-Axis IndraDrive C Control Section for High-Precision Servo Motion

The CSB01.1C-SE-ENS-NNN-L1-S-NN-FW is a single-axis control section module within Bosch Rexroth’s IndraDrive C platform. It occupies the command-processing layer of the drive architecture: receiving motion setpoints from the upstream controller via dual-protocol fieldbus, executing closed-loop position and velocity algorithms internally, and issuing PWM gate commands to the paired power section at deterministic cycle rates. This functional separation — control intelligence isolated from power conversion — is the structural basis for the IndraDrive C’s maintainability advantage: a failed control section can be swapped without disturbing the DC bus, power semiconductors, or motor cabling.

In a multi-axis servo system, the control section’s cycle time and communication latency directly govern the achievable contouring accuracy. The CSB01.1C operates its current control loop at 62.5 µs, velocity loop at 125 µs, and position loop at 250 µs — figures that place it within the deterministic response envelope required for coordinated CNC interpolation and electronic gearing applications. The SE-ENS communication suffix designates simultaneous SERCOS III and EtherNet/IP interface availability, enabling the module to operate natively in both time-synchronized motion networks and standard industrial Ethernet environments without hardware modification.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The CSB01.1C-SE-ENS-NNN-L1-S-NN-FW implements a dual-DSP processing architecture. The primary DSP handles real-time closed-loop control — current, velocity, and position regulation — while a secondary communication processor manages fieldbus protocol stacks independently. This physical separation prevents fieldbus interrupt latency from propagating into the servo control loop, a design constraint that becomes critical in high-speed contouring where jitter above ±1 µs in the current loop produces measurable velocity ripple at the motor shaft.

EMC Architecture: The control section PCB employs a multi-layer ground plane strategy with dedicated analog and digital ground domains joined at a single star point adjacent to the encoder interface connector. Differential signal pairs for SERCOS III fiber (or copper in SE variants) are routed with controlled impedance at 100 Ω ±10 %, minimizing common-mode noise injection from adjacent power switching transients. The backplane connector between control and power sections uses filtered signal lines with ferrite bead arrays on all logic-level signals crossing the boundary, providing >40 dB attenuation at frequencies above 10 MHz.

Encoder Interface Signal Conditioning: The S-type encoder interface incorporates hardware interpolation for TTL/HTL incremental signals up to 1 MHz input frequency, and a dedicated ASIC for serial encoder protocols (Hiperface, EnDat 2.1). The ASIC handles CRC verification on each encoder telegram at the hardware level, flagging transmission errors to the DSP without consuming DSP cycles — a design that maintains control loop determinism even under electrically noisy cable environments.

Thermal Management: The control section dissipates less than 8 W under full computational load. Heat is conducted through the aluminum housing to the cabinet backplane via direct contact, with no active cooling components on the control section itself. This passive thermal path eliminates fan-related failure modes and allows the module to operate in environments with high particulate contamination where fan-cooled electronics would require sealed enclosures.

Non-Volatile Parameter Storage: Drive parameters are stored in EEPROM with a write endurance of 100,000 cycles and data retention exceeding 10 years at 85 °C. On power-up, the firmware performs a CRC check on the parameter block before enabling the power stage — preventing operation with corrupted configuration data, a safeguard relevant in applications subject to frequent power interruptions.

System Integration Benefits

• Deterministic dual-protocol fieldbus: SERCOS III provides isochronous real-time communication with hardware-synchronized cycle times as low as 250 µs across all network nodes simultaneously, enabling tight multi-axis interpolation without software-level synchronization overhead.
• EtherNet/IP parallel operation: The ENS suffix allows EtherNet/IP to run concurrently with SERCOS III on separate physical ports, permitting diagnostic data, parameter access, and HMI communication to share the same control section without consuming SERCOS III bandwidth.
• Hot-swap control section replacement: The modular CSB/power section architecture allows the control section to be replaced with the DC bus energized (following Rexroth safe-swap procedure), reducing axis recovery time in multi-drive cabinets from hours to under 30 minutes.
• IndraWorks parameter migration: Drive parameters are exportable as XML project files in IndraWorks DS. A replacement CSB01.1C can be fully parameterized by project download in under 5 minutes, eliminating manual re-entry of axis-specific tuning data.
• Integrated oscilloscope and trace function: The firmware includes a 4-channel internal trace recorder with 1 ms resolution, accessible via IndraWorks without external instrumentation. This enables in-situ capture of velocity, torque, and position error waveforms during commissioning or fault diagnosis.
• Diagnostic transparency via SERCOS III: The module reports 32 drive state variables — including DC bus voltage, motor temperature, encoder status, and active fault codes — to the master controller on every SERCOS III cycle, providing the PLC with real-time drive health data without polling overhead.
• Electronic gearing and cam synchronization: The position control firmware supports master-slave electronic gearing with gear ratio resolution of 1:65535 and electronic cam table execution with up to 256 interpolation points, enabling complex synchronized motion profiles without external cam controllers.
• Scalable axis count: A single SERCOS III ring supports up to 254 nodes. The CSB01.1C participates as a standard SERCOS III slave, allowing system expansion from 1 to 254 axes on a single ring without architectural changes to the motion controller or network topology.

Quality Assurance & Global Logistics

Every CSB01.1C-SE-ENS-NNN-L1-S-NN-FW unit dispatched from our Xiamen facility is a genuine Bosch Rexroth OEM component. Units are sourced through traceable supply channels — authorized distributor stock, OEM decommission programs, and certified industrial surplus — and carry original Rexroth labeling, serial numbers, and date codes. Prior to dispatch, each unit undergoes physical inspection covering connector pin integrity, housing condition, label authenticity markers, and PCB visible inspection through connector apertures. Where test equipment is available, firmware boot verification and communication port response checks are performed.

Packaging uses anti-static ESD bags rated to ANSI/ESD S20.20, placed in foam-lined cartons with corner protection. For international shipments, we provide commercial invoice, packing list, and HS code reference documentation (HS 8537.10) to support customs clearance. Standard export routes from Xiamen serve Europe (DHL Express: 3–5 business days), North America (FedEx International Priority: 4–6 business days), Southeast Asia (2–3 business days), and the Middle East (5–7 business days). Bulk orders above 5 units qualify for sea freight consolidation with full container load options available for large procurement programs.

All units are covered by a 12-month warranty from dispatch date. Warranty claims are processed with replacement dispatch within 5 business days of confirmed fault verification. We do not sell refurbished-as-new or remanufactured units; warranty coverage reflects confidence in the supply chain integrity of every unit we ship.
