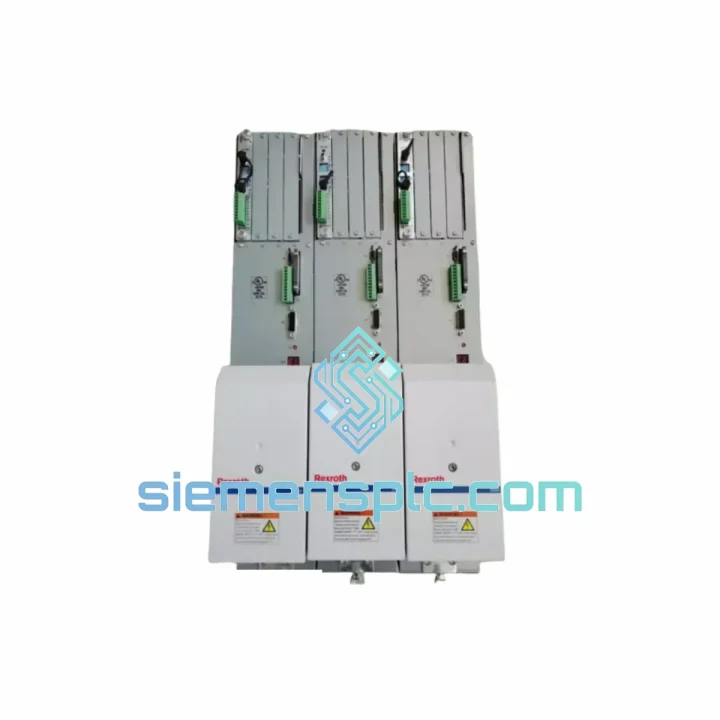

Bosch Rexroth HDS03.2-W100N-HS12-01-FW FWA-DIAX04-SSE-02V56-MS AC Servo Drive

HDS03.2-W100N-HS12-01-FW + FWA-DIAX04-SSE-02V56-MS: Stop the Clock on Your Downtime

Your CNC spindle just tripped. The HDS drive is dead. Every minute the machine sits idle, you’re bleeding money — scrap parts, missed delivery windows, overtime labor, and a plant manager breathing down your neck. You don’t need a lecture on servo theory right now. You need a verified, ready-to-ship replacement in your hands as fast as physically possible.

We stock the Bosch Rexroth HDS03.2-W100N-HS12-01-FW pre-loaded with firmware FWA-DIAX04-SSE-02V56-MS in Xiamen, China. Same-day dispatch on confirmed orders. DHL Express to most destinations in 2–4 business days. No waiting on factory lead times. No distributor runaround. One call, one shipment, machine back online.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault codes that bring you here:

• F2026 / F2027 — Power section overcurrent or short circuit. If clearing the fault and re-enabling doesn’t hold, the IGBT module inside the HDS is gone. Replace the drive.
• F8070 / F8078 — Firmware checksum error or flash memory corruption. This is a firmware-level failure; the drive will not recover through parameter reset. A replacement unit with FWA-DIAX04-SSE-02V56-MS pre-installed eliminates this entirely.
• E2050 — Feedback cable fault. Before condemning the drive, swap the IKS feedback cable first. If the fault persists after cable swap, the feedback receiver circuit on the drive board is damaged.
• F8010 — Mains undervoltage. Check HVR/HVE power supply module first. If the DC bus is healthy and F8010 persists, the drive’s internal voltage monitoring circuit has failed.
• F2036 — Motor overtemperature. Verify motor NTC/PTC wiring continuity. If wiring is intact and motor is cold, the drive’s temperature input circuit is faulty.

Replacement procedure — what to do before you power up the new unit:

1. Back up parameters first. If the old drive still powers on (even partially), connect IndraWorks DS or a BTV04 panel and export the full parameter set (.par file). This saves you 2–3 hours of re-commissioning.
2. Verify firmware compatibility. FWA-DIAX04-SSE-02V56-MS is a spindle/servo dual-mode firmware. Confirm your machine’s NC program and axis configuration match SSE mode. If your original drive ran SHS (spindle-only) or SER (servo-only) firmware, contact us — we can source the correct variant.
3. Check the SERCOS fiber ring. HDS drives use plastic fiber optic cables for SERCOS communication. Inspect both TX and RX ports on the new drive and the adjacent drives in the ring. A cracked fiber is a common cause of post-replacement communication faults.
4. Address assignment. The HDS03.2 uses a rotary address switch (S1) on the front panel. Set it to match the original drive’s SERCOS address before powering on. Mismatch causes immediate F8025 (SERCOS phase error).
5. DC bus pre-charge. Do not enable the drive immediately after power-on. Allow the HVR/HVE supply module to complete its pre-charge cycle (typically 3–5 seconds, indicated by the BB relay closing). Premature enable commands cause F8010 or F8015.
6. Load parameters. Restore the .par file via IndraWorks. Perform a motor identification run if the motor type or feedback type differs from the original configuration.
7. Test at reduced speed. Run the axis at 10% of maximum speed in manual mode before handing back to the NC program. Verify actual current, velocity feedback, and temperature readings are within normal range.

Reliability in Harsh Conditions

The HDS03.2 platform was engineered for the floor, not the lab. Bosch Rexroth designed this drive series to operate continuously in environments that would kill consumer-grade electronics within weeks.

The internal power section uses industrial-grade IGBT modules rated for sustained 100 A output with thermal headroom to handle cyclic overload peaks common in CNC spindle acceleration profiles. The forced-air cooling system is designed for contaminated air — the internal fan draws air through a filtered path, and the heatsink fins are spaced to resist clogging from metalworking coolant mist and aluminum swarf.

Vibration resistance meets IEC 60068-2-6 standards, covering the 10–150 Hz frequency range at 1 g acceleration — sufficient for drives mounted directly on machine tool frames subject to cutting forces and servo axis motion. The PCB assemblies use conformal coating on critical signal sections to resist humidity ingress, a common failure mode in foundry and food-processing environments where ambient humidity regularly exceeds 85% RH.

Operating temperature range is 0–45°C ambient with derating above 40°C. Storage temperature tolerance extends to -25°C to +70°C, meaning units shipped through cold-chain logistics or stored in unheated warehouses arrive fully functional. Every unit we dispatch from Xiamen is tested at ambient temperature before packaging — we do not ship cold-stored units without a prior power-on verification cycle.

Global Express Logistics

Our dispatch hub is in Xiamen, Fujian Province — one of China’s primary export ports with direct DHL and FedEx gateway access. Here’s exactly how your order moves:

• Order confirmed before 14:00 CST: Same-day packaging and handover to DHL/FedEx courier.
• DHL Express Worldwide: Xiamen → Frankfurt/Amsterdam/Chicago hub → final destination. Typical transit: 2–4 business days to Europe, 3–5 days to North America, 2–3 days to Southeast Asia.
• FedEx International Priority: Available as alternative carrier. Transit times comparable to DHL. Preferred for shipments to the Americas and Middle East.
• Export documentation: Commercial invoice, packing list, and HS code 8537.10 prepared as standard. For EU imports, EUR.1 movement certificate available on request. For US imports, we provide HTS code 8537.10.9170 classification documentation.
• Customs value declaration: Declared at actual transaction value. We do not under-declare. This protects you from customs seizure and ensures your insurance coverage is valid.
• Tracking: AWB number sent within 2 hours of carrier pickup. Real-time tracking link provided via email and WhatsApp.
• Emergency freight: For critical shutdowns, we can arrange next-flight-out courier service from Xiamen Gaoqi International Airport. Contact us directly for this option — it is not available through the standard checkout.
