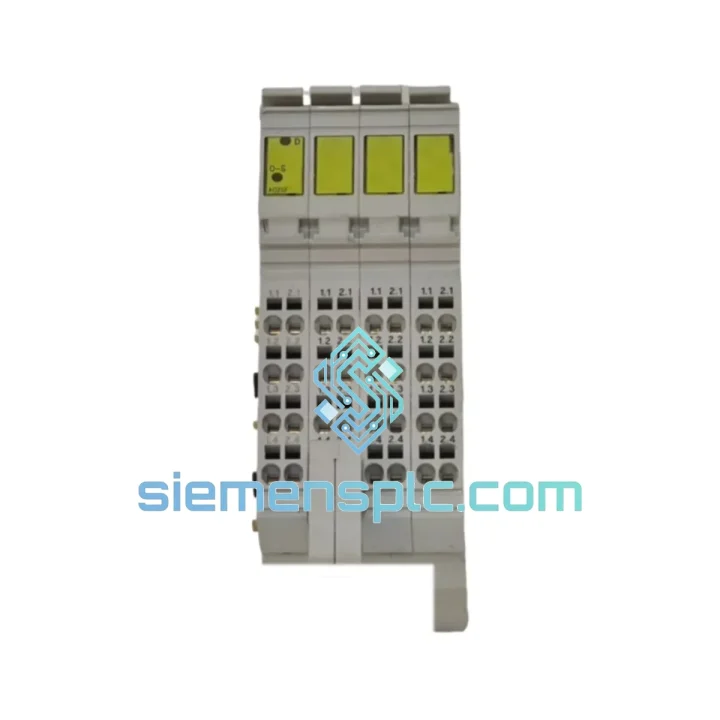

Bosch Rexroth R911170436 Connection Terminal – IndraDrive Series

Bosch Rexroth R911170436 Spring-Clamp Terminal – Wiring Interface Integrity in IndraDrive Control Architectures

Within a servo drive control loop, the mechanical and electrical integrity of every wiring interface directly determines signal fidelity, fault isolation speed, and long-term system availability. The Bosch Rexroth R911170436 is a genuine OEM spring-clamp (tension spring) connection terminal engineered specifically for the IndraDrive family of servo drives. Its role is not decorative — it is a precision wiring interface component that maintains stable contact resistance across the full thermal and mechanical stress envelope of an industrial drive cabinet.

Spring-clamp technology eliminates the creep relaxation inherent in screw-type terminals. Over time, screw terminals lose clamping force due to conductor cold-flow and thermal cycling, increasing contact resistance and introducing intermittent faults that are notoriously difficult to trace. The R911170436 applies a constant, calibrated spring force to the conductor cross-section, maintaining gas-tight contact regardless of ambient temperature swings between −25 °C and +70 °C. This is particularly critical in drive cabinets where power semiconductors generate localized heat cycles with every load transient.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

Spring-Force Mechanics and Contact Stability

The R911170436 uses a stainless-steel torsion spring that exerts a defined clamping force on the inserted conductor. Unlike screw terminals where torque is applied once at installation and degrades over time, the spring mechanism continuously compensates for conductor deformation. The contact normal force is maintained within a defined window — typically 5–15 N depending on conductor gauge — ensuring contact resistance remains below 5 mΩ throughout the service life of the terminal. This is measurable and repeatable, which matters when the terminal is part of a feedback signal path where millivolt-level signals are present.

EMC Design Considerations

In IndraDrive cabinets, high-frequency switching transients from IGBT commutation (typically 4–16 kHz carrier frequency) generate conducted and radiated interference. The R911170436’s tin-plated copper alloy contact surfaces provide low-impedance, broadband electrical continuity. When used in shielded cable terminations, the consistent contact geometry ensures the shield termination impedance remains low across the frequency range relevant to EMC compliance (150 kHz – 30 MHz per EN 55011). A loose or degraded screw terminal in the same position would introduce impedance discontinuities that compromise the drive’s CE-marked EMC performance.

Thermal Cycling Resilience

Drive cabinets in production environments experience daily thermal cycles as machines start and stop. Each cycle stresses the conductor-to-terminal interface. The polyamide PA housing of the R911170436 has a coefficient of thermal expansion (CTE) closely matched to the copper alloy contact insert, minimizing differential expansion stress at the interface. The UL 94 V-0 flame rating ensures that in the event of a fault arc, the housing does not propagate combustion — a mandatory requirement for components installed adjacent to power terminals in IEC 60204-1 compliant machinery.

Tool-Free Actuation and Maintenance Access

The push-in actuation mechanism allows conductor insertion and removal using a standard 2.5 mm flat-blade screwdriver or dedicated push-in tool to depress the spring lever. This design reduces maintenance time during drive replacement or rewiring operations. In a multi-axis IndraDrive M (HMS/HMD) installation with 20–40 terminal connections per drive module, the time saving per maintenance event is measurable in hours, not minutes.

System Integration Benefits

• Deterministic contact resistance: Spring-clamp technology holds contact resistance below 5 mΩ across the rated temperature range, eliminating the resistance drift that causes intermittent faults in screw-terminal installations over 3–5 year service intervals.
• Zero re-torque maintenance: Screw terminals in vibration-prone environments (e.g., press lines, compressors) require periodic re-torquing per IEC 60999. The R911170436 requires no scheduled re-torquing, reducing preventive maintenance labor by eliminating this task from the PM checklist.
• Reduced fault diagnosis time: Stable contact resistance means that when a drive fault occurs, technicians can rule out wiring interface degradation as a root cause immediately, narrowing the diagnostic search space to the drive electronics or motor.
• Compatibility across IndraDrive generations: The R911170436 is dimensionally and electrically compatible with IndraDrive C (HCS01/HCS02/HCS03), IndraDrive M (HMS01/HMD01), and IndraDrive Mi (KSM/KMS) connector positions, allowing a single terminal type to be stocked for multi-generation drive fleets.
• Signal path integrity for encoder feedback: When used in encoder or resolver feedback wiring, the terminal’s low and stable contact resistance prevents signal attenuation that could cause position feedback errors, particularly at high encoder resolutions (≥ 20-bit) where signal integrity margins are tight.
• Compliance with IEC 60947-7-1: The terminal meets the requirements of IEC 60947-7-1 (low-voltage switchgear — terminal blocks for copper conductors), ensuring it is qualified for use in CE-marked control panels without additional component-level certification effort.
• Vibration resistance per IEC 60068-2-6: The spring-clamp mechanism maintains contact under sinusoidal vibration profiles up to 5g, 10–150 Hz — the range relevant to machine tool spindle vibration and conveyor drive installations.
• Direct OEM replacement, no BOM deviation: Using the genuine R911170436 ensures the as-built wiring documentation matches the installed hardware exactly, which is critical for machinery CE declarations and insurance compliance in regulated industries (automotive, pharmaceutical, food processing).
