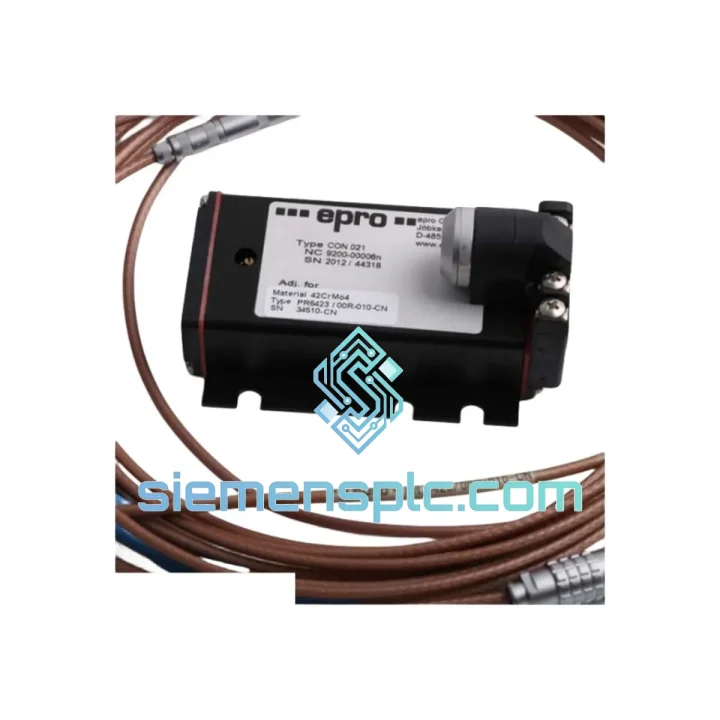

EMERSON PR6423/010-030 CON021 Proximity Transducer – Epro Series

EMERSON PR6423/010-030 CON021 — Eddy-Current Proximity Transducer for Rotating Machinery Protection

The PR6423/010-030 CON021 is a 10 mm eddy-current proximity transducer manufactured by EMERSON under the Epro product line. It is designed for continuous, non-contact measurement of shaft radial vibration, axial displacement, and differential expansion in critical rotating machinery. The probe operates as the primary sensing element in a three-component measurement chain — probe, extension cable, and driver/oscillator — and is fully compliant with API 670 (5th Edition) machinery protection requirements. Its 3.0 m integral cable and CON021 bayonet connector make it a direct replacement for existing Epro PR6423 installations without requiring rack recalibration.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PR6423/010-030 CON021 operates on the Lenz’s law induction principle. The probe tip houses a precision-wound coil energized at a fixed carrier frequency by the paired PR6426 driver/oscillator. When a conductive target (shaft surface) enters the electromagnetic field, eddy currents are induced on the target surface, loading the coil and reducing its effective impedance. The driver circuit converts this impedance change into a DC voltage output linearly proportional to the air gap between probe tip and shaft surface.

Several hardware design decisions distinguish this model in demanding industrial environments:

• Ceramic-Wound Coil Assembly: The sensing coil is wound on a ceramic bobbin rather than a polymer former. Ceramic maintains dimensional stability and permeability consistency across the full −40 °C to +120 °C operating range, preventing sensitivity drift in hot-section turbine bearing housings where ambient temperatures routinely exceed 100 °C.
• Integral 3.0 m Cable (030 Suffix): The cable is factory-terminated and impedance-matched to the probe coil at the point of manufacture. Eliminating a field-installed extension cable joint in short-reach installations removes a primary source of signal noise, ground loop injection, and mechanical failure. The cable jacket is rated for continuous flexing and hydrocarbon fluid exposure.
• CON021 Bayonet Connector: The locking bayonet mechanism provides a quarter-turn positive engagement with audible click confirmation. Under continuous vibration loads typical of compressor trains (up to 50 g shock per IEC 60068-2-27), the connector maintains contact resistance below 50 mΩ, preventing spurious signal interruptions that could trigger false machinery trips.
• EMC Shielding Architecture: The coaxial cable construction provides a continuous Faraday shield from probe tip to connector body. The shield is grounded at the driver end only (single-point grounding), eliminating the 50/60 Hz ground loop currents that degrade signal-to-noise ratio in electrically noisy plant environments with multiple grounding potentials.
• Calibration Traceability: Each probe is factory-calibrated against AISI 4140 steel targets on a precision gap-setting fixture traceable to national metrology standards. The calibration data sheet shipped with each unit records actual sensitivity (mV/µm) and linearity deviation across the full measurement range, enabling direct verification against API 670 acceptance criteria without field recalibration.
• Driver Compatibility Matrix: The PR6423/010-030 CON021 is electrically compatible with the Epro PR6426 driver series (CON021 input) and cross-compatible with Bently Nevada 3300 XL driver electronics when the appropriate adapter cable is used. This dual-ecosystem compatibility reduces spare-parts inventory burden for plants operating mixed monitoring platforms.

System Integration Benefits

• 1. Direct API 670 Compliance: The probe meets all transducer performance requirements of API 670 (5th Edition) Section 5, including sensitivity tolerance (±5%), linearity (≤±0.5% of full-scale), and temperature coefficient specifications. EPC contractors and plant operators can specify this model without additional qualification testing.
• 2. Zero-Recalibration Replacement: The PR6423/010-030 CON021 is a form-fit-function replacement for any existing Epro PR6423 probe with a 3.0 m cable and CON021 connector. The monitoring rack (MMS6000 or Bently Nevada 3500) requires no sensitivity rescaling, reducing planned maintenance downtime to the time required for physical probe swap and gap setting.
• 3. Deterministic DC-to-10 kHz Bandwidth: The flat frequency response from DC to 10 kHz captures both quasi-static shaft position (axial thrust, differential expansion) and high-frequency rotor dynamic events (sub-synchronous instability, blade-pass frequencies) within a single measurement channel, eliminating the need for separate position and vibration transducers on the same measurement plane.
• 4. Rack-Level Diagnostic Transparency: When connected to an Epro MMS6110 or MMS6120 monitoring module, the driver output voltage is continuously monitored for out-of-range conditions (probe gap too small, cable open circuit, driver fault). These hardware diagnostics are surfaced as discrete relay outputs and fieldbus status bits, enabling the DCS or safety system to distinguish a genuine machinery alarm from a transducer fault without manual inspection.
• 5. Multi-Plane Scalability: A single MMS6000 rack accepts up to 16 measurement channels. Each PR6423/010-030 CON021 probe occupies one channel slot. For a six-bearing turbine-generator train requiring radial vibration at each bearing (two planes per bearing = 12 channels) plus thrust position (two channels), the entire protection system fits within a single rack enclosure, minimizing panel space and inter-rack wiring.
• 6. Hazardous Area Variant Availability: ATEX- and IECEx-certified variants of the PR6423 series are available for Zone 1 and Zone 2 classified areas (gas groups IIA/IIB, temperature class T4/T5). The same CON021 connector and cable interface are retained, allowing a common spare-parts strategy across safe-area and hazardous-area installations.
• 7. Rotor Orbit Analysis Capability: Two PR6423 probes mounted 90° apart on the same bearing plane provide the X-Y displacement signals required for rotor orbit computation. When processed by the monitoring rack or a machinery analysis system (e.g., Emerson AMS Machinery Manager), the orbit plot reveals bearing instability, rub conditions, and unbalance vectors that scalar vibration amplitude alone cannot distinguish.
• 8. Long-Term Metrology Stability: The ceramic coil former and stainless-steel probe body exhibit negligible dimensional creep over service life. Field experience across petrochemical and power generation installations documents sensitivity drift of less than ±1% over five-year calibration intervals under normal operating conditions, supporting extended calibration cycles and reducing maintenance cost per measurement point.

Quality Assurance & Global Logistics

Every PR6423/010-030 CON021 unit offered through siemensplc.com is sourced from authorized EMERSON/Epro distribution channels or verified OEM-surplus inventory with full traceability documentation. Prior to shipment from our Xiamen, China facility, each probe undergoes the following verification protocol:

• Sensitivity Verification: Output voltage measured at three calibrated gap distances (0.5 mm, 1.0 mm, 1.5 mm) against AISI 4140 steel target; recorded on individual test report.
• Insulation Resistance Test: Cable shield-to-conductor insulation resistance measured at 500 VDC; minimum acceptance criterion 100 MΩ.
• Connector Integrity Check: CON021 bayonet engagement force and contact resistance verified; contact resistance ≤50 mΩ.
• Visual and Dimensional Inspection: Probe tip, cable jacket, and connector body inspected for mechanical damage; probe tip diameter verified within ±0.05 mm of nominal.
• Documentation Package: Each shipment includes the original manufacturer calibration data sheet, Certificate of Conformance (CoC), and packing list. MSDS and FAT report available upon request.

Logistics from Xiamen: in-stock units ship within 2 business days via DHL Express, FedEx International Priority, or UPS Worldwide Expedited. Typical transit times: Southeast Asia 2–3 days; Europe 3–5 days; North America 4–6 days; Middle East 3–5 days. Export documentation (commercial invoice, packing list, HS code 9026.80) prepared to customs requirements of the destination country. Expedited customs clearance support available for urgent plant shutdown requirements.
