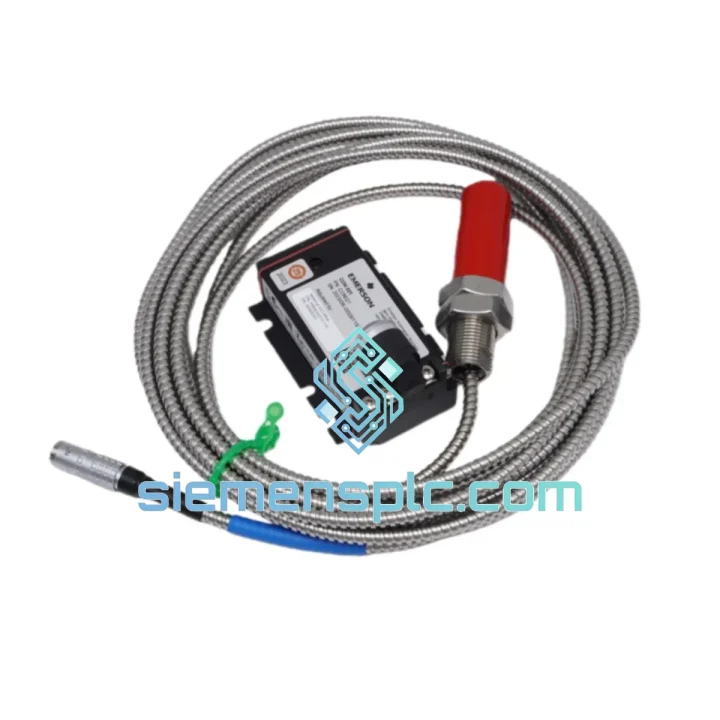

Emerson PR6424/014-140 CON021 Eddy Current Signal Converter – Epro Series

Emerson PR6424/014-140 CON021 – Signal Conditioning Architecture for Precision Proximity Measurement

The PR6424/014-140 CON021 is a dedicated eddy current signal converter within Emerson’s Epro PR6424 series, engineered to interface non-contact proximity probes with process control infrastructure. Its primary function is to receive the raw oscillator output from a PR6424 eddy current probe and condition it into a calibrated 4–20 mA current loop signal suitable for direct termination at DCS analog input cards, PLC modules, or standalone vibration monitors. The 1.4 m integral cable (/014 suffix) and the CON021 current output designation make this unit the standard selection for panel-mount installations where loop-powered signal transmission over moderate cable runs is required.

In rotating machinery protection systems, the converter sits at the boundary between the field sensing layer and the control layer. Its accuracy directly determines the fidelity of shaft displacement data fed into trip logic and condition monitoring algorithms. Any non-linearity or thermal drift at this stage propagates uncorrected into the monitoring system, making the converter’s electrical stability a first-order engineering concern.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The PR6424/014-140 CON021 operates on the principle of eddy current impedance modulation. The probe tip generates a high-frequency electromagnetic field (typically 1–2 MHz oscillator frequency). As a conductive target surface approaches the probe, eddy currents induced in the target absorb energy from the oscillator circuit, reducing its amplitude in a distance-dependent manner. The converter’s internal demodulation stage extracts this amplitude envelope and maps it linearly to the 4–20 mA output span across the 0–14 mm gap range.

EMC Design: The converter housing incorporates a grounded shield layer between the oscillator circuit and the output stage. This prevents high-frequency oscillator noise from coupling into the 4–20 mA loop, which is critical in environments with variable-frequency drives (VFDs) and high-current bus bars generating broadband electromagnetic interference. The differential current loop output is inherently immune to common-mode voltage noise on the cable run, allowing reliable signal transmission over distances up to several hundred meters without additional isolation.

Thermal Stability Architecture: The internal gain-setting resistors are selected from a low-temperature-coefficient network (≤ 50 ppm/°C), ensuring that the 4–20 mA span remains within ±1% of full scale across the full −20°C to +70°C operating range. This is particularly relevant in outdoor installations or machinery rooms where ambient temperature swings of 40–50°C are common across seasonal cycles.

Loop Power Topology: The CON021 variant is a two-wire, loop-powered device. It draws its operating power from the same 4–20 mA loop, eliminating the need for a separate auxiliary supply at the field junction box. This simplifies wiring infrastructure and reduces the number of terminals required at the marshalling cabinet, which has a measurable impact on installation cost in large-scale machinery protection projects with dozens of measurement points.

Output Clamp Protection: The output stage includes hard clamp circuitry that limits the output to 3.8 mA at minimum gap (open circuit / probe retracted) and 20.5 mA at maximum gap, preventing false trip signals at the DCS input card during probe maintenance or cable disconnection events.

System Integration Benefits

• Direct DCS Termination: The 4–20 mA output maps directly to standard analog input channels on Emerson DeltaV, Honeywell Experion, ABB 800xA, and Yokogawa CENTUM VP without signal conditioning adapters, reducing BOM complexity.
• Deterministic Loop Response: The converter’s analog output updates continuously with no digital sampling latency, preserving the full bandwidth of the proximity measurement for real-time vibration analysis up to the probe’s mechanical frequency limit.
• Diagnostic Transparency: Out-of-range current values (below 3.8 mA or above 20.5 mA) are detectable by NAMUR NE43-compliant DCS input cards, enabling automatic fault annunciation without additional discrete wiring.
• Intrinsic Safety Compatibility: The loop-powered architecture is compatible with Zener barrier and galvanic isolator installations for Zone 1 / Zone 2 hazardous area applications, provided the ATEX-rated variant is specified at order.
• Reduced Marshalling Footprint: Two-wire loop power eliminates auxiliary supply terminals at the field junction box, reducing per-point wiring cost and cabinet space by approximately 30% compared to three-wire transmitter configurations.
• Cross-Platform PLC Compatibility: The 4–20 mA output is accepted by analog input modules from Siemens S7-1500, Allen-Bradley ControlLogix, Schneider Modicon M580, and Mitsubishi MELSEC iQ-R series without range adjustment.
• Calibration Traceability: Factory calibration is performed against NIST-traceable gap standards. The calibration certificate documents the as-shipped linearity error at five gap points across the 0–14 mm range, providing a baseline for periodic verification.
• Long-term Spare Parts Alignment: The PR6424 series has maintained dimensional and electrical backward compatibility across multiple production generations, allowing replacement of older converter units without re-termination or re-calibration of the associated probe and extension cable.

Quality Assurance & Global Logistics

Every PR6424/014-140 CON021 unit supplied by siemensplc.com is sourced through verified industrial supply channels with full batch traceability. Prior to dispatch, each unit undergoes a functional verification check: supply voltage application, output current measurement at two reference gap points, and visual inspection of the cable jacket, connector body, and label integrity. Units that do not meet the factory specification are quarantined and not shipped.

Documentation supplied with each unit includes a commercial invoice, packing list, certificate of origin, and — upon request — a certificate of conformance referencing the applicable Emerson quality standard. For projects requiring ATEX documentation, the relevant EU Declaration of Conformity and notified body certificate numbers are provided.

Shipments originate from Xiamen, China, a designated international logistics hub with direct access to Xiamen Gaoqi International Airport and Xiamen Port. Standard export channels include DHL Express, FedEx International Priority, and UPS Worldwide Expedited, with typical transit times of 3–5 business days to Europe and North America. For freight-sensitive projects, sea freight consolidation via Xiamen Port is available with full export customs clearance handled by our licensed freight forwarder. All shipments include a tracking number issued within 24 hours of dispatch. Multi-currency invoicing (USD, EUR, CNY, HKD) is supported, and payment terms include T/T bank transfer, PayPal, and letter of credit for qualified accounts.
