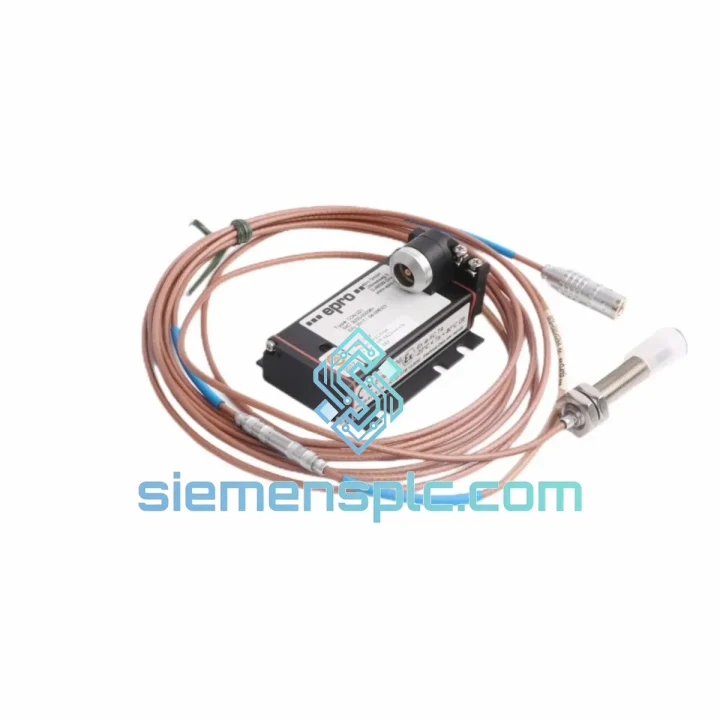

EPRO PR6423/003-030 CON021 Proximity Probe

EPRO PR6423/003-030 CON021 — Stop the Clock on Your Downtime. Ship Today.

Every hour a turbine, compressor, or critical pump sits idle costs real money — in lost throughput, penalty clauses, and emergency labor. The PR6423/003-030 CON021 eddy current proximity probe assembly is one of the most failure-critical sensors in any API 670 machinery protection loop. When it fails, the monitor trips, the machine shuts down, and the clock starts running. We stock this exact part number in Xiamen and can have it moving toward your site within hours of order confirmation.

This is not a substitute. Not a “compatible” alternative. This is the genuine EPRO PR6423/003-030 CON021 — 8 mm probe tip, 3 m probe cable, 30 m extension, CON021 integrated conditioner — the same assembly your Bently Nevada 3500 rack or EPRO monitor was commissioned with.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on rotating machinery, here are the failure modes I see most often with the PR6423 series — and what to check before you condemn the sensor:

1. Gap Voltage Out of Range (Most Common)
The CON021 conditioner outputs a DC bias of approximately –10.5 VDC at the nominal 1.0 mm gap on a 4140 steel target. If your monitor is showing a “Not OK” or gap alarm, measure the raw DC output at the conditioner BNC before assuming sensor failure. A reading outside –2 VDC to –18 VDC indicates a real probe or cable fault. A reading within range but drifting points to a loose connector or intermittent cable break — check the extension cable junction first, as this is the highest-stress mechanical point in the assembly.

2. Extension Cable Connector Corrosion
The probe-to-extension junction is the number one physical failure point. In humid or wash-down environments, moisture ingress at the bayonet connector causes resistance drift and erratic output. Before replacing the full assembly, disconnect, inspect, and dry the connector. Apply dielectric grease on reassembly. If the output stabilizes, you bought yourself time — but plan the full replacement at the next maintenance window.

3. Target Material Mismatch After Shaft Repair
If the shaft was repaired or sleeved with a non-standard alloy (stainless, Inconel, chrome plating), the sensitivity curve shifts. The CON021 is calibrated for AISI 4140. A stainless target can reduce sensitivity by 20–40%. Recalibrate gap voltage at the monitor card or apply the manufacturer’s correction factor. Do not adjust alarm setpoints without recalibrating the full loop.

4. Replacement Procedure — Step by Step

• Isolate the monitor channel and confirm the machine is at rest or in a safe state before probe removal.
• Record the existing gap voltage (DC bias) before disconnecting — this is your baseline for the new probe setup.
• Remove the probe from the holder using the correct spanner. Do not grip the cable. Note the thread engagement depth.
• Install the new PR6423/003-030 at the same thread depth. Finger-tight plus 1/4 turn with the spanner — do not overtorque.
• Connect the 30 m extension cable. Verify the bayonet locks fully — a half-engaged connector is the most common commissioning error.
• Power up the CON021 and measure gap voltage. Adjust probe depth until the output matches the original baseline (typically –10.5 VDC ± 0.5 V at 1.0 mm gap).
• Lock the probe with the jam nut. Verify output does not shift during tightening — if it does, the probe holder thread is worn.
• Restore the monitor channel and confirm OK status before releasing the machine to operations.

5. Firmware / Monitor Card Compatibility
The CON021 output is directly compatible with Bently Nevada 3500/40M, 3500/42M, and EPRO MMS6000 series monitor cards. No firmware changes are required for a like-for-like replacement. If you are upgrading from an older PR6423/002 (5 m probe) to the /003 (3 m probe + 30 m extension), verify that the total cable length (probe + extension) matches the conditioner’s calibrated range — the CON021 is calibrated for a specific total cable capacitance.

Reliability in Harsh Conditions

The PR6423 series was not designed for a clean lab. It was designed for the bearing pedestals of 50 MW steam turbines, the compressor trains of offshore platforms, and the gearbox housings of cement mill drives. The environments where this sensor lives are hostile by definition.

The probe body carries an IP67 rating — fully sealed against dust ingress and capable of withstanding temporary immersion. In practice, this means it survives the high-pressure wash-downs common in food processing and pharmaceutical plants, and the condensation cycles in outdoor installations from Siberia to the Persian Gulf.

The operating temperature range of –50°C to +120°C at the probe tip covers virtually every industrial application short of direct flame exposure. The shielded coaxial cable construction provides robust rejection of electromagnetic interference from variable frequency drives, large motor starters, and high-voltage switchgear — the exact noise sources that plague proximity probe installations in steel mills and petrochemical complexes.

Vibration resistance is inherent to the non-contact measurement principle. Unlike accelerometers or velocity transducers, the eddy current probe has no moving parts, no piezoelectric element to fatigue, and no mechanical resonance to worry about. The probe tip can be within millimeters of a shaft spinning at 10,000 RPM and the only thing that changes is the output voltage. That is why the PR6423 series has accumulated more than two decades of installed base in the most demanding rotating equipment applications worldwide.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian — one of China’s primary export hubs with direct access to international freight lanes via Xiamen Gaoqi International Airport and Xiamen Port. This geography is not accidental. It means your urgent order moves fast.

Standard Express Process:

• Order Confirmation → Same-Day Dispatch: Orders confirmed before 15:00 CST are packed and handed to the carrier the same business day.
• DHL Express Worldwide: Xiamen to most European, Middle Eastern, and Southeast Asian destinations in 2–4 business days. North America typically 3–5 business days.
• FedEx International Priority: Available as an alternative for destinations where FedEx has stronger coverage or preferred customs clearance relationships.
• Commercial Invoice & Packing List: Prepared to your specifications — correct HS code (8543.70 for electronic instruments), accurate declared value, and shipper/consignee details formatted for your customs broker.
• Tracking: AWB number provided within 2 hours of carrier pickup. Direct tracking link sent to your email.
• Export Documentation: Certificate of Origin, packing declaration, and any additional documents required for your country’s import clearance are prepared on request.

For offshore platform deliveries, remote site logistics, or destinations with complex import requirements (India IGST, Brazil ICMS, Russia customs), contact us before placing the order. We have routed shipments to refineries in Kazakhstan, power plants in Bangladesh, and compressor stations in Nigeria — the paperwork is not a problem.
