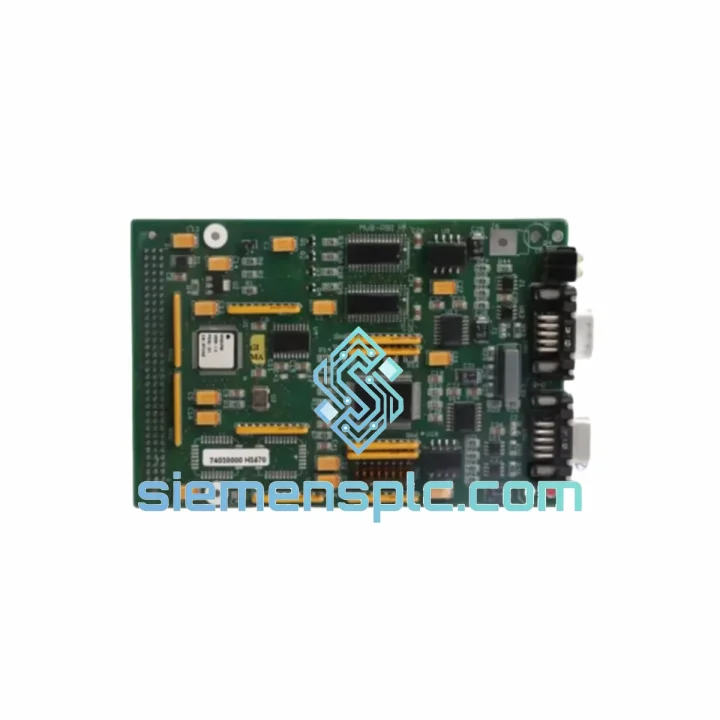

FAIVELEY 74030000 H3470 Control Board

74030000 H3470 Control Board: Stop the Clock on Downtime — Ship Today from Xiamen

Your line is down. The FAIVELEY H3470 control board has failed. Every hour you wait costs real money — production losses, penalty clauses, idle crews. You don’t need a sales pitch. You need a board on a plane today. We stock the FAIVELEY 74030000 H3470 in Xiamen and can have it moving within hours of order confirmation. No lead-time games, no broker delays.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on FAIVELEY-equipped rail and industrial systems, here’s what actually matters when you’re swapping a 74030000 H3470 under pressure:

1. Confirm the fault before you pull the board. The H3470 series is commonly blamed for faults that originate upstream — check your 24 VDC supply rail first. A sagging supply (below 21.6 V) will cause the board to throw spurious fault codes and lock outputs. Measure at the board connector, not at the PSU terminals. Voltage drop across a corroded connector is a classic trap.

2. Common fault signatures on the 74030000 H3470:

• Fault Code F01 / F02 (Communication Loss): Usually a failed RS-485 transceiver IC on the board. The board stops responding to the master controller. Swap the board; do not attempt IC-level repair in the field.
• Fault Code F07 (Output Driver Fault): One or more solid-state output drivers have failed — typically caused by a shorted load or inductive spike from a solenoid valve without a flyback diode. Before fitting the replacement, verify the load circuit is clean.
• Fault Code F12 (Watchdog Reset Loop): The onboard microcontroller is resetting continuously. This can be firmware corruption or a failed crystal oscillator. A replacement board with factory firmware is the only reliable fix.
• No LED activity, no response: Check the board’s onboard fuse (typically a 1A SMD fuse near the power input connector). A shorted output can blow this fuse silently. Replace the fuse before condemning the board — but if the fuse blows again immediately, the fault is in the field wiring.

3. Replacement procedure — critical steps:

• Power down the cabinet and lock out / tag out before removal. The H3470 does not support hot-swap.
• Photograph the existing wiring and connector positions before disconnecting anything. The H3470 has multiple identical-looking connectors with different pinouts.
• Check the DIP switch configuration on the failed board before removal. The H3470 uses onboard DIP switches for node address assignment in multi-board systems. Your replacement must be set to the same address. Default from factory is typically all switches OFF (address 0) — this is almost certainly wrong for your installation.
• If your system uses firmware-matched boards (common in rail applications with certified software versions), confirm the firmware revision on the replacement board matches your system’s requirements. Contact us with your system software version and we will verify compatibility before shipment.
• After fitting the replacement, perform a full I/O check before returning the system to service. Do not assume the board is good just because the fault LED clears — verify each output is driving its load correctly.

4. Post-replacement commissioning: Some H3470 installations require a parameter download from the master controller after board replacement. If your system uses a configuration tool (e.g., FAIVELEY’s proprietary commissioning software), connect and push the stored configuration to the new board before closing the cabinet. Skipping this step is the number one cause of callbacks after a board swap.

Reliability in Harsh Conditions

The FAIVELEY H3470 series was designed for environments that would destroy consumer-grade electronics. Rail applications expose control boards to continuous vibration profiles up to 5 g RMS across a 5–150 Hz spectrum — the H3470 PCB uses conformal coating and through-hole mounting for critical components specifically to survive this. Industrial cabinet installations in steel mills and chemical plants routinely see ambient temperatures of 55°C with humidity above 85% RH. The H3470’s operating range covers −25°C to +70°C, with the conformal coating providing additional protection against condensation during cold-start cycles.

Every unit we ship from Xiamen is stored in climate-controlled conditions and packed in anti-static, moisture-barrier packaging with desiccant. We do not ship boards loose in bubble wrap. If the board arrives damaged, we replace it — no argument.

Global Express Logistics

Our Xiamen warehouse is 40 minutes from Xiamen Gaoqi International Airport (XMN), a major DHL and FedEx hub for South China exports. This matters when you’re counting hours, not days.

• Order cut-off: Orders confirmed with payment by 14:00 CST ship same business day.
• DHL Express Worldwide: Europe 2–3 business days, Southeast Asia 1–2 business days, Americas 3–4 business days.
• FedEx International Priority: Available for destinations where FedEx has a service advantage. We select the faster carrier for your destination automatically.
• Export documentation: Commercial invoice, packing list, and certificate of origin prepared same day. HS code 8537.10 (control boards for industrial use) — we handle customs classification correctly so your shipment clears without delays.
• Tracking: AWB number sent to your email within 2 hours of dispatch. We monitor shipments and proactively contact you if any customs hold occurs.
• Emergency freight: For critical shutdowns, we can arrange charter courier or hand-carry service to your site. Contact us directly to discuss.
