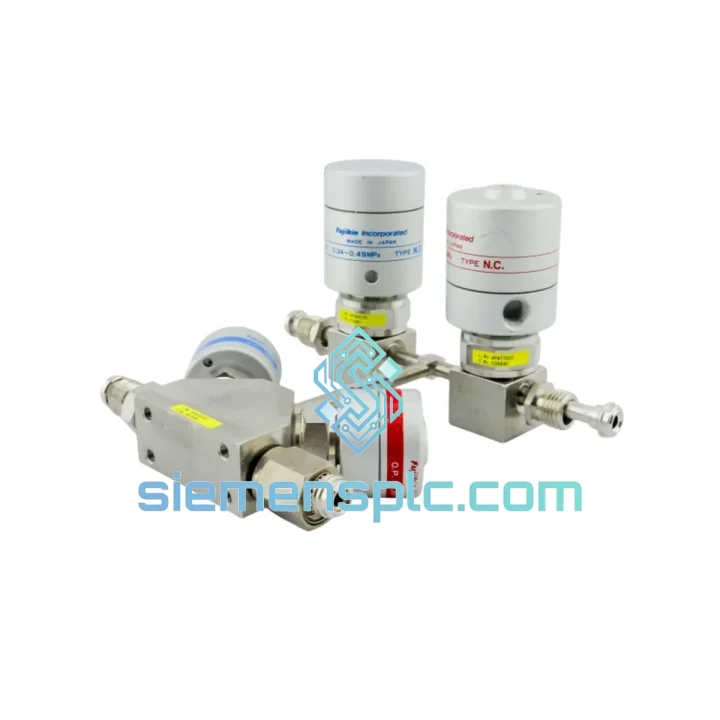

FUJIKIN CENTURA 401948 UHP Diaphragm Valve

FUJIKIN CENTURA 401948 | 0041-81313 | 0041-94358 — Stop the Bleed: Get Your Gas Panel Back Online Today

Every hour your CENTURA platform sits idle, you’re burning wafer starts, missing WIP targets, and fielding calls from production management. The FUJIKIN CENTURA 401948 diaphragm valve is a single-point failure that shuts down the entire gas delivery train — and it’s one of the most time-critical MRO items in any UHP fab. We stock it. We ship it today. From Xiamen to your dock in 48–72 hours via DHL Express or FedEx Priority.

This is not a grey-market substitute. This is the original FUJIKIN UHP diaphragm valve assembly, cross-referenced under AMAT part numbers 0041-81313 and 0041-94358, verified against CENTURA gas box BOMs. Drop it in, torque the VCR fittings, reconnect the pneumatic pilot line, and you’re back in process.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common failure signatures for CENTURA 401948:

• Valve fails to open / close on command: First suspect the pneumatic pilot solenoid (24 VDC), not the valve body itself. Confirm pilot pressure ≥ 60 psig at the actuator port before condemning the diaphragm assembly. A dead solenoid is a 15-minute fix; a misdiagnosed valve swap costs you 4 hours of downtime.
• Process gas leak at VCR fitting: In 80% of cases this is a fatigued VCR gasket, not a cracked valve body. Replace the 1/4″ SS gasket first. If leak persists after re-torque to spec (100–120 in-lb), then the valve seat or diaphragm has failed — replace the 401948 assembly.
• Intermittent process drift / unstable MFC reading upstream: A partially failed diaphragm can pass micro-leaks that don’t trigger hard alarms but corrupt process chemistry. Pull the valve, perform a bench He leak test at 100 psig. Any reading above 1×10⁻⁹ cc/sec is a condemn.
• Valve body discoloration / corrosion pitting: Indicates exposure to incompatible gas chemistry or a failed upstream purge sequence. Before installing the replacement 401948, audit the gas line purge procedure and verify N₂ purge pressure and duration meet FUJIKIN’s installation guidelines.

Replacement procedure checklist (field-verified):

• Isolate the gas line upstream and downstream. Verify zero pressure with a calibrated gauge — never rely on software interlocks alone.
• Purge the line with dry N₂ (≥ 99.999%) for a minimum of 3 cycles before breaking any fitting.
• Wear appropriate PPE for the process gas in the line (HBr, Cl₂, NF₃ require supplied-air respirator).
• Remove the pneumatic pilot line from the actuator before unbolting the valve body — prevents accidental actuation during removal.
• Inspect the VCR port faces on the manifold block for scratches or corrosion. A damaged port face will cause the new valve to leak regardless of gasket condition.
• Install new VCR gaskets (SS, 1/4″) — never reuse gaskets on a UHP line.
• Torque VCR nuts to 100–120 in-lb using a calibrated torque wrench. Mark the nut position with a paint pen for visual verification.
• Reconnect the pneumatic pilot line. Verify actuator responds correctly to solenoid command before closing the gas isolation valves.
• Perform a system He leak check at operating pressure before returning the tool to process.
• Log the replacement in your CMMS with the new valve’s date code and serial number for traceability.

Reliability in Harsh Conditions

Semiconductor fabs are not gentle environments. The CENTURA gas box runs 24/7, 365 days a year, cycling the 401948 valve thousands of times per week under corrosive gas exposure, thermal cycling from ambient to 150°C, and vibration from adjacent vacuum pumps and process chambers. FUJIKIN engineered this valve for exactly that punishment.

The all-metal diaphragm eliminates the single biggest failure mode of elastomer-seated valves: outgassing and diaphragm creep under thermal load. At sub-10nm process nodes, even parts-per-trillion contamination from a degrading elastomer can shift etch selectivity and kill wafer yield. The 316L electropolished body — Ra ≤ 0.25 µm — provides a surface that resists particle adhesion and moisture adsorption, keeping your gas chemistry clean from the valve seat to the chamber inlet.

Vibration resistance is built into the actuator design. The pneumatic actuator housing is mechanically isolated from the valve body to prevent vibration-induced diaphragm fatigue — a common failure mode in valves mounted near roughing pump exhaust lines. Cycle life testing by FUJIKIN exceeds millions of actuations under rated conditions, which translates to years of service in a high-throughput production environment before a planned maintenance swap is warranted.

Thermal shock resistance is equally critical. During chamber vent-and-pump cycles, the gas panel sees rapid temperature swings. The 401948’s body geometry and diaphragm clamping design accommodate differential thermal expansion without compromising the leak-tight seal — a design detail that separates FUJIKIN UHP valves from lower-cost alternatives that fail within months in the same application.

Global Express Logistics

Our warehouse is located in Xiamen, China — a major international cargo hub with direct DHL Express and FedEx Priority connections to semiconductor manufacturing clusters in Taiwan, South Korea, Japan, Singapore, the United States, and Europe.

Standard express routing from Xiamen:

• Taiwan (Hsinchu / Tainan): DHL Express — 24–36 hours door-to-door
• South Korea (Hwaseong / Icheon): FedEx Priority — 36–48 hours
• Japan (Yokohama / Kumamoto): DHL Express — 36–48 hours
• Singapore: FedEx Priority — 48 hours
• USA (Portland / Austin / Phoenix): DHL Express — 48–72 hours
• Germany / Netherlands: FedEx Priority — 48–72 hours

All shipments include real-time tracking from pickup to delivery. Export documentation — commercial invoice, packing list, and HS code declaration — is prepared same-day for orders confirmed before 14:00 CST. For orders requiring a Certificate of Conformance or FUJIKIN factory test report, documentation is included in the shipment package at no additional charge.

Customs clearance support is available for shipments to South Korea, Taiwan, and the EU. We work with established customs brokers in each region to prevent clearance delays that would defeat the purpose of express shipping. If your procurement team requires a formal export license or end-user declaration, contact us before placing the order so we can prepare the paperwork in parallel with shipment preparation.

For genuine emergencies — tool down, wafer starts at risk — call or WhatsApp us directly. We will confirm stock, generate a proforma invoice, and hand the shipment to DHL within 2 hours of payment confirmation.
