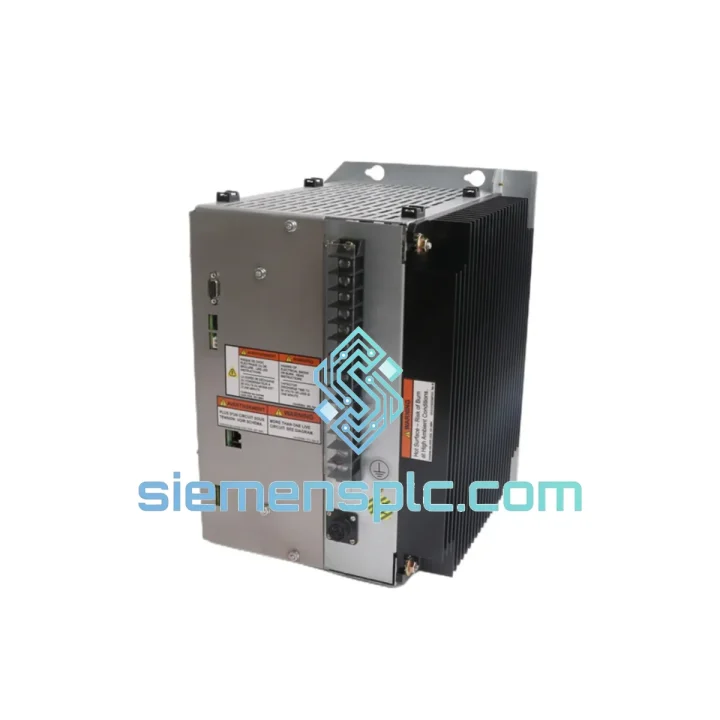

GE 151X1235DB15SA01 Excitation Control Module

GE 151X1235DB15SA01 EX2100e PCM — Every Hour of Downtime Costs You. We Ship Today.

Your generator is offline. The excitation system has tripped. The control room is waiting. You’ve traced the fault to the GE 151X1235DB15SA01 Process Control Module — the brain of the EX2100e digital excitation system — and you need a verified replacement on-site before the next shift. That’s exactly why we stock this module in Xiamen, tested and ready to go.

We’ve handled enough emergency callouts to know that a bad PCM doesn’t announce itself politely. It shows up as a COMM FAULT on the HMI, a watchdog timeout alarm, or a complete loss of AVR response during a load swing. By the time you’re reading this page, you’ve already burned hours on diagnostics. Don’t burn more on sourcing.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

Common fault signatures pointing to a failed 151X1235DB15SA01:

• Alarm: PCM COMM FAULT or WATCHDOG TIMEOUT — The PCM has lost its internal heartbeat or dropped off the EGD network. First, reseat the module and check the backplane connector pins for corrosion or bent contacts. If the alarm persists after a cold restart, the PCM itself is the suspect.
• AVR loop oscillation or hunting — If the generator voltage is swinging ±2–5% with no load change, and PID tuning hasn’t changed, a degraded PCM processor can cause erratic AVR output. Don’t retune — replace.
• Loss of PSS function — Power System Stabilizer dropout with no configuration change usually indicates a firmware corruption event on the PCM. Check ToolboxST event log for unexpected resets.
• Dual-redundant transfer failure — If the standby PCM refuses to accept bumpless transfer during a switchover test, verify firmware versions match between active and standby modules. Mismatched firmware is the #1 cause of failed redundancy switchovers.

Replacement procedure — field checklist:

• 1. Record all active alarms and current AVR setpoints from the HMI before de-energizing.
• 2. Export the application configuration from ToolboxST (File → Export) — do this even if you think the config is backed up. Confirm the export file opens cleanly.
• 3. De-energize the EX2100e cabinet per site LOTO procedure. Verify 24 VDC supply is isolated before touching the card cage.
• 4. Note the physical slot position of the PCM — the EX2100e card cage is position-sensitive. The replacement must go into the identical slot.
• 5. Check the new module’s firmware revision label against the existing system firmware. If there’s a mismatch, update firmware via ToolboxST before inserting into the live system.
• 6. After insertion, restore power and allow the PCM to complete its self-test sequence (typically 90–120 seconds). Do not attempt to force AVR mode during this window.
• 7. Download the saved application configuration to the new PCM via ToolboxST. Verify all I/O assignments and AVR parameters match pre-fault values.
• 8. Perform a manual/auto transfer test before returning the unit to AVR mode under load.
• 9. Monitor terminal voltage and reactive power for 15 minutes post-restoration. Log any residual alarms.

Note on EX2100 vs EX2100e compatibility: The 151X1235DB15SA01 is designed for the EX2100e platform. It is not a direct plug-in replacement for the original EX2100 (non-e) backplane. If you’re unsure which platform you have, check the cabinet nameplate — EX2100e cabinets will have the “e” suffix on the system label. Contact us before ordering if there’s any doubt.

Reliability in Harsh Conditions

Power plant environments are not kind to electronics. The 151X1235DB15SA01 is built to operate where most commercial-grade hardware fails within months.

The PCB assembly uses conformal coating on all exposed traces, providing resistance to condensation, salt fog, and airborne particulates common in coastal and industrial plant environments. The module has been validated to withstand continuous vibration up to 2g at 10–500 Hz — relevant for installations mounted near large rotating machinery where structural vibration is transmitted through the cabinet frame.

Thermal management is handled through a combination of forced-air cooling via the EX2100e cabinet fans and the module’s own heat-spreading design. The PCM maintains full specification across a 0–60 °C ambient range, with derating curves available for installations where cabinet cooling is marginal. In practice, we’ve seen these modules run continuously for 8–12 years in combined-cycle plants in Southeast Asia and the Middle East without intervention — environments where summer ambient temperatures inside the E-house regularly exceed 45 °C.

The dual-redundant architecture means that even if one PCM develops a fault, the standby module takes over in under 100 milliseconds — fast enough that the generator stays online and the grid operator never sees a disturbance. That’s not a marketing claim; it’s the design specification that GE built into the EX2100e platform for utility-grade reliability.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-efficient export hubs in Asia, with direct access to DHL, FedEx, and UPS international gateways.

Standard emergency dispatch process:

• Order confirmed before 14:00 CST → same-day dispatch via DHL Express or FedEx International Priority
• Transit times: Southeast Asia 1–2 days | Europe 3–4 days | North America 3–5 days | Middle East 2–3 days | Australia 2–3 days
• All shipments include full commercial invoice, packing list, and Certificate of Origin for customs clearance
• HS Code pre-declared for smooth customs processing — no delays at the border
• Real-time tracking number provided within 2 hours of dispatch
• ESD-safe anti-static packaging with foam-lined export carton — the module arrives in the same condition it left our shelf
• Incoterms supported: DDP, DAP, EXW — we can deliver duty-paid to your plant gate if needed

For sites with active plant shutdowns, contact us directly on WhatsApp for a real-time logistics quote. We’ve coordinated same-day courier handoffs for critical outages before — it’s not unusual for us to have a module on a flight within 4 hours of an inquiry.
