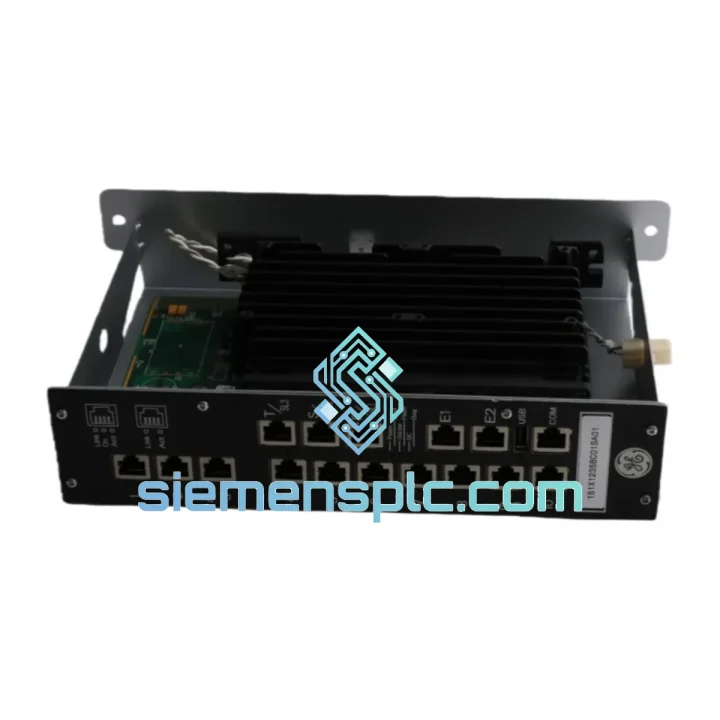

GE 151X1249BR01SA01 PLC Control Module – Series 90-70

GE 151X1249BR01SA01 — VME-Based Control Interface Module for Series 90-70 Distributed I/O Architecture

The GE Fanuc 151X1249BR01SA01 is a rack-mount control interface module engineered for the Series 90-70 VME-based PLC platform. Within a distributed control loop, this module occupies a single backplane slot and serves as the primary signal conditioning and I/O arbitration layer between field instrumentation and the IC697-series CPU. Its internal architecture handles analog and discrete signal normalization, backplane bus handshaking, and interrupt-driven data transfer — functions that directly determine scan-cycle determinism and fault isolation speed in process-critical installations.

Unlike generic interface cards, the 151X1249BR01SA01 is designed to the Series 90-70 VME electrical specification, meaning its bus driver circuitry, address decoding logic, and power rail filtering are matched to the backplane’s 5 V and ±12 V distribution topology. This hardware-level alignment eliminates the impedance mismatches and timing skew that arise when non-OEM modules are inserted into legacy racks.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

VME Backplane Bus Arbitration: The Series 90-70 VMEbus operates as a shared 32-bit parallel bus with a theoretical peak throughput of 40 MB/s under D32 block transfer mode. The 151X1249BR01SA01 implements a local bus arbiter that negotiates DTACK (Data Transfer Acknowledge) cycles with the CPU module, ensuring that I/O read/write operations complete within a bounded number of bus clock cycles. This deterministic handshake prevents bus contention from propagating latency into the CPU scan cycle — a critical requirement in closed-loop control applications where scan jitter above 2 ms can trigger process alarms.

Optical Isolation Architecture: Field-side signal inputs pass through optocoupler stages rated at ≥ 1,500 V AC isolation voltage. The isolation barrier separates the field ground reference from the logic ground plane, preventing ground loop currents — common in large industrial facilities with multiple earthing points — from corrupting digital signal levels. The optocoupler response time is matched to the module’s internal sampling clock, avoiding aliasing artifacts in high-frequency discrete input channels.

EMC and Transient Suppression: The module’s PCB layout follows a segmented ground plane strategy: the analog signal layer, digital logic layer, and backplane interface layer each maintain separate copper pours joined only at a single star-ground point. Transient voltage suppression (TVS) diodes are placed at each field terminal entry point, clamping EFT (Electrical Fast Transient) bursts per IEC 61000-4-4 to levels below the logic threshold of the input comparators. Ferrite bead filters on the backplane power rails attenuate high-frequency switching noise injected by adjacent modules’ DC-DC converters.

Thermal Management: The module’s power dissipation profile is designed for convection cooling within the Series 90-70 rack’s natural airflow path. Component placement concentrates heat-generating ICs near the top edge of the PCB, aligning with the rack’s upward convection gradient. No forced-air cooling is required at rated ambient temperatures up to 60 °C, reducing the failure modes associated with fan assemblies in dusty industrial environments.

Watchdog and Self-Diagnostics: An onboard hardware watchdog timer monitors the module’s internal microcontroller. If the control loop fails to reset the watchdog within the configured timeout window (typically 100–500 ms), the module asserts a fault signal on the backplane, triggering a CPU-level diagnostic interrupt. This fail-safe mechanism ensures that a module lockup does not silently corrupt process data — the CPU is notified and can execute a controlled shutdown or switchover sequence.

System Integration Benefits

• Deterministic Scan-Cycle Contribution: The module’s bounded DTACK response time ensures its I/O update latency adds a fixed, predictable increment to the CPU scan cycle — typically under 0.5 ms per module — enabling accurate worst-case response time calculations for safety and process control loops.
• Diagnostic Transparency via Backplane Fault Reporting: Hardware fault flags are mapped to the CPU’s I/O fault table, making module-level errors visible in the PLC programmer’s diagnostic buffer without requiring physical inspection of the rack.
• Zero-Configuration Slot Insertion: The module’s address decoding logic reads its physical slot position from the backplane address lines at power-up, eliminating DIP switch or jumper configuration. Replacement in the field requires no re-addressing procedure.
• Backward Compatibility with IC697 CPU Revisions: The module’s firmware revision history maintains register-level compatibility with all IC697 CPU firmware versions from Rev. 6.0 onward, protecting investments in existing application programs.
• Reduced Wiring Complexity: The module’s terminal block accepts both 0.5 mm² and 1.5 mm² conductors under the same clamp design, accommodating both signal-level and power-level field wiring without adapter ferrules.
• Hot-Swap Awareness: While the Series 90-70 platform does not support live insertion by default, the module’s power sequencing circuitry limits inrush current during insertion to below the backplane’s overcurrent protection threshold, reducing the risk of nuisance PSU trips during maintenance windows.
• Noise-Immune Signal Conditioning: Differential input receivers on analog channels achieve a common-mode rejection ratio (CMRR) of ≥ 80 dB at 50/60 Hz, suppressing power-frequency interference induced by parallel cable runs in motor control centers.
• Extended MTBF for Long-Lifecycle Installations: Component selection follows MIL-HDBK-217F derating guidelines, with electrolytic capacitors rated at 105 °C and derated to 60 % of rated voltage at operating conditions — a design practice that statistically extends capacitor service life beyond 100,000 hours at rated ambient temperature.

Quality Assurance & Global Logistics

Every GE 151X1249BR01SA01 unit offered through siemensplc.com is sourced from verified OEM channels, authorized distributors, and decommissioned installations with documented service histories. Prior to dispatch, each module undergoes a structured inspection protocol: visual examination of PCB surfaces and connector pins for oxidation or mechanical damage, part number and date code verification against GE Fanuc OEM markings, and a functional power-on check confirming backplane communication handshake integrity.

Units are shipped from our warehouse in Xiamen, China — a major logistics hub with direct access to DHL Express, FedEx International Priority, and UPS Worldwide Expedited services. Standard transit times to major industrial centers are 3–5 business days to Europe, 4–6 business days to North America, and 2–4 business days to Southeast Asia. Export documentation — commercial invoice, packing list, and certificate of conformance — is prepared to customs clearance standards for HS Code 8537.10 (programmable controllers and associated modules).

All shipments are packed in anti-static ESD bags, cushioned with closed-cell foam inserts, and enclosed in double-wall corrugated cartons rated for international air freight handling. A 12-month warranty covers manufacturing defects and verified functional failures under normal operating conditions. Warranty claims are processed within 5 business days of receipt of the returned unit.
