GE 531X135PRGAYM2 Programmer Board – 531X Series

GE 531X135PRGAYM2: Parameter Programming Interface for 531X Series Drive Control Architecture

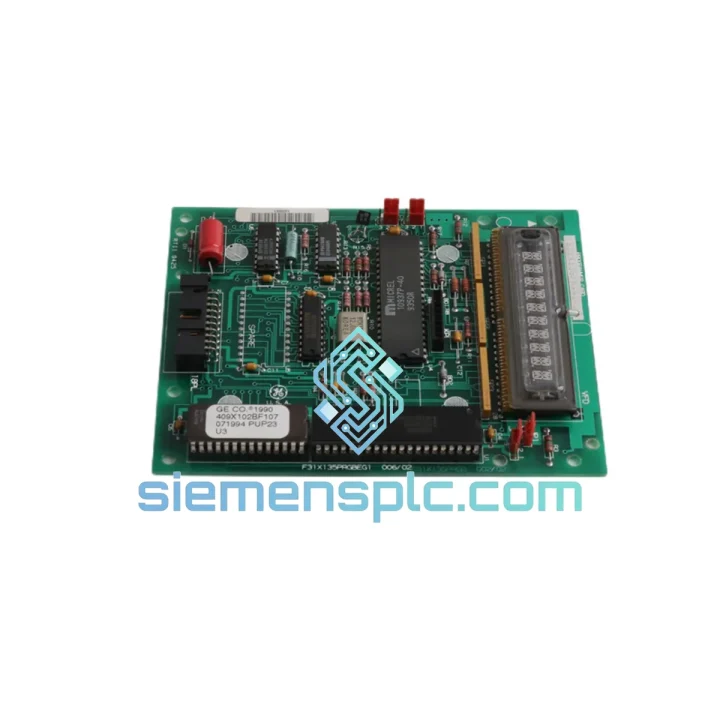

The GE 531X135PRGAYM2 is a dedicated programmer board engineered for the General Electric 531X Series drive control platform. Within a closed-loop drive system, this module occupies the human-machine interface layer between the operator and the drive’s internal parameter memory. It provides a structured, hardware-defined pathway for reading and writing drive configuration registers, retrieving fault history buffers, and executing firmware management sequences — functions that cannot be reliably performed through generic serial adapters or software-only tools without risking register corruption or firmware mismatch.

The YM2 hardware revision of the 531X135PRGAYM2 incorporates updated connector keying and revised board-level ESD suppression compared to the YM1 predecessor, making it the preferred variant for systems operating in environments with elevated electrostatic discharge risk, such as textile mills, paper processing lines, and high-speed packaging machinery.

📧 Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 531X135PRGAYM2 interfaces with the 531X Series drive control board through a dedicated backplane edge connector that carries both power and a synchronous serial data bus. The board’s onboard microcontroller arbitrates access to the drive’s non-volatile parameter memory (EEPROM or equivalent), enforcing a write-protect handshake sequence before any parameter modification is committed. This prevents partial writes during power interruptions — a failure mode that can corrupt drive configuration and cause uncontrolled motor behavior on restart.

EMC Design: The YM2 revision adds a multi-layer ground plane beneath the signal routing layer, reducing common-mode noise coupling from the drive’s PWM switching transients (typically 4–16 kHz carrier frequency) into the programmer’s serial data lines. Ferrite bead filters are placed at the board’s power entry point to attenuate high-frequency conducted interference from the backplane supply rail. This is particularly relevant in installations where the drive operates at high carrier frequencies for acoustic noise reduction, as the resulting dV/dt stress on the backplane is proportionally higher.

Fault Buffer Access: The programmer board provides direct read access to the drive’s fault history register stack, which stores the last 8–16 fault events with associated timestamp data (where supported by the drive firmware). This capability is essential during root-cause analysis of intermittent trip events, as it allows engineers to correlate fault codes with process conditions without requiring a laptop or external communication adapter.

Firmware Management: The board supports firmware version verification and, on compatible drive revisions, firmware upload sequences. The upload process uses a block-transfer protocol with CRC verification at each block boundary, ensuring data integrity across the full firmware image before the drive commits the new code to execution memory. An incomplete or corrupted upload is detected and rejected, leaving the drive in its previous operational state.

Mechanical Keying: The YM2 connector keying physically prevents installation into drive slots designed for earlier or incompatible board revisions, eliminating the risk of incorrect board insertion during field maintenance — a practical safeguard in multi-drive enclosures where several 531X board variants may be present simultaneously.

System Integration Benefits

• Deterministic Parameter Access: The hardware serial bus provides fixed-latency read/write cycles to drive parameter registers, eliminating the timing variability inherent in PC-based USB or RS-232 adapters. This is critical when programming drives during live commissioning where parameter changes must take effect within defined time windows.
• Zero-Software Dependency: The programmer board operates as a standalone hardware interface. No PC, driver installation, or software license is required for field parameter adjustments, reducing commissioning time and eliminating software compatibility issues in the field.
• Fault Transparency: Direct access to the drive’s fault history buffer allows maintenance personnel to retrieve diagnostic data without interrupting the drive’s operational state, supporting condition-based maintenance strategies.
• Firmware Integrity Assurance: Block-level CRC verification during firmware uploads prevents partial or corrupted firmware from being committed to drive memory, protecting against the most severe class of drive failure — uncontrolled behavior due to corrupted control code.
• ESD Resilience in Harsh Environments: The YM2 board-level TVS protection and improved ground plane design extend reliable operation into environments with elevated electrostatic discharge activity, including dry-climate manufacturing facilities and high-speed web-handling lines.
• Reduced Commissioning Risk: Mechanical connector keying prevents cross-installation errors in multi-board drive enclosures, a common source of board damage during maintenance in facilities without strict part-number control procedures.
• Backplane Power Efficiency: The board draws power exclusively from the drive backplane’s regulated +5 VDC rail, imposing no additional load on the drive’s main power supply. This is relevant in fully populated drive enclosures where backplane power budgets are constrained.
• Long-Term Serviceability: As a discrete, field-replaceable module, the 531X135PRGAYM2 allows the programmer interface function to be restored without replacing the entire drive control board assembly, significantly reducing repair cost and downtime for drives that remain in service beyond their original design life.

Quality Assurance & Global Logistics

Every GE 531X135PRGAYM2 unit supplied by siemensplc.com is sourced from traceable supply chains — authorized distributors, verified OEM surplus channels, and certified industrial component suppliers. New units are supplied in original GE packaging with full manufacturer documentation. Each unit undergoes incoming inspection including visual examination for counterfeit indicators (board markings, component date codes, solder quality, and connector condition) before entering inventory.

Refurbished units, where applicable, are subject to functional testing on a 531X Series compatible test fixture that exercises the full parameter read/write cycle, fault buffer access, and connector integrity verification. Test records are available upon request.

All boards are shipped in anti-static (ESD-safe) bags with foam cushioning inside rigid outer packaging, compliant with JEDEC JESD625 handling standards for electrostatic-sensitive devices. Export documentation, including commercial invoice, packing list, and certificate of origin, is prepared for all international shipments from our logistics hub in Xiamen, China.

Standard international transit times from Xiamen: 3–7 business days via DHL Express / FedEx International Priority to most destinations in Europe, North America, Southeast Asia, and the Middle East. Expedited same-day dispatch is available for orders confirmed before 14:00 CST. All shipments are fully insured and tracked from dispatch to delivery.

A 12-month warranty applies to all genuine new units from the date of shipment. Warranty coverage includes replacement or full refund for units confirmed defective under normal operating conditions. Our technical team provides pre-sales cross-reference validation and post-sales installation support at no additional charge.
