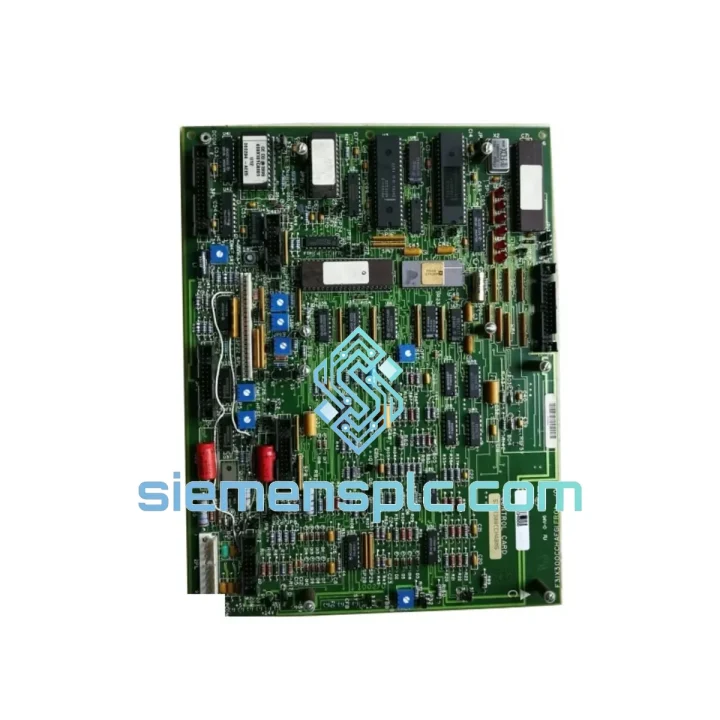

GE 531X301DCCAGG2 Drive Control Processor Board

GE 531X301DCCAGG2 — Stop the Clock on Your Downtime. Ship Today.

Every minute a drive is down, the losses compound. A stalled rolling mill, a tripped compressor, a halted conveyor — the 531X301DCCAGG2 control processor board is the single point of failure that can bring an entire production line to its knees. We stock it. We test it. We ship it the same day you call. From our Xiamen warehouse to your plant floor, this is the fastest path back to full operation.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

The 531X301DCCAGG2 fails in predictable ways. Knowing the failure signature before you pull the board saves hours of guesswork on the floor.

Common Fault Codes That Point to This Board:

• Fault 11 / Fault 12 — Control Power Loss: The processor board draws regulated +5 V and ±15 V from the power supply board. If the drive trips immediately on enable with no load, measure these rails at the board connector before condemning the processor. A marginal power supply can mimic a dead processor board.
• Fault 21 — Watchdog Trip: The onboard watchdog timer resets if the processor fails to complete its scan cycle within the defined window. Intermittent Fault 21 events — especially after thermal cycling — indicate capacitor degradation on the processor board. Sustained Fault 21 on cold start is a hard board failure.
• Fault 33 — Encoder Loss / Speed Feedback Fault: The 531X301DCCAGG2 processes encoder quadrature signals directly. Before replacing the board, verify encoder cable shielding and termination. A floating shield on a long encoder cable will inject noise that the processor interprets as signal loss.
• Fault 47 — Communication Loss (Inter-module Bus): Check backplane connector seating first. Oxidized gold fingers on the board edge connector are a common cause in high-humidity environments. Clean with isopropyl alcohol and reseat before condemning the board.
• No Display / No Response on Operator Panel: If the drive powers up but the operator panel is blank and no fault code is displayed, the processor board has likely failed to boot. This is a hard replacement scenario.

Replacement Procedure — Field Notes:

• Step 1 — De-energize and lock out: Full LOTO on the drive cabinet. Verify DC bus discharge (measure across DC bus capacitors — wait for <50 V before touching any board).
• Step 2 — Document DIP switch positions: The 531X301DCCAGG2 carries DIP switches that configure analog input scaling, encoder pulse count selection, and communication address. Photograph or transcribe every switch position before removal. The replacement board ships in factory default — you must replicate the original configuration exactly.
• Step 3 — Note jumper settings: Beyond DIP switches, check for any jumper blocks on the board. Common jumpers control tachometer input range (0–10 V vs. 0–5 V) and enable/disable of specific feedback channels. These are easy to miss and will cause immediate fault on first enable if wrong.
• Step 4 — Handle with ESD precautions: This board contains CMOS logic vulnerable to electrostatic discharge. Use a grounded wrist strap and anti-static mat. Do not slide the board across any surface without ESD protection.
• Step 5 — Firmware version check: If your drive system has been through a firmware update cycle, confirm the replacement board’s firmware revision matches the existing system. Mismatched firmware between the processor board and gate driver boards can cause erratic behavior or immediate fault. Contact us — we can source boards pre-loaded with specific firmware revisions where available.
• Step 6 — First enable sequence: After installation, do not immediately run the drive at full speed. Enable in local mode with zero speed reference. Verify all feedback signals are reading correctly on the operator panel before transferring to remote/auto control.

Reliability in Harsh Conditions

The GE 531X platform was designed for continuous-duty industrial environments — not climate-controlled server rooms. The 531X301DCCAGG2 processor board reflects that design philosophy.

Vibration: The board’s component layout and conformal coating (where applied) are engineered to withstand the mechanical vibration profiles common in steel mill, mining, and heavy manufacturing drive cabinets. Through-hole components on critical signal paths reduce the risk of solder joint fatigue under sustained vibration that surface-mount-only designs are susceptible to.

Thermal Cycling: Industrial drives experience significant thermal cycling — cold starts in winter, sustained high-load operation in summer. The 531X301DCCAGG2’s electrolytic capacitors are rated for extended temperature ranges, though capacitor degradation remains the primary long-term failure mechanism in boards that have been in service for 10+ years. Our tested surplus units are bench-verified for capacitor ESR before dispatch.

Humidity and Contamination: Conformal-coated variants of the 531X301DCCAGG2 provide resistance to condensation and airborne particulates common in paper mills, food processing, and coastal industrial facilities. If your environment is particularly aggressive, specify this requirement at inquiry — we will confirm coating status of available stock.

EMI Resilience: The processor board’s signal routing and grounding architecture are designed to reject the common-mode noise generated by the drive’s own power conversion stage. Proper cabinet grounding and cable separation remain the installer’s responsibility — a well-grounded cabinet dramatically extends board service life.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with daily DHL and FedEx Express departures to every major industrial region worldwide.

• Same-Day Dispatch: Orders confirmed and paid before 14:00 CST are packed and handed to the carrier the same business day. No exceptions, no excuses — your downtime clock is running.
• DHL Express Worldwide: Transit times of 2–4 business days to Europe, North America, Southeast Asia, and the Middle East. Real-time tracking from pickup to delivery.
• FedEx International Priority: Available for destinations where FedEx maintains a service advantage. We select the faster carrier for your specific destination at no additional decision cost to you.
• Export Documentation: Commercial invoice, packing list, and certificate of origin are prepared as standard. For regulated industries requiring additional documentation (material certification, test reports), advise at order placement.
• Customs Clearance: We declare accurately and completely. HS code 8537.10 is applied for control boards. DAP (Delivered at Place) terms available for customers who prefer to manage their own import clearance. DDP available for select destinations — inquire.
• Emergency Freight: For true production-critical emergencies, we can arrange next-flight-out courier freight. Contact us directly on WhatsApp for real-time coordination: +86 18359268345.
