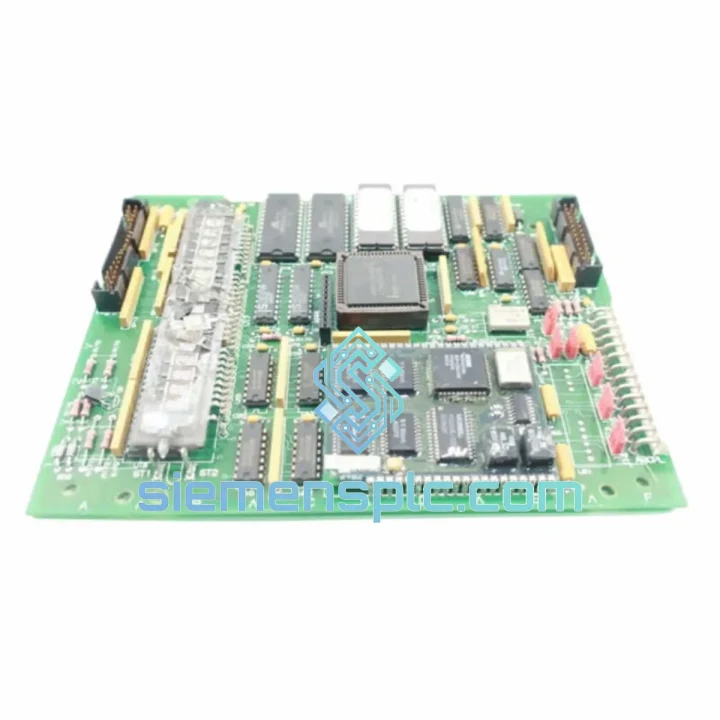

GE 531X306LCCBCG3 Drive Control Board – 531X Series

GE 531X306LCCBCG3 Drive Control Board: Control Loop Architecture and Procurement Strategy for 531X Series VFD Systems

The 531X306LCCBCG3 is the main logic control board within GE’s 531X Series variable-frequency drive platform. It occupies the central position in the drive’s closed-loop control hierarchy — receiving speed reference commands, processing feedback from encoder or tachometer inputs, executing the PWM modulation algorithm, and issuing gate firing signals to the power bridge. Every torque transient, every speed ramp, and every protective trip decision passes through this board. Its functional integrity is not peripheral to drive performance; it is the drive’s computational core.

The 531X Series was deployed extensively across heavy industrial sectors — steel rolling mills, paper and pulp lines, mining hoists, oil and gas compressor trains, and water treatment pump stations — from the 1990s through the 2000s. Many of these installations remain in active service. GE’s transition away from the 531X platform to successor drive architectures has not eliminated the installed base; it has created a sustained demand for verified spare boards in a market where OEM channel availability is structurally constrained. siemensplc.com maintains the 531X306LCCBCG3 as a priority line item in its GE drive spare portfolio, sourced through documented industrial surplus channels and subject to functional verification before dispatch.

Real-time Stock & RFQ: [email protected] | WhatsApp: +86 18359268345

Technical Parameters

Hardware Logical Analysis

The 531X306LCCBCG3 implements a multi-layer hardware design that reflects the engineering constraints of high-power industrial drive environments. Several aspects of its architecture are worth examining in detail for engineers evaluating the board’s suitability for continued service or replacement planning.

PWM Generation and Timing Precision: The board’s DSP executes the space-vector PWM algorithm within a fixed interrupt service routine, with the PWM carrier frequency and dead-time parameters stored in non-volatile memory. The G3 revision introduced refined dead-time compensation logic compared to earlier revisions, reducing low-speed torque ripple in applications with high-inertia loads — a relevant distinction for rolling mill and hoist applications where speed regulation at low RPM is a process requirement, not merely a performance preference.

Fiber-Optic Gate Command Isolation: Gate firing commands to the IGBT power bridge are transmitted via fiber-optic links rather than copper signal traces. This architecture provides galvanic isolation between the logic-level control domain and the high-voltage power domain, eliminating the common-mode voltage coupling path that is the primary failure mechanism for gate drive circuits in high-dV/dt switching environments. The fiber-optic interface also eliminates ground loop currents between the control board and the firing board — a significant EMC advantage in drive cabinets where the DC bus voltage can reach 690 V or higher.

Analog Signal Conditioning and EMC Design: Current feedback signals from the drive’s Hall-effect or shunt transducers pass through differential amplifier stages with common-mode rejection ratios designed to suppress the switching noise floor generated by the IGBT bridge. The PCB layout separates analog signal routing from digital clock traces using ground plane segmentation, with the analog and digital ground planes joined at a single star point to prevent digital switching currents from injecting noise into the analog measurement chain. This layout discipline is directly relevant to the board’s ability to maintain accurate current regulation in the presence of the high-frequency EMI generated by the drive’s own switching operation.

Encoder Interface Signal Integrity: The quadrature encoder input stage includes line receiver ICs with differential input architecture, providing rejection of common-mode noise on long encoder cable runs — a practical necessity in mill and mining environments where encoder cables may run 20 to 50 meters from the motor to the drive cabinet. The G3 revision’s encoder interface is specified for input frequencies up to the maximum speed of the target motor, with hardware filtering to suppress cable-induced glitches that would otherwise generate false position counts and corrupt the speed feedback signal.

Non-Volatile Parameter Storage: Drive configuration parameters — speed reference scaling, current limits, acceleration/deceleration ramps, and protection thresholds — are stored in on-board EEPROM. The G3 revision’s memory map is not fully backward-compatible with G1 boards; parameter migration requires the GE drive commissioning tool and the target drive’s parameter backup file. This is a practical constraint that procurement teams should document before authorizing a revision substitution.

System Integration Benefits

• Deterministic Control Loop Execution: The interrupt-driven DSP architecture guarantees fixed-period execution of the speed and current regulation loops, independent of communication bus activity or diagnostic polling — a prerequisite for stable closed-loop performance in high-dynamic-response applications.
• Fiber-Optic Isolation Eliminates Ground Loop Faults: The galvanic isolation between control and power domains removes the most common failure path for control boards in high-voltage drive environments, extending mean time between failures in installations with poor cabinet grounding practice.
• Integrated Fault Logging: The board maintains a fault history buffer in non-volatile memory, recording fault code, timestamp, and operating conditions at the time of each trip event. This log is accessible via the serial diagnostic port and provides the data needed for root-cause analysis without requiring oscilloscope capture during a live fault event.
• Configurable Protection Thresholds: Overcurrent, overvoltage, undervoltage, and overtemperature trip levels are software-configurable within the GE parameter set, allowing the protection envelope to be matched to the specific motor and load characteristics of each installation without hardware modification.
• Encoder Loss Detection: The board implements hardware-level encoder signal monitoring with a configurable loss-of-feedback trip, preventing uncontrolled motor acceleration in the event of encoder cable failure — a critical safety function in hoist and crane applications.
• Serial Diagnostic Transparency: The RS-232/RS-485 port provides real-time access to internal process variables — speed reference, speed feedback, torque current, flux current, DC bus voltage, and heatsink temperature — enabling condition monitoring without interrupting drive operation.
• Drop-In Mechanical Compatibility: The G3 board retains the same PCB outline, connector positions, and mounting hole pattern as G1 and G2 revisions, allowing physical installation without cabinet modification. Electrical and firmware compatibility must still be verified against the specific drive BOM.
• Reduced Commissioning Time on Replacement: When replacing a failed board with a unit sourced from siemensplc.com and pre-loaded with the correct firmware revision, parameter restoration from a backup file via the serial port typically completes in under 30 minutes — minimizing the window between board installation and return to production.

Quality Assurance & Global Logistics

Every 531X306LCCBCG3 unit offered through siemensplc.com passes through a structured intake and verification process before it is listed or dispatched.

• Genuine Parts Only: Units are sourced exclusively from decommissioned plant inventories, authorized surplus dealers, and documented industrial supply networks. Boards of unverifiable origin are rejected at intake without exception.
• Visual and Functional Inspection: Each board is examined for burnt components, PCB trace damage, connector pin corrosion, and solder joint integrity. Boards that pass visual inspection are bench-tested against reference drive configurations where test infrastructure permits.
• Revision and Firmware Verification: The hardware revision suffix and firmware version are confirmed and documented for each unit. Buyers receive this information prior to shipment to support compatibility verification against their drive BOM.
• ESD-Safe Packaging: Anti-static bags, foam-lined rigid outer cartons, and moisture barrier packaging are standard for all PCB shipments. Cartons are labeled with electronic component handling instructions.
• Xiamen Customs Compliance: All exports are declared through Xiamen Customs with accurate HS code classification, correct commercial valuation, and complete documentation packages suitable for import clearance in any destination jurisdiction.
• 12-Month Warranty: All dispatched units carry a 12-month warranty from the confirmed shipment date — covering functional failure under normal operating conditions. This warranty period is double the 90-day terms common in the secondary industrial parts market and reflects the confidence placed in the inspection and test process applied to each unit.
• Multi-Currency Payment: USD, EUR, CNY, HKD, and GBP accepted via T/T bank transfer, Letter of Credit, and PayPal — accommodating the payment workflows of procurement departments across Asia-Pacific, Europe, the Middle East, and the Americas.

Xiamen’s position as an international logistics hub provides direct air freight access to global hub airports including Hong Kong, Singapore, Dubai, Frankfurt, and Los Angeles, with typical transit times of 3 to 7 business days for air freight to most industrial markets. Sea freight connections serve major ports across Southeast Asia, the Middle East, Europe, and North America. For customers requiring consolidated shipments — multiple drive boards, power supplies, and control components in a single consignment — our Xiamen facility provides consolidation and repackaging services, reducing per-unit freight cost and simplifying import clearance at the destination port.
