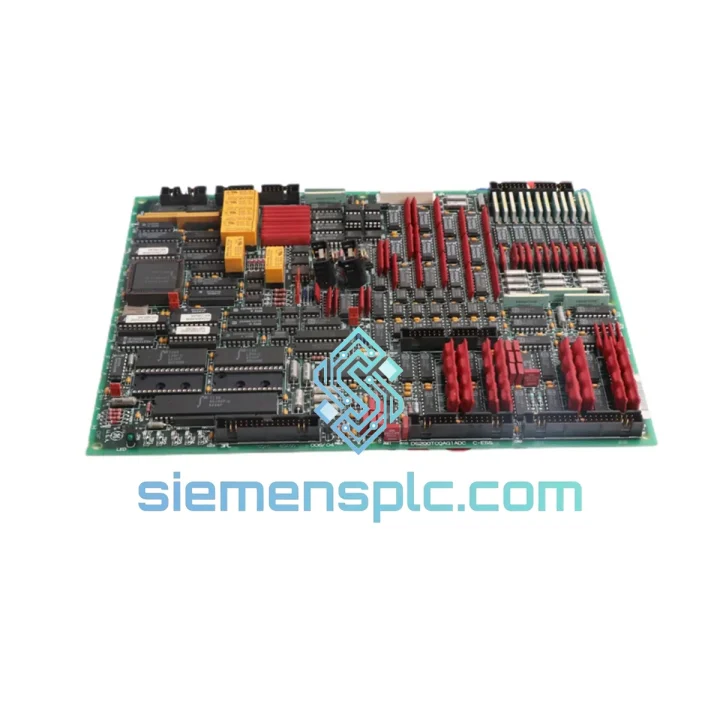

GE DS200TCQRG1AFC Relay Output Board

DS200TCQRG1AFC Relay Output Board: Stop the Bleed — Get Your Turbine Back Online Now

Every hour a GE Mark VI turbine sits offline costs real money. Whether you’re running a combined-cycle power plant, a gas compression station, or a petrochemical process turbine, an unplanned trip caused by a failed relay output board is not a maintenance event — it’s a financial emergency. The DS200TCQRG1AFC is the relay interface board that controls trip, alarm, and permissive outputs in the Mark VI VME I/O rack. When it fails, the entire protection and control chain breaks. There is no workaround. You need the exact board, tested and shipped fast.

We stock the DS200TCQRG1AFC in Xiamen and ship globally via DHL and FedEx Express. Most orders clear our warehouse within 24 hours of payment confirmation. If your plant is down right now, stop reading and contact us immediately.

URGENT REQUIREMENT? Contact: [email protected] | WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After ten years of field work on Mark VI systems, the DS200TCQRG1AFC shows up in failure investigations more often than most engineers expect. Here’s what you need to know before you pull the board and before you install the replacement.

Common Failure Signatures:

• Spurious turbine trips with no process cause: The relay contacts on the TCQRG board can develop intermittent opens due to coil fatigue or contact oxidation, especially in humid coastal environments. The Mark VI will log a relay output fault or a contact feedback mismatch. Check the diagnostic screen in ToolboxST under the I/O module status — if you see relay coil drive faults on the TCQR slot, the board is the prime suspect.
• Alarm outputs stuck ON or OFF: Internal relay driver ICs on the board can fail in a latched state. This is often misdiagnosed as a wiring fault. Before chasing field wiring, swap the board in a controlled test window and observe whether the fault follows the board or stays with the rack slot.
• Intermittent permissive failures during startup sequences: The DS200TCQRG1AFC handles permissive relay logic that gates turbine startup. A degraded board may pass self-test but fail under load during the actual startup sequence. If your turbine trips consistently at the same startup step, isolate the relay output associated with that permissive and trace it back to the TCQRG board.

Replacement Procedure — Key Steps:

• Step 1 — Confirm rack slot assignment: Before removing the failed board, document the exact slot position in the Mark VI I/O rack. The TCQRG boards are slot-specific in most rack configurations. Photograph the rack label and the board’s position.
• Step 2 — Check firmware revision compatibility: The DS200TCQRG1AFC has multiple firmware revisions (suffix letters A, B, C, etc. in the part number). The AFC suffix indicates a specific hardware revision. Confirm your ToolboxST configuration file references the correct board revision. Mismatched firmware can cause the controller to reject the board or generate persistent I/O faults.
• Step 3 — No DIP switch or rotary address setting required: Unlike some older GE I/O boards, the DS200TCQRG1AFC uses automatic slot addressing via the VME backplane. There are no DIP switches to set. The board self-identifies its slot position on power-up. Do not confuse this with the rack address jumpers on the rack chassis itself — those remain unchanged.
• Step 4 — Power down the I/O rack before swapping: The Mark VI I/O racks are not hot-swap capable for relay output boards. Coordinate with your control room to take the affected I/O rack offline. Verify that the turbine is in a safe state before proceeding.
• Step 5 — Post-installation verification: After installing the replacement DS200TCQRG1AFC, power up the rack and check ToolboxST for any I/O module faults. Run a relay output test from the diagnostic interface to verify each relay contact operates correctly before returning the turbine to service.
• Step 6 — Firmware download if required: If the replacement board has a different firmware version than the failed unit, ToolboxST will prompt a firmware download. Allow this to complete fully before attempting a turbine start. Interrupting a firmware download can brick the board.

Common Fault Codes to Reference:

• IOPACK Fault / Relay Output Board Fault — logged in the Mark VI event log when the TCQRG board fails self-test
• Contact Feedback Mismatch — relay commanded ON but feedback reads OFF, or vice versa; indicates contact failure or board fault
• Module Not Responding — VME communication loss to the TCQRG slot; check backplane connector seating before condemning the board

Reliability in Harsh Conditions

The DS200TCQRG1AFC was engineered for the environments where turbine control systems actually live — not a clean server room, but a gas turbine enclosure where ambient temperatures swing from sub-zero winter startups to 55°C summer peaks, where vibration from the turbine itself is constant, and where humidity from coastal or offshore locations attacks every exposed connector and PCB surface.

GE designed the Mark VI TCQR relay boards with conformal coating on the PCB to resist moisture ingress and corrosion. The relay contacts are rated for industrial switching duty cycles, not light commercial loads. The VME backplane connectors use gold-plated contacts to maintain signal integrity over years of thermal cycling. Every unit we ship has been inspected for conformal coating integrity, connector condition, and relay contact resistance before it leaves our facility.

For installations in particularly aggressive environments — offshore platforms, tropical coastal plants, high-vibration compressor stations — we recommend requesting our enhanced inspection report, which includes relay contact resistance measurements and insulation resistance testing. Ask our team when you place your order.

Global Express Logistics

Our warehouse is located in Xiamen, Fujian Province, China — one of the most logistics-efficient export hubs in Asia, with direct access to DHL, FedEx, and UPS international express networks. When your turbine is down, the last thing you need is a parts supplier who takes three days to generate a shipping label.

Here is exactly how our fulfillment process works:

• Order confirmation to dispatch: Once payment is confirmed, your DS200TCQRG1AFC is pulled from stock, inspected, ESD-packaged, and handed to the courier within 24 hours. For urgent orders confirmed before 14:00 CST, same-day dispatch is available.
• Packaging: The board ships in a rigid anti-static foam-lined box with moisture-barrier inner packaging. Outer carton is double-walled corrugated for impact protection during air freight handling.
• Courier options: DHL Express (typically 2–4 business days to Europe, Middle East, Southeast Asia; 3–5 days to the Americas), FedEx International Priority (similar transit times with strong coverage in North America and Australia).
• Customs documentation: We prepare a full commercial invoice with accurate HS code classification, packing list, and certificate of origin. For customers in countries with import duty exemptions or special trade agreements, we can provide additional documentation to support your customs clearance.
• Tracking: A tracking number is sent to your email within 2 hours of dispatch. We monitor shipments actively and will proactively contact you if any customs delay or courier exception occurs.
• Delivery confirmation: We follow up after delivery to confirm the board arrived in good condition and to support your installation if needed.

We have shipped Mark VI boards to power plants in Germany, Saudi Arabia, Indonesia, Australia, Brazil, and across the United States. If your country is not listed, contact us — we ship to over 60 countries.
