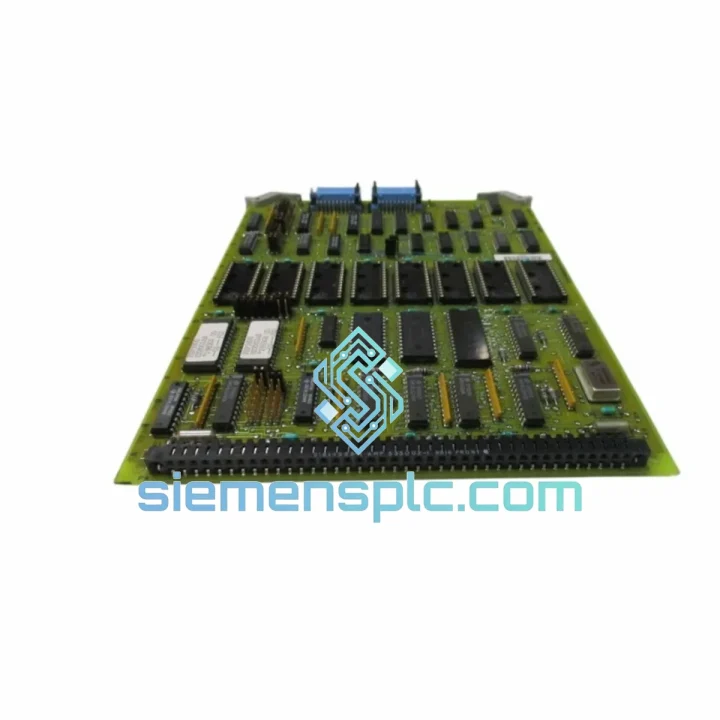

GE DS3800HXPD1C1E I/O Expander Board

DS3800HXPD1C1E Down? Every Minute of Turbine Downtime Costs You — We Ship Today

When a Mark IV Speedtronic panel throws a fault and your gas turbine trips offline, the clock starts immediately. Lost generation capacity, idle crews, contractual penalties — the financial bleed is real and it compounds by the hour. The GE DS3800HXPD1C1E I/O Expander Board is one of the most failure-prone cards in aging Mark IV chassis, and sourcing a verified replacement fast is the only way to stop that clock. We stock it. We test it. We ship it from Xiamen the same day you confirm your order.

This is not a listing page. This is a recovery tool. If your turbine is down right now, skip to the contact block below and send us your PO number. We will handle the rest.

URGENT REQUIREMENT?
📧 Email: [email protected]
📱 WhatsApp: +86 18359268345

Quick Technical Datasheet

Troubleshooting & Replacement Tips

After handling DS3800HXPD1C1E failures across multiple Frame 6 and Frame 7 sites, here are the failure patterns and replacement pitfalls that actually matter in the field:

Most Common Failure Modes

• Analog input drift / signal freeze: The most frequent complaint. Thermocouple or RTD channels start reading static values or drift outside expected range. The Mark IV processor logs a CARD FAULT or I/O MISMATCH alarm. Root cause is usually degraded multiplexer ICs or failed op-amp stages on the input conditioning circuit. Swapping the board resolves it immediately — no calibration required if the replacement is the same revision.
• Discrete output failure: Solenoid valve or relay commands stop executing. The processor sends the signal but the field device does not respond. Check the output driver transistors on the expander board first before chasing wiring faults. This failure mode is common on boards that have been in service for 15+ years in high-vibration environments.
• Intermittent backplane communication errors: The Mark IV logs COMM LOSS or BOARD NOT RESPONDING faults that clear on reset. This is almost always the edge connector — either oxidized contacts on the board or worn card cage guides causing micro-arcing. Clean the edge connector with isopropyl alcohol before condemning the board. If the fault persists after cleaning, the board is the culprit.
• Protection trip contribution: If the DS3800HXPD1C1E participates in a 2-of-3 voting protection loop and one channel fails, the system may trip on a false protective action. Identify which I/O channels are in the voting logic before pulling the board — you may need to temporarily bypass the protection in the Mark IV configuration to avoid a nuisance trip during replacement.

Replacement Procedure — Key Steps

• Step 1 — Confirm revision match: The DS3800HXPD1C1E suffix (C1E) denotes a specific hardware revision. Verify the replacement board carries the same suffix. Mixing revisions within a Mark IV chassis can cause I/O address conflicts or protection logic mismatches.
• Step 2 — Power down the card cage: The Mark IV does not support hot-swap on I/O expander boards. Shut down the affected card cage section before extraction. Confirm with the control room that the turbine is in a safe state.
• Step 3 — Document wiring before disconnection: Photograph or sketch the terminal board wiring connected to this expander board. Mark IV terminal boards are labeled, but field modifications over decades of service often deviate from the original drawing set.
• Step 4 — Seat the replacement firmly: The Mark IV card cage edge connector requires positive seating pressure. A partially seated board will cause intermittent faults that are difficult to diagnose. Use the card ejector levers to ensure full engagement.
• Step 5 — Power up and verify I/O: After restoration, navigate to the Mark IV diagnostic display and verify all channels on the expander board are reading correctly. Cross-check against the P&ID for each signal. Do not return the turbine to service until all channels are confirmed healthy.
• Step 6 — No firmware loading required: The DS3800HXPD1C1E is a hardware I/O board — it carries no user-programmable firmware. The Mark IV processor automatically recognizes the board on power-up via the backplane addressing scheme. No configuration tool is needed post-replacement.

Reliability in Harsh Conditions

The DS3800HXPD1C1E was engineered for continuous duty in gas turbine enclosures — environments that would destroy consumer-grade electronics within weeks. The board’s design heritage reflects GE’s understanding that turbine control hardware must survive conditions that are fundamentally hostile to electronics.

The PCB substrate uses a high-Tg laminate rated for sustained elevated temperatures, resisting delamination in enclosures where ambient temperatures regularly exceed 50°C during summer operation. Conformal coating on the component side provides a barrier against humidity ingress and condensation — a critical feature for coastal power plants and offshore platforms where salt-laden air accelerates corrosion on unprotected boards.

Vibration is the silent killer of I/O boards in turbine applications. The DS3800HXPD1C1E’s through-hole component construction — rather than surface-mount — provides superior mechanical bond strength at solder joints under sustained vibration loads. GE’s original design specification called for vibration testing per MIL-STD-810 equivalent profiles, and field service history across thousands of installed units confirms the design holds up across multi-decade service lives when maintained correctly.

Every unit we ship has been bench-tested under powered conditions with simulated backplane loading. We do not ship boards that have only passed visual inspection. If a board cannot demonstrate correct I/O channel response on the test bench, it does not leave our facility.

Global Express Logistics

Our dispatch hub is in Xiamen, China — a major international freight gateway with direct DHL and FedEx express lanes to every major industrial region globally. Here is how the logistics process works from the moment you confirm your order:

• Same-day dispatch: Orders confirmed before 14:00 CST ship the same business day. Orders confirmed after 14:00 CST ship the following morning. We do not batch shipments — every order is treated as urgent.
• Packaging: The DS3800HXPD1C1E is packed in anti-static shielding bag, foam-lined rigid carton, and outer corrugated box rated for international air freight handling. The board arrives at your site in the same condition it left our warehouse.
• Carrier options: DHL Express (standard for most destinations, 2–5 business days), FedEx International Priority (available on request, competitive for North America and Europe), and EMS for destinations where express couriers have limited coverage.
• Tracking: A tracking number is sent to your email within 2 hours of dispatch. We monitor shipments proactively and flag any customs holds or delivery exceptions before you need to ask.
• Export documentation: Commercial invoice, packing list, and Certificate of Origin are prepared for every international shipment. HS code classification is handled by our logistics team. For destinations requiring additional import documentation, contact us before ordering and we will prepare accordingly.
• Customs clearance: We declare goods accurately and at correct value. We do not under-declare to reduce duties — this practice creates customs holds that cost you more time than the duty savings are worth. Accurate documentation means faster clearance.
• Typical transit times: Southeast Asia 1–3 days, Middle East 2–4 days, Europe 3–5 days, North America 3–5 days, South America 4–7 days, Africa 4–8 days.

If your turbine is down and you need the board on-site by a specific date, tell us when you contact us. We will confirm whether the timeline is achievable before you commit to the order. We do not promise what we cannot deliver.
